30' 5-Stage Fixed Mount Light Mast w/ Explosion Proof Camera - Extends up to 30' - Collapses to 8.75' - Electric Winch - 4.0MP Resolution
30' 5-Stage Fixed Mount Light Mast w/ Explosion Proof Camera - Extends up to 30' - Collapses to 8.75' - Electric Winch - 4.0MP Resolution
Precio habitual
$32,464.00 CAD
Precio habitual
Precio de oferta
$32,464.00 CAD
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
| LM-30-8.75-5S-FM-ALU-EW-EXPCMR-IP-4MP-R1 - 30` 5 Stage Telescoping Light Tower | Quick Summary |
| Length: Telescoping from 8.75' to 30' | 8.75' to 30' Foot Light Mast |
| Weight: +-360 lb | Steel Construction |
| Capacity: 150 lb | Power Coated Finish |
| Materials: Steel | Removable Adaptor Plate |
| Finish: Powder Coated - Gloss Blue | 125 mph Wind Resistance |
| Operation: (1) 3,500 lb Electric Winch | Electric Operation |
| Cable: 3/16" Aircraft Cable | NRTL Certified to UL 508A |
| Mounting: 1/4" Thick, 18"x18" Base Plate | |
| Winch Voltage: 120 V or 240 V AC, 50/60 Hz | |
| Anchor Bolts: (6) 9/16" Bolts | |
| Shipping: Common Freight | |
| Shipping Dimensions: 9.5'-L x 4'-W x 5'-H | |
| Shipping Weight: +-1250 lb | |
| Options: Length - Mounting -Fixtures / Call Us for Special Requirements | |
| Â | Â |
| Camera Specs | Quick Summary |
| Dimensions: 8"-L x 6"-W x 13"-H | NRTL Listed for United States & Canada |
| Camera Weight: 8 lb, 7 lb w/o bracket | Class I, Divisions 1 & 2, Groups B, C, D |
| Total Watts: 5W (Max) | Class I, Zones 1 & 2, Groups IIB+H2, IIA |
| Power Source: PoE (802.3af) | Class II, Divisions 1 & 2, Groups E, F, G |
| Image Sensor: 1/3" Progressive Scan CMOS sensor | Class III, Divisions 1 & 2 |
| Signal System: NTSC | NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G) |
| Video Resolution: 4.0MP (2688*1520) | NRTL Listed to UL 508A |
| Frame Rate: Up to 20fps @ 2688*1520 resolution | NRTL Listed to UL 1203 |
| Compression Type: H.264, H.264 OVC, MJPEG, H.265, H.265+ | NRTL Listed to CSA C22.2 No 14, 25, 30 |
| Bit Rate: 32Kbps - 16Mbps | Main steam and two sub streams |
| Focal Length: 4mm | Capable of programming unique settings per stream |
| Max Field of View: 83° | ONVIF Profile S Certified |
| Shutter Speed: 1/3s to 1/10,000s | WDR (wide dynamic range) for auto adjusting |
| Min. Illumination: 0.01 lux (Color) / 0 lux (w/ Built-in IR) | |
| Infrared Light: Built-in | |
| Day/Night: True D/N w/Mechanical Cut Filter | |
| Digital Noise Reduction: 3D DNR | |
| Ethernet Interface: RJ45 | |
| Ethernet Speed: 10/100 | |
| Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP and more | |
| Remote Configuration: Yes | |
| Ambient Temperature Range: -22°F to +140°F | Special Orders - Requirements |
| Housing Materials: Copper-free Aluminum Alloy | |
| Lens Material: 3/8" Thick Tempered Glass | Toll Free:Â 1-800-369-6671 |
| Mounting: Adjustable Rear-Mounted Handle/Bracket | |
| Wiring Hub: (2) 3/4" NPT | |
| Shipping Weight: 13lbs |
Made in the USA

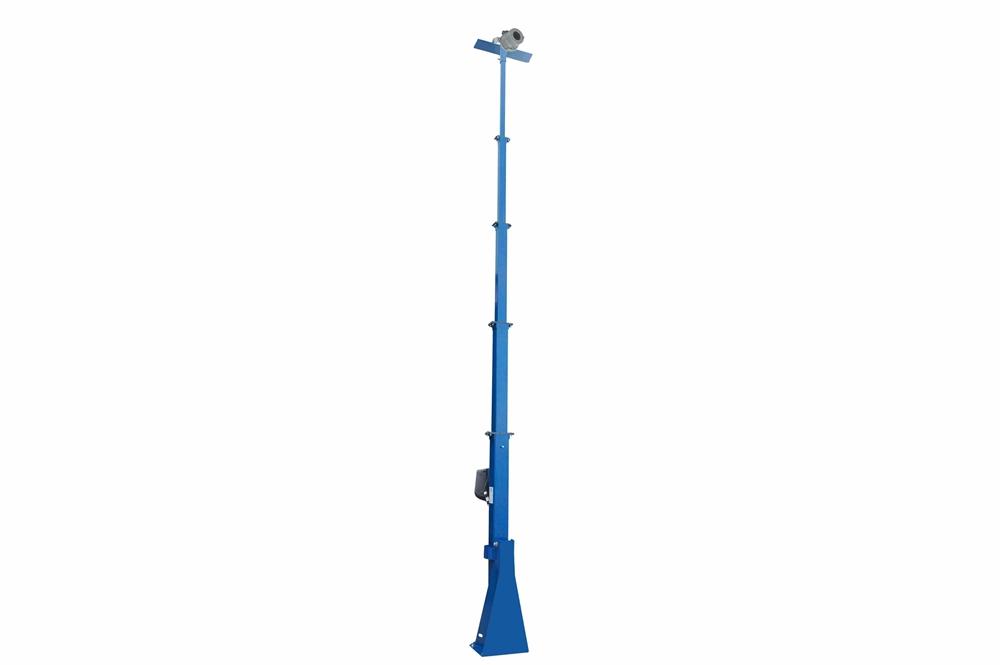

The LM-30-8.75-5S-FM-ALU-EW-EXPCMR-IP-4MP-R1 from Larson Electronics is a Fixed Mount 5-Stage Light Mast with Explosion Proof Camera and Electric Winch that provides a safe and effective way for operators to quickly deploy the camera to elevations of up to thirty feet. This light tower collapses down to 8.75 feet for easy transportation, features a articulating boom that allows for 360° of rotation, and a removable adaptor plate for storing the mounted camera when not in use. The camera on the LM-30-8.75-5S-FM-ALU-EW-EXPCMR-IP-4MP-R1 is a remote inspection camera specifically designed for observation in hazardous locations.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
This telescoping five stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 30' for effective coverage. This light boom can be extended to 30' for maximum area coverage and collapsed to 8.75' for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 6.6' in length and 6" by 6" by 3/16" thick, lower section 6.78' in length and 5" by 5" by 3/16" thick, middle section 6.93' in length and 4" by 4" by 1/8" thick, upper section 7.08' in length and 3" by 3" by 1/8" thick, and top section 7.58' in length and 2" by 2" by 1/8" thick. Each section has a 1' overlap. The mast is extended to its full height using an included 3,000 lb electric winch with 3/16" galvanized steel cable. Please note that the electric winch is NOT explosion proof.
Camera Features: The included camera on the LM-30-8.75-5S-FM-ALU-EW-EXPCMR-IP-4MP-R1 is a Network Explosion Proof Camera that features a built-in 1/3" progressive-scan CMOS image sensor that delivers up to 4.0MP resolution at 20 fps. The wide angle fixed lens with 83° field of view is designed to cover large areas and work spaces. This explosion proof camera provides a crisp and clear image for everything within the 83° focal area. Total distance is dependent on mounting height and angle. The explosion proof unit comes with built-in infrared lights.
This remote inspection camera utilizes 120dB true Wide Dynamic Range, 3D Digital Noise Reduction and a true day/night IR-Cut Filter Removal to produce clear images in variable and low light conditions. The camera automatically switches from full color to IR mode when visible light falls below a certain level.
Wiring: Link-up with the camera is achieved via a customer provided RJ45 Ethernet cable which is ran back to the customer provided DVR system mounted outside the hazardous location. Camera power is delivered via the same Ethernet cable using Power over Ethernet (PoE) technology. This not only increases flexibility in deployment, but also provides time and cost savings as well.
Our explosion proof cameras with Power over Ethernet (PoE) features enable data transfers and power to be passed through a single Ethernet cable that is usually a Cat 3/Cat 5 cable or better. There are several types of PoE, which come with their own respective standard and maximum power to port capabilities. The IEEE 802.3af PoE standard, with a voltage range of 44.0 - 57.0V, offers 15.4W of DC power for each port. The IEEE 802.3at PoE standard, with a voltage range of 50.0 – 57.0V, provides up to 30W of DC power per port, which is ideal for surveillance cameras, antennas and network access points. The IEEE 802.3bt PoE standard, with a voltage range of 50.0 – 57.0V, provides 60W of DC power for each port. In order to utilize PoE properly, the components, such as the receiving unit and sending device, must be PoE compliant.
Recording: To record the stream from this camera, a NVR (network video recorder) is required. Larson Electronics provides a line of explosion proof, hazardous location, and non-classified NVR's to work in conjunction with this explosion proof camera. This camera is live-view capable without any NVR system via remote access to the camera. Three streams are available, one main stream for recording and two sub streams for live viewing or additional resources. Each steam can be configured to different resolutions and frame rates.
|
