4000 Watt Skid Mount Five Stage Light Mast - Extends to 30 Feet - (4) 1000W Metal Halides - 30' to 8

4000 Watt Skid Mount Five Stage Light Mast - Extends to 30 Feet - (4) 1000W Metal Halides - 30' to 8

$37,578.00 CAD
$37,578.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
LM-30-8.75-5S-SM-4X1000W Skid Mount Light Tower Quick Summary
Lamp Type: Metal Halide Mast Summary
Lamps: (4) 1000 Watt Fixtures 8` to 30` Foot Light Mast
Total Watts: 4,000 Steel Construction
Total Lumens: 400,000  Power Coated Finish
Voltage: 240V AC Removable Mast Head
Mast Length: 8.75 feet - 30 feet 125 mph Wind Resistance
Capacity: 150 lbs Electric Operation
Materials: Steel (4) 1000lb outriggers w/ thru holes
Finish: Powder Coated - Gloss Blue
Operation: 2,500lbs Manual Winch
Cable: 3/16 Aircraft Cable Toll Free: 1-800-369-6671
Mounting: 48" x 48" x 48" Carbon Steel Cube Frame Intl: 1-214-616-6180
Shipping: Common Freight
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '

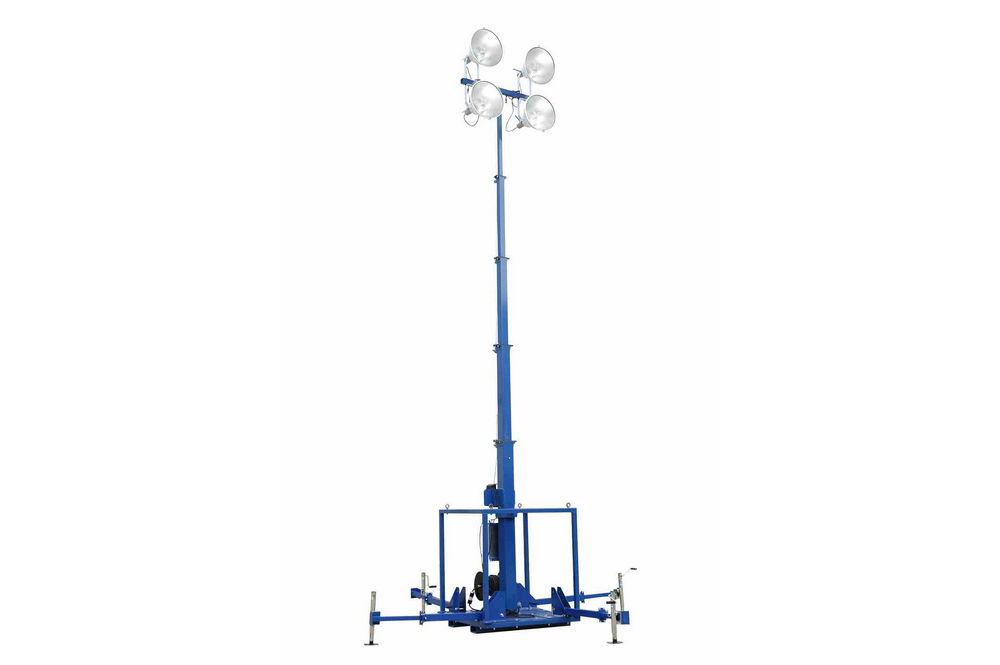

Made in the USA The Larson Electronics LM-30-8.75-5S-SM-4X1000W skid mount electric light plant provides a safe and effective way for operators to quickly deploy 4,000 watts of intense lighting to elevations up to thirty feet. The four 1000 watt metal halide lamps produce a wide spread of intense lighting, allowing this unit to effectively cover large work areas with high quality illumination. The light tower folds features a rotating boom that allows for 360° of rotation, a removable mast head for storing mounted equipment when not in use, and is mounted to a cube frame with skid pockets and 4-corner pick eyes for easy transportation.  *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-30-8.75-5S-SM-4X1000W five stage telescoping steel light mast with electric winch from Larson Electronics’ is designed to quickly and safely deploy 4,000 watts of intense metal halide lighting in locations where elevated illumination is needed for maximum area coverage. This light boom can be extended to 30` for maximum area coverage and collapsed to 8` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 5.92` in length and 6" by 6" by 3/16" thick, lower section 6.04` in length and 5" by 5" by 3/16" thick, middle section 6.19` in length and 4" by 4" by 1/8" thick, upper section 6.34` in length and 3" by 3" by 1/8" thick, and an top section 6.5` in length and 2" by 2" by 1/8" thick. Each section has a 1` overlap. The mast is elevated using an included 2,500 lbs manual winch with 3/16" galvanized braided cable.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Included with this light tower are four of our wet area suitable metal halide fixtures producing a combined total of approximately 400,000 lumens at 4,000 watts. These lamps have 19” reflectors and are constructed of aluminum with a clear tempered glass lens which is secured into place with a heavy duty gasket and single ring lock. These floodlights produce a wide flood light pattern capable of illuminating approximately 5 acres. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom. The towers and assembly is powder coated with glossy blue finish for corrosion resistances and aesthetics. This mast is bolted onto a 1/8" thick carbon steel plate via six 1/2" anchor bolts. The mast and controls are secured within a cube-style frame constructed of 2" by 2" by 1/8" thick and measuring 48" wide by 48" long by 48" tall. Four 1000lb fold-out outriggers with manual leveling jacks provide stability during deployment. Eight skid pockets allow this unit to be picked up from all four sides, and four-corner pick eyelets allow for stable deployment via crane operation. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the four metal halide fixtures.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. This light plant system can withstand winds up to 125+ mph when lowered to 8.75`, and up to 55 mph when fully extended. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand.  The mast is operated via push button switches within the cube frame, allowing operators to raise or lower the mast with the push of a button. Wiring is provided via 10` 10/3 SOOW cable terminated in a 20 amp L14-30 cord cap. All electrical components are UL/cUL listed. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-25 is another model that reaches to a length of 25 feet, with a 15 foot lower section and a 10 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
