2000W LED Fold Over Light Mast - 5-Stage 9-30' Mast - 240,000 Lumens - Metal Halide Replacement

2000W LED Fold Over Light Mast - 5-Stage 9-30' Mast - 240,000 Lumens - Metal Halide Replacement

$36,568.00 CAD
$36,568.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
LM-30-9-5S-4X500LTL-LED Five Stage LED Fold Over Light Mast Mast Summary
Lamp Type: Bridgelux® LED 9 to 30 Foot Light Mast
Lamps: (4) 500 Watt LED Fixtures Steel Construction
Total Watts: 2,000 (500W per lamp) Powder Coated Finish
Total Lumens: 270,000 (67,500 Per Lamp) Removable Mast Head
Luminous Efficiency: 135 Lm/W 125 mph Wind Resistance
LED Life Expectancy: 80,000 Hours Manual or Optional Electric Operation
Optics Efficiency: 98% - PMMA High Transmittance Optics Fold Over Mast Functionality
Led Drive %: 90%
Lighting Configuration: Flood Pattern LED Lamp Head Summary
Color Temp: 6000K High Output LED Lamps
Ambient Temp Rating: -40°C to +80°C Extreme Area Coverage
Power Factor: >97% Direct Replacement for (4) 1000W MH Towers
Lamp Voltage: Universal 120-277V AC, 50/60 Hz 2000W LED compared to 4000W MH
Mast Length: 9 feet - 30 feet 270,000 Total Lumen Output
Weight: +-600 lbs Dial-in Adjustability per light head
Materials: Steel 98% Transmission High Purity PMMA Optics
Finish: Powder Coated - Gloss Blue Multiple LED Banks for Heat Dispersion
Voltage: Universal 100-277 VAC, 50/60Hz 135 Lumens Per Watt Efficiency
Operation: (2) 2,500lbs Hand Winches, Electric Optional 70% Lumen Retention after 80,000 Hours
Cable: 3/16 Aircraft Grade Galvanized Steel Cable IP67 Waterproof LED Fixtures
Mounting: 1/4" thick, 13"x15" Six Bolt Hole Bracket Independently Adjustable Light Heads
Wiring: 45` SOOW Cable w/ Cord Cap
Shipping Weight: +-800 lbs
Shipping: Common Freight
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements Toll Free: 1-800-369-6671
Intl: 1-214-616-6180
' Product Overview '

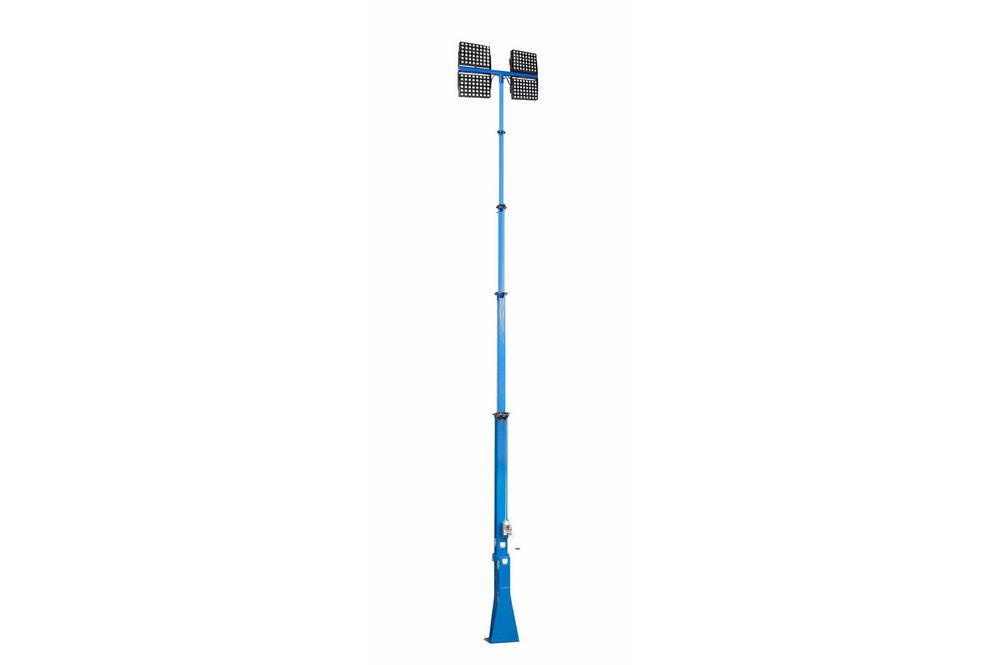

Made in the USA The LM-30-9-5S-4X500LTL-LED from Larson Electronics is a Fold Over 5-Stage Light Mast that provides a safe and effective way for operators to quickly deploy 2,000 watts of intense LED lighting to elevations up to thirty feet. Four 500 watt high output LED lights produce a wide spread of intense white light, equivalent to a 4,000 watt metal halide light tower, allowing this unit to effectively cover large work areas with high quality illumination. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-30-3S-4X500W-LED 2,000 watt telescoping fold over steel light mast with 1,000 watt metal halide equivalent LED light heads from Larson Electronics is designed to quickly and safely deploy 2,000 watts of intense LED lighting in locations where elevated illumination is needed for maximum area coverage. This telescoping five stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` for maximum area coverage and collapsed to 9.00` (including light heads) for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap. The mast is elevated using an included 1,000 lbs hand winch with 3/16" cable and extended to its full height using a second 1,000 lbs winch.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Lights: The lighting system on this articulating light mast is comprised of four our of 500 watt LED lamps producing 67,500 lumens of light each attached to the end of the telescoping pneumatic light boom. These floodlights produce a wide flood light pattern with a combined total of 2,000 watts and 270,000 lumens of light. The GAU-LTL-500W-LED lights are ideal replacements for fragile and hot running 1,000 watt metal halide lamps, offering increased durability, longer lamp life, and lower power consumption. The entire lighting assembly is connected to the power source via a 4-switch control box. Each light head is on an individual circuit and can be powered on or off independently of the other light fixtures. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours. In addition, should an LED failure occur, these LED flood lights are field serviceable. Each bank of six LEDs can be replaced with the fixture installed. This allows for the tower to stay in operation until repairs can take place, and eliminates the need to remove and disassemble the entire fixture for repairs. Durability: As well as unparalleled heat control, the GAU-LTL-500W-LED series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The Bridgelux® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,000 hours of use. We use these LED lights for applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.
The above image shows the comparison of the traditional 4,000 watt metal halide light plant such as our LM-30-3S-4X1000W (left) to the LM-30-9-5S-4X500LTL-LED LED light tower. The area being illuminated by each tower is 300` in length and 250` in width. Unlike the metal halide light plant, there are no hot spots with the LED plant. This high output LED light plant provides an even beam spread over the targeted work area without overcast, glare, light spillage, and wasted illumination. Color rendering is also increased with LED light plants, providing a more realistic night vision that more closely resembles natural daylight illumination.
Each floodlight is securely fastened to the mast head with an innovative trunnion style stainless steel mounting bracket that allows the light to be adjusted through 180° of vertical movement. The LED light head is secured to the mounting bracket with shock dampening rotating inserts. The insert provides precision aiming down to 1° while providing increased longevity to the LED fixture. To vertically adjust the unit after mounting, the user simply loosens the screws located on either side of the unit, moves it into the desired position, then re-tightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise mount positioning.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 12 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15 inch by 13 inch, 1/4 inch thick mounting base-plate which has been drilled to accept six 5/8" anchor bolts. A 52" long mounting plate constructed of 2" by 2" by 1/4" thick carbon steel is attached to the upper section of the mast which provides a strong and stable platform for the four LED fixtures. This light tower weighs approximately 600 lbs, can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5 feet long, 4 feet wide, 5 feet tall and weighs approximately 1200 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: With its easy deployment, the LM-30-9-5S-4X500LTL-LED is ideal for use in applications that require regular intensive cleaning and are exposed to a lot of vibration, dust, dirt, where abusive working conditions are encountered, temporary lighting, and construction sites.
