11' Five Stage Fixed Mount Telescoping Aluminum Light Mast - Extends to 11 Feet - Collapses to 4 Feet

LARSON ELECTRONICSSKU: PL3-LM-4-11-5S-FM-ALU
filler

Precio:
Precio de venta$9,750.00

Descripción

Specifications / Additional Information
LM-4-11-5S-FM-ALU - 11' Five Stage Fixed Aluminum Light Tower Quick Summary
Length: Telescoping from 5' to 11' 5' to 11' Foot Light Mast
Weight: 175 lb Aluminum Construction
Capacity: 100 lb Powder Coated Finish
Materials: Aluminum Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: 600 lb Manual Winch, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Aircraft Cable
Mounting: 1/4" thick, 18" x 18" Base Plate Special Orders - Requirements
Anchor Bolts: (6) 9/16" Bolts
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 54"L x 48"W x 36"H Intl: 1-214-616-6180
Shipping Weight: +-250 lb
Options: Length - Mounting - Fixtures / Call Us for Special Requirements
' Product Overview '

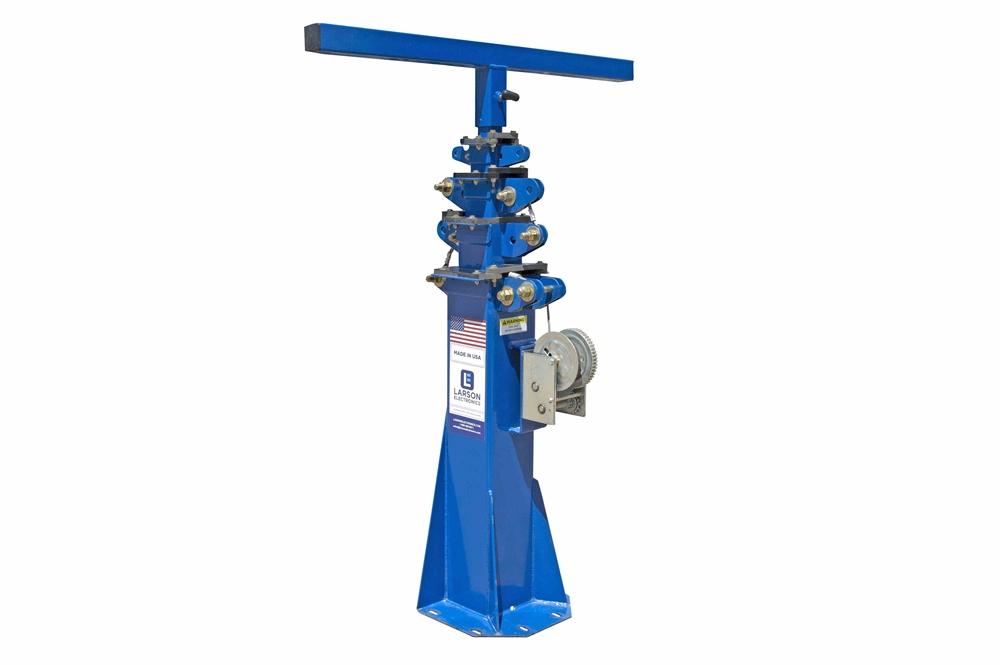

Made in the USA The LM-4-11-5S-FM-ALU from Larson Electronics is a Fixed Mount 5-Stage Aluminum Light Mast that provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to eleven feet. This light tower collapses down to four feet for easy transportation, features a articulating boom that allows for 360° of rotation, and is equipped with a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping five stage aluminum light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 11' for effective coverage. This light boom can be extended to 11' for maximum area coverage and collapsed to 5' for applications where a smaller footprint is required. The tower is constructed of square aluminum tubing with a base section 2.39' in length and 7" by 7" by 1/4" thick, lower section 2.65' in length and 5" by 5" by 1/8" thick, middle section 2.92' in length and 4" by 4" by 1/8" thick, upper section 3.19' in length and 3" by 3" by 1/8" thick, and top section 3.77' in length and 2" by 2" by 1/8" thick. Each section has a 1'+ overlap. The mast is extended to its full height using an included 600 lb hand winch with 3/16" galvanized steel cable.
Click Images to Enlarge
The LM series of telescoping towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 18" by 18" by 1/4" thick mounting base-plate which has been drilled to accept six 9/16" anchor bolts. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 4', the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand. This light tower weighs approximately 175 lb and can easily support and lift 100 lb fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 54"L x 48"W x 36"H and weighs approximately 250 lb. Larson Electronics can custom tailor these units to the customer's requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 600 lb hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
