9' to 40' Telescoping Light Mast - Stationary Eight Stage Light Tower - Manual Crank Winch
9' to 40' Telescoping Light Mast - Stationary Eight Stage Light Tower - Manual Crank Winch
LM-40-9-8S-FM Eight Stage Telescoping Light Tower | Quick Summary |
Length: 9.17` - 40` | 9.1` to 40` Light Mast |
Weight: +-1,200 lbs | Steel Construction |
Capacity: 1500 lbs | Power Coated Finish |
Materials: Steel | 125 mph Wind Resistance |
Finish: Powder Coated | Manual Hand Crank Operation |
Operation: 2,500 lbs Manual Hand Crank Winches | UL 508A |
Voltage: - | |
Cable: 1/4" Aircraft Cable | |
Mounting: 1/2" Thick, 28"x28" Six Bolt Hole Bracket | |
Anchor Bolts: (6) 1" Anchor Bolts (Not Included) | |
Shipping: Common Freight | Toll Free:Â 1-800-369-6671 |
Shipping Dimensions: 16.5`-L x 4`-W x 5`-H | Intl:Â 1-214-616-6180 |
Shipping Weight: +-2000 lbs | |
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements |

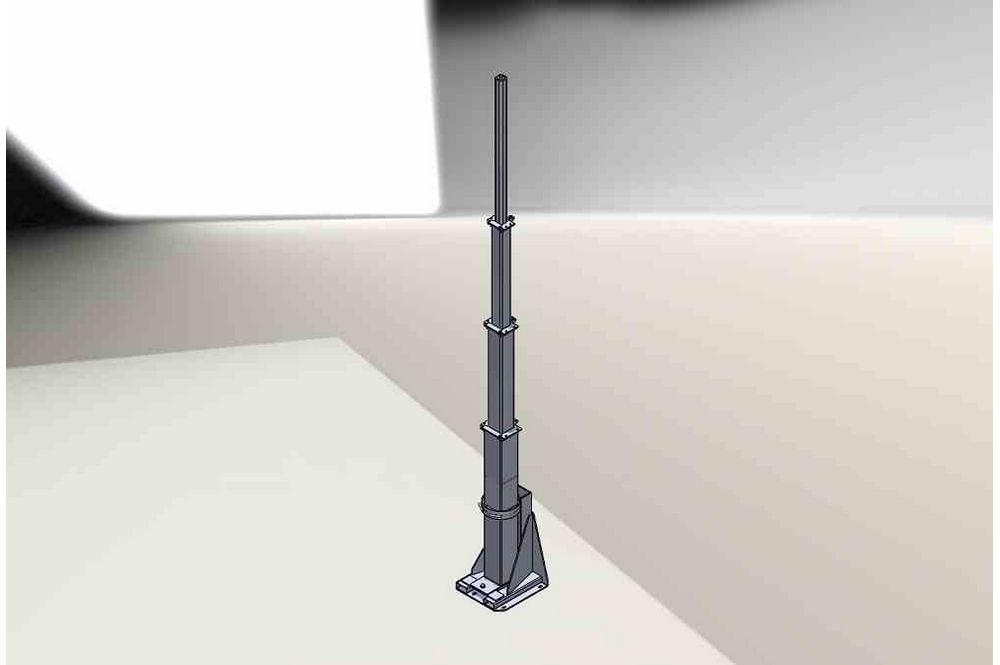

The Larson Electronics LM-40-9-8S-FM fixed mount 8-stage light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to forty feet. Equipped with 2,500 lbs hand crank winches for manual deployment, this stationary light tower features a rotating boom that allows for 360° of rotation and a removable mast head for storing mounted equipment when not in use.Â
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
This telescoping eight stage steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting, cameras and other electrical equipment in locations where such equipment must be elevated to heights up to 40` for effective coverage. The light boom can be extended to 21` for maximum area coverage and collapsed to 9.1` for applications where a smaller footprint is required. The mast is elevated using an included 2,500 lbs manual hand crank winch with 3/16" galvanized steel cable.
The tower is constructed of square steel tubing with a lower section 6.18` in length and 10" by 10" by 3/8" thick, second section 6.27` in length and 8" by 8" by 3/8" thick, third section 6.45` in length and 6" by 6" by 3/8" thick, and an upper section 8.45` in length and 4" by 4" by 1/2" thick. Each section has 2` of overlap.
|
