50' Telescoping Fixed Mount Light Mast - 13-50' - 5-Stage - 360° Rotating Boom - Electric Winch Operation
50' Telescoping Fixed Mount Light Mast - 13-50' - 5-Stage - 360° Rotating Boom - Electric Winch Operation
| LM-50-5S-FM-EW 50' 5-Stage Fixed Mount Telescoping Light Tower | Quick Summary |
| Light Mast Features | 13 to 50 Foot Light Mast |
| Length: 13 feet - 50 feet | Steel Construction |
| Weight: +-1,100 lb | Powder Coated Finish |
| Capacity: 150 lb | Removable Mast Head |
| Materials: Steel | 125 mph Wind Resistance |
| Finish: Powder Coated (Gloss Blue) or Galvanized | Electric Operation |
| Operation: (2) 2,500 lb Electric Winches | Fixed Mount |
| Cable: 3/16" Aircraft Cable | |
| Mounting: Fixed Mount - 1/4" thick, 13"x15" Six Bolt Hole Bracket | |
| Winch Voltage: 120 V or 240 V AC, 50/60 Hz | |
| Shipping: Common Freight | Toll Free:Â 1-800-369-6671 |
| Shipping Dimensions: 16.5'-L x 4'-W x 5'-H | Intl:Â 1-214-616-6180 |
| Shipping Weight: +-1500 lb | |
| Options: Length - Mounting - Fixtures / Call Us for Special Requirements |

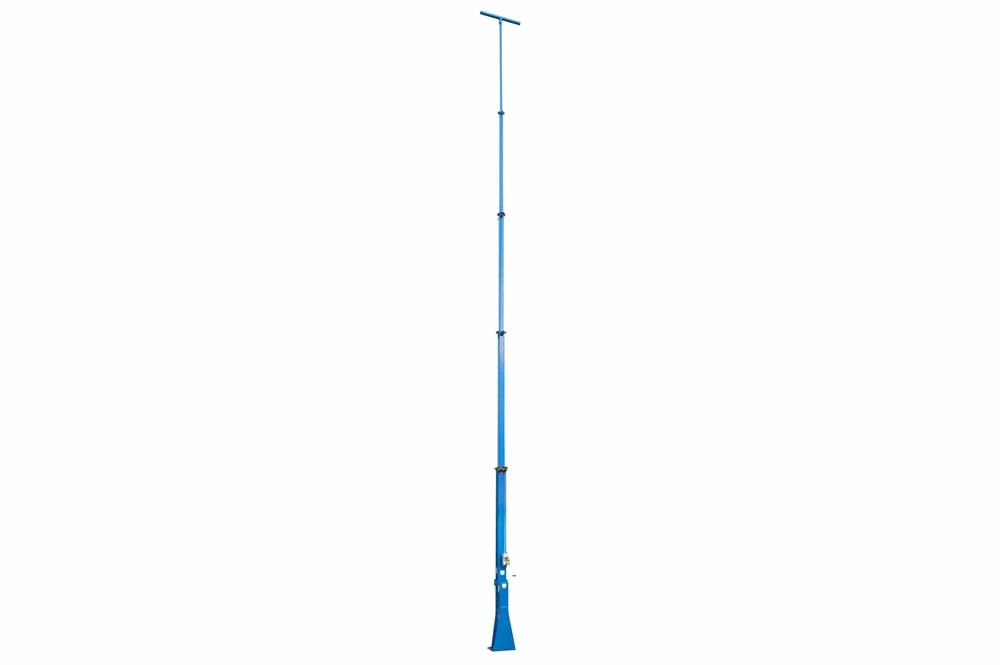

| Made in the USA The LM-50-5S-FM-EW from Larson Electronics is a Fixed Mount 5-Stage Light Mast that provides a safe and effective way to deploy lights, security cameras, and other equipment to elevations up to fifty feet for large area coverage. The tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and is equipped with a removable mast head for storing the mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Tower Features: This telescoping four stage fixed mount steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where the camera must be elevated to heights up to 50 feet for effective coverage. This light boom can be extended to 50 feet for maximum area coverage and collapsed to 13 feet for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 11.25' in length and 5" x 5" by 3/16" thick, lower section 11.25' in length and 4" x 4" by 1/8" thick, an upper section 11.25' in length and 3" x 3" by 1/8" thick, and a top section 11.75' in length and 2" x 2" by 1/8" thick. Each section has a 15-18" overlap. The mast is elevated using an included 2,500 lb electric winch with 3/16" cable and extended to its full height using a second 2,500 lb electric winch. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics, or galvanized for superior corrosion resistance. These fixed mount light masts are typically mounted to trailers or other stable surfaces via a 15" by 13" by 1/4" thick mounting base-plate which has been drilled to accept six 1/2" anchor bolts. A 44" wide and 2" by 2" by 1/8" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for mounted light fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 14 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand. The electric winch on this mast is offered in 120 V or 240 V AC, 50/60 Hz. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches. This light tower weighs approximately 1,100 lb and can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5 feet long, 4 feet wide, 5 feet tall and weighs approximately 1500 lbs. Larson Electronics can custom tailor these units to the customer's requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 2,500 lb hand winches included standard or optional electric winches. Suggested Applications: Security systems, remote surveillance, general locations, law enforcement, police, indoor/outdoor facilities, commercial establishments, monitoring, military, industrial sites and more. |
