60' Telescoping Light Mast - 12'-60' - Electric Winch - 7-stage Tower - (4) RG58 Coaxial Cables - Steel
60' Telescoping Light Mast - 12'-60' - Electric Winch - 7-stage Tower - (4) RG58 Coaxial Cables - Steel
Sold by: LARSON ELECTRONICS
| LM-60-12-7S-EW-24V-NYC-4XRG58 60' 7-Stage Telescoping Light Tower | Quick Summary |
| Length: 12 feet - 60 feet | 12 to 60 Foot Light Mast |
| Weight: +/- 1850 lb | Steel Construction |
| Max Capacity: 100 lb | Powder Coated Finish |
| Materials: Steel | Removable Mast Head |
| Finish: Powder Coated - Gloss Blue | 65 mph Wind Resistance |
| Operation: Electric Winch | Electric Operation |
| Winch Voltage: 24 V DC | |
| Mast Cable: Aircraft-grade Cable | |
| Mounting: 1/2" Thick, 24" x 24" 6 Bolt Hole Bracket | Special Orders - Requirements |
| Network Cables: (4) RG58 Coaxial Cables Inside Externally Mounted Coiled Cable (Nycoil Tubing) | |
| Shipping: Common Freight | Toll Free:Â 1-800-369-6671 |
| Shipping Dimensions: 16'L x 4'W x 3'H | Intl:Â 1-214-616-6180 |
| Shipping Weight: +/-2000 lb | Fax:Â 1-903-498-3364 |
| Options: Length- Mounting-Fixtures/ Call Us for Special Requirements |

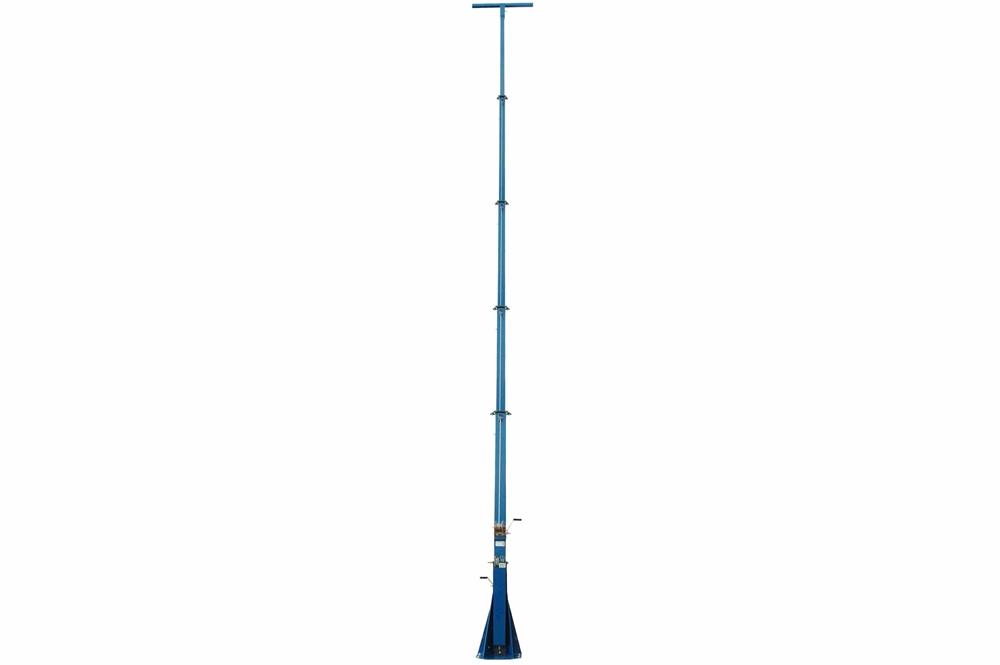

| Made in the USA The LM-60-12-7S-EW-24V-NYC-4XRG58 from Larson Electronics is a 7-Stage Steel Light Mast with Electric Winch that provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to sixty feet. This light tower collapses to 12 feet for easy transportation, as well as features a 24 V DC electric winch for deployment, four RG58 coaxial cables and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping seven stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 60 feet for effective coverage. This light boom can be extended to 60 feet for maximum area coverage and collapsed to 12 feet for applications where a smaller footprint is required. The tower is constructed of steel tubing with a base stage of 8" x 8" and top stage of 2" x 2". The mast is extended to its full height using an electric winch with steel cable. The winch operates on low voltage 24 V DC. Operators may access four RG58 coaxial cables, which are located inside an externally mounted coiled cable (nycoil tubing) around the mast. The cables terminate inside a junction box at the top of the tower. The cables all feature blunt cut ends and customers are required to terminate the network cables at both ends. Nycoil Cable Management: The nycoil tubing is secured to the mast with one cable support rod per stage. This keeps the cable from binding up with the mast when the mast is extended or retracted. A catch plate attached to the top stage of the mast prevents the nycoil tubing from dropping below the first stage when retracted, and prevents the tubing from being damaged when not in use. The LM series of towers are powder coated with glossy finish for corrosion resistance and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 6" x 6" base-plate which has been drilled to accept four 1/2 inch anchor bolts. A 44" wide and 1/8" thick mounting T head is attached to the upper section of the mast which provides a strong and stable platform for fixtures. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 12 feet, the mast can withstand winds up to 65 mph. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or . |
