Telescoping Light Mast - 25-60' Fold Over Three Stage Light Tower - (9) 1000W Metal Halide Fixtures
Telescoping Light Mast - 25-60' Fold Over Three Stage Light Tower - (9) 1000W Metal Halide Fixtures
Sold by: LARSON ELECTRONICS
| LM-60-3S-FM-9X1000W-MH - 60` Three Stage Telescoping Light Tower | Quick Summary |
| Light Head Information | 25` to 60` Foot Light Mast |
| Lights: (9) Metal Halide Fixtures | Steel Construction |
| Total Wattage: 9000W | Powder Coated Finish |
| Reflector Size: 19" | Removable Mast Head |
| Ballast Enclosure Rating: NEMA 3R | Manual or Optional Electric Operation |
| Ballast Type: Remote | NEMA 3R Remote Ballast Boxes |
| Beam Configuration: Flood | UL 1572 |
| Light Housing Material: Die-cast Aluminum | |
| Light Reflector Material: Aluminum | |
| Â | Â |
| Tower Information | |
| Length: Telescoping from 25` to 60` | |
| Tower Materials: Steel | |
| Operation: (1) 2,500lbs Manual Winches, Electric Optional | |
| Cable: 3/16" Aircraft Cable | |
| Mounting: 1/4" thick, 47.5" x 30" Base Plate | |
| Anchor Bolts: (8) 9/16" Bolts | Toll Free:Â 1-800-369-6671 |
| Finish: Powder Coated | Intl:Â 1-214-616-6180 |
| Finish Color: Gloss Blue | Fax:Â 1-903-498-3364 |
| Options:Â Length- Mounting-Fixtures/ Call Us for Special Requirements | E-mail:Â |
Made in the USA

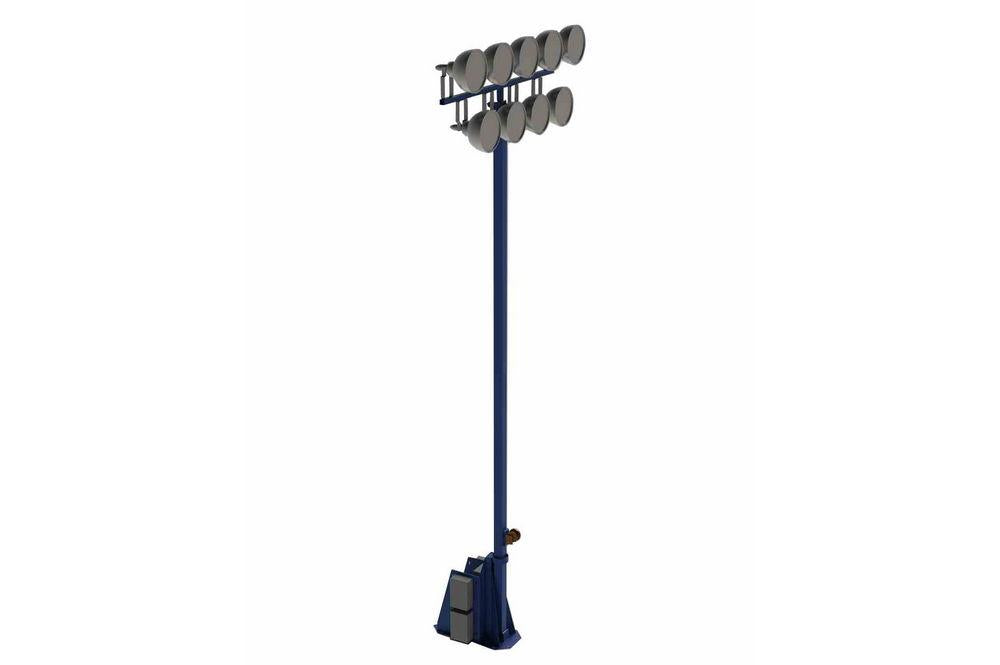

The LM-60-3S-FM-9X1000W-MH from Larson Electronics is a fold over 3-stage light mast with nine 1000W metal halide light fixtures to provide operators with a safe and effective way to quickly deploy 9000 watts of lighting power to large work areas to elevations of up to sixty feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation and a removable mast haed for storing the mounted lights when not in use.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
This telescoping three stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy 9000 watts of metal halide lighting power in locations where they must be elevated to heights up to 60` for effective coverage. This light boom can be extended to 60` for maximum area coverage and collapsed to 25` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base stage 21.52` in length and 5" by 5" by 3/16" thick, middle stage 21.63` in length and 3" by 3" by 1/8" thick, and an upper stage 22.04` and 2" by 2" by 1/8" thick. Each section has a 1` overlap. The mast is elevated using an included 1,000 lbs hand winch with 3/16" cable and extended to its full height using a second 1,000 lbs hand winch. The mast head on the LM-60-3S-FM-9X1000W-MH measures 9` long and 2.5" by 2.5" by 1/8" thick.
Light Head Information: The LM-60-3S-FM-9X1000W-MH 3-stage metal halide light tower is equipped with nine of the Larson Electronics 1000W metal halide light fixtures. These metal halide fixtures produce exceptional illumination using a 19" aluminum reflector housing that spreads a powerful flood pattern of high quality light over large areas. This fixture is equipped with a 1000 watt metal halide lamp which produces the intense illumination and good color rendering normally associated with these lamps. The metal halide lamp is secured within a separate die cast housing for strength and durability while a clear tempered glass lens provides protection for the lamp. U.L. wet area certification and the high power flood beam produced by this lamp makes it ideal for applications requiring illumination of large scale areas that may be subject to wet conditions.
|
||||||||||||||||||
|
||||||||||||||||||
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 47.5" by 30" by 1/4" thick mounting base-plate which has been drilled to accept eight 9/16" anchor bolts. A 9` wide and 2.5" by 2.5" by 1/8" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment.
This light tower weighs approximately 700 lbs and can easily support and lift 150 lbs fixtures. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches.
Suggested Applications: Temporary lighting, construction sites, and any other large area that requires ample lighting.
|
