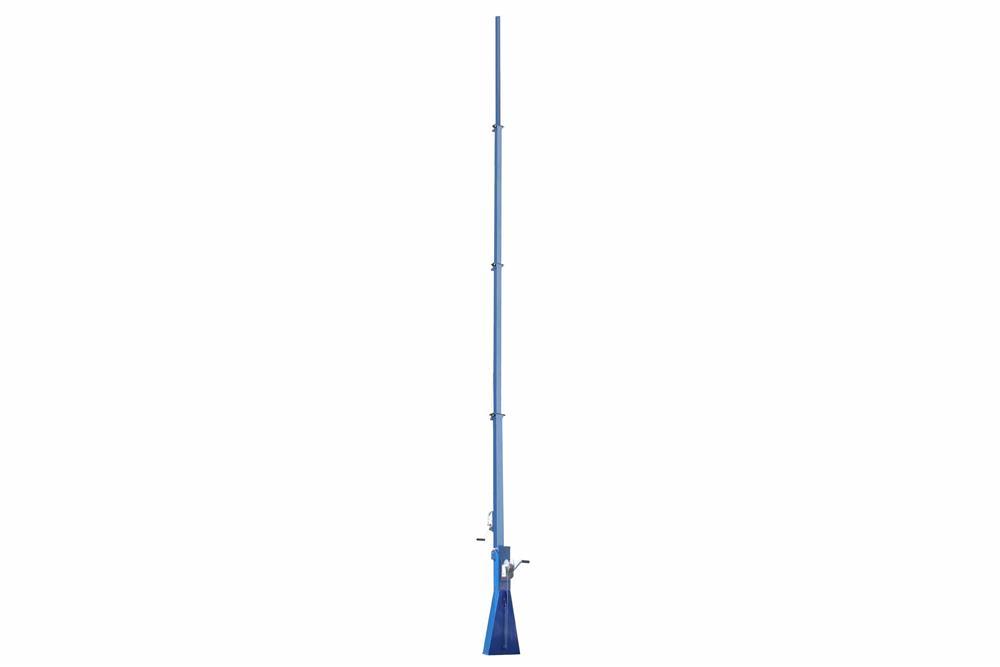

Telescoping Light Mast - 5'-11' Hydraulic Four Stage Light Tower - 360° Rotating Boom
Telescoping Light Mast - 5'-11' Hydraulic Four Stage Light Tower - 360° Rotating Boom
| LM-HA-11-5-4S-FM Four Stage Hydraulic Telescoping Light Tower | Quick Summary |
| Length: 5` (Retracted) to 11` (Extended) | 5 to 11` Light Mast |
| Weight: +-450 lbs | Steel Construction |
| Capacity: 150 lbs | Powder Coated Finish |
| Stages: 4 | Hydraulic Operation (Pump Not Included) |
| Materials: Steel | 125 mph Wind Resistance |
| Finish: Powder Coated - Gloss Blue | Â |
| Operation: Hydraulic | Â |
| Cable: 3/16" Galvanized Cable | |
| Mounting: 1/4" thick, 13"x15" Six Bolt Hole Bracket | |
| Shipping: Common Freight | Toll Free:Â 1-800-369-6671 |
| Shipping Dimensions: 10`-L x 4`-W x 5`-H | Intl:Â 1-214-616-6180 |
| Shipping Weight: +-1200 lbs | |
| Options: Length- Mounting-Fixtures/ Call Us for Special Requirements |
| This unit is Made In USA - Manufactured in Texas The Larson Electronics LM-HA-11-5-4S-FM 4-stage hydraulic fixed mount light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to eleven feet. This light tower folds over for easy transportation and features a rotating boom that allows for 360° of rotation. Hydraulic pump is not included with this product. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping four stage hydraulic steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 11 feet for effective coverage. This light boom can be extended to 11 feet for maximum area coverage and collapsed to 5 feet for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base stage that is 60 inches in length and 2.25 inches in diameter, a second stage that is 48 inches in length and 1.44 inches in diameter, a third stage that is 36 inches in length and 1.5 inches in diameter, and a top stage that is 24 inches in length and 1.44 inches in diameter. The mast is elevated using hydraulics (hydraulic pump not included). The base stage and middle stages are raised via a hydraulic ram. The top stage is then raised via a cable system that is triggered by the action of the hydraulic ram. No manual winch is required at any point of the elevation process which makes operation convenient and easy. | ||||||
|
||||||
| The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15 inch by 13 inch, 1/4 inch thick mounting base-plate which has been drilled to accept six 3/4 inch anchor bolts. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 5 feet, the mast can withstand winds up to 125 mph. This light tower weighs approximately 450 lbs, can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 10 feet long, 4 feet wide, 5 feet tall and weighs approximately 1200 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-30-3S is another model that reaches to a length of 30 feet, with a 14 foot lower section, 12 foot middle section, and a 8 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or . |
