77' Hydraulic Megatowerâ„¢ Light Plant - 33' Trailer - (20) 500W LED Fixtures - 1,350,000 Lumens

77' Hydraulic Megatowerâ„¢ Light Plant - 33' Trailer - (20) 500W LED Fixtures - 1,350,000 Lumens

Sold by: LARSON ELECTRONICS

$402,124.00 CAD
$402,124.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
LM-HLM65-16X500LTL-LED-TLR Trailer Mounted LED Megatowerâ„¢ Quick Summary
Trailer Specs Cold Weather Package Factory Installed
Materials: Steel Up to 43 Hours of Continuous Operation
Trailer Dimensions: 33`-L, 8`-W 33` to 77` Light Mast
Height (Mast Collapsed): 33`-H Hydraulic Aluminum Mast
Height (Mast Extended): 77`-H Steel Construction Trailer
Footprint (Outriggers Extended): 36` x 19`-11" Hydraulic Mast Operation
Hitch: Gooseneck (12" I-beam Construction) Powered Boom Deployment
Wiring: 7-Pin Flat High Output LED Lamps
Axles: (2) 10,000 lbs Dual Tandem Extreme Area Coverage
Suspension:  Tandem Dually Direct Replacement for (20) 1,500W MH Light Plants
Outriggers: (6) 6` x 12" x 12" I-Beams Retractable w/ (6) 7,000 lbs Manual Leveling Jacks 10,000W LED compared to 30,000W MH
Wheels: (8) 16" 5x4.5" Steel Rims 1,350,000 Total Lumen Output
Tires: (8) P235/80R16 Independently Adjustable Light Heads
Dial-in Adjustability per Light Head
Light Tower Specs: 98% Transmission High Purity PMMA Optics
Tower Length: 30` to 77` Multiple LED Banks for Heat Dispersion
Lamp Qty: 20 135 Lumens Per Watt Efficiency
Materials: Carbon Steel 70% Lumen Retention after 80,000 Hours
Finish: Galvanized Switched Breaker System per Lamp Head
Operation: Hydraulic IP67 Waterproof LED Fixtures
All Equipment Mounted on a 28` Trailer
Light Head Specs Steel Trailer w/ Industrial Grade Paint Finish
Lamp Type: LED Towable Height Under 13` w/ Light Heads
Total Wattage: 10,000W (500W per lamp) 6-Point Outrigger System
Total Lumens: 1,350,000 (67,500 per lamp) 10,000 lbs Leveling Jacks
Lighting Configuration: Flood Beam Pattern Gooseneck Hitch
Clearance Height of 8` 6"
System Specs
Voltage: 120/240V 1P, 120/208V 1P, 240V/120 3P, or 208V/120 3P
Amperage: 65A Max @ 208V 1P, 57.5A Max @ 240V 1P, 40A Max @ 208Y 3P, 36A Max @ 240V 3P
Wiring: Customer provided Toll Free: 1-800-369-6671
Shipping: Common Freight
Shipping Weight: Fax: 1-903-498-3364
Shipping Dimensions: 33`L x 9`W x 8.5`H E-mail:
' Product Overview '

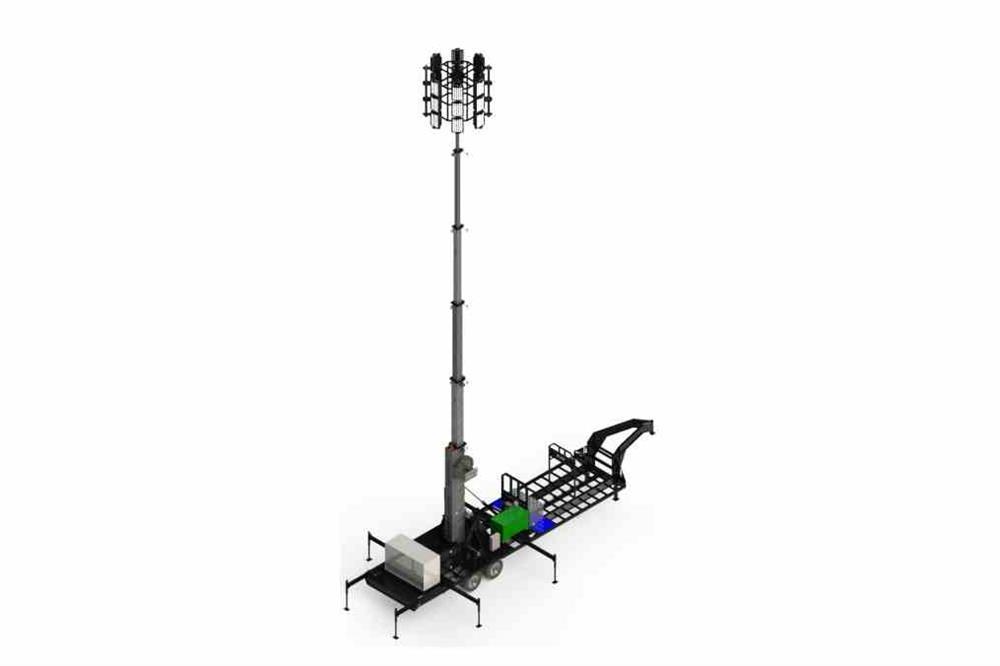

Made in the USA The LM-HLM65-16X500LTL-LED-TLR from Larson Electronics is a Trailer Mounted Hydraulic LED Megatowerâ„¢ that offers high output illumination and extreme durability in heavy-duty industrial applications. This trailer mounted fold over 7-stage hydraulic light plant provides a safe and effective way for operators to quickly deploy twenty 500-watt LED light heads to elevations above 65` (ground to mast head), reaching a total height of 77` (with 11` of light head assembly). This trailer mounted light tower features a choice of 120/240V or 120/208V single-phase or 240V/120 or 208V/120 three-phase power distribution panel with customer provided connection, depending on preference. This hydraulic light tower folds over for easy transportation, features a hydraulic ram upright assist, hydraulic mast and high output LED fixtures. The entire assembly is mounted onto a 33` dual tandem axle gooseneck trailer, allowing operators to transport this fold over boom from location to location. The LM-HLM65-16X500LTL-LED-TLR has been designed to hold steady through extreme condition and can be easily transported through any kind of rough terrain. This Megatower is a direct replacement for 1,000W metal halide light plants. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-HLM65-16X500LTL-LED-TLR is a towable, high-performance light tower package. This unit is equipped with a choice of 120/240V or 120/208V and single or three-phase power distribution panel with a customer provided connection to supply current to twenty, 500-watt LED lights producing 67,500 lumens each, for a combined total of 1,350,000 lumens. A hydraulic telescoping light mast elevates the LED lamps to heights above 65`. The hydraulic tower is capable of reaching heights up to 77` with the light head assembly, which measures 11` in height. They heavy-duty nature of this Megatower makes it ideal for mining-grade applications, as well as, large scale event illumination, construction, industrial operations, and anywhere a rugged mobile full power lighting system capable of extended operation is needed. This telescoping seven stage hydraulic light mast from Larson Electronics is designed to allow operators to quickly and safely deploy up to 10,000 watts of high intensity LED lighting in locations where illumination must be elevated to heights above 65` (from ground to mast head; 77` in total height with 11` light head assembly) for effective coverage. This light boom can be collapsed to 30` for applications where a footprint smaller is required. The tower is constructed of carbon steel tubing with 2` foot of overlap per section. The mast is elevated using an included hydraulic ram and extended to its full height using a second hydraulic system.
Click Images to Enlarge
A 90" wide by 132" tall and 2" by 2" by 1/4" thick steel mast head is attached to the upper section of the mast which provides a strong and stable platform for the twenty 480-watt LED light heads. Lights: The LM-HLM65-16X500LTL-LED-TLR Hydraulic LED Megatowerâ„¢ from Larson Electronics features twenty fixtures that each draw 500 watts, for a total fixture wattage of 10,000 watts. Each module produces 67,500 lumens at a color temperature of 5000K for an impressive lumen total of 1,350,000 lumens which provides operators with a superior lighting solution for even the most challenging areas to illuminate. To ensure even coverage of wide areas, the LED modules used on this hydraulic light plant are configured in Larson Electronics for even distribution pattern. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Durability: As well as unparalleled heat control, the LED lights used in the LM-HLM65-16X500LTL-LED-TLR also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +85° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. The heat-sink on the LED modules has been engineered to provide optimum heat dissipation. Each LED module has been sized for proper passive cooling to prevent premature failure of LEDs or color shifting and to eliminate the need for an active cooling system typically associated with high powered LED systems. Telescoping Boom: The hydraulic telescoping boom is constructed of carbon steel with a galvanized finish and extends to 65` in height from the ground to the mast head and 77` of total height with the light assembly (measures 11` in height). This boom is raised from and lowered to the folded position by a single hydraulic ram and extended or retracted by a second hydraulic system. Wiring/Controls: The LED light heads are grouped into banks of four. Each bank in wired into the NEMA 3R breaker control box at the base of the mast. Operators control the light heads via an on/off switched breaker per bank of five light heads. The hydraulics are also powered from within this breaker box. The mast elevation is controlled by a push button switch to operate the hydraulic ram allowing operators to raise the mast to the upright position. The vertical deployment is operated by a second push button switch allowing operators to extend it to its full 77` height or retract it to the collapsed height.
Click Photo to Enlarge
The above image show a side by side comparison of the WCDE-20-HLM65-20X500LTL-LED-WSM next to a 50` Pneumatic Megatower.
Trailer: The entire unit is mounted onto a four wheel, dual tandem axle trailer with 12" I-beam construction. Each axle is rated at 10,000 lbs and equipped with P235/80R16 tubeless tires and wheels. The rear axle is equipped with electric brakes. A gooseneck hitch system that extends to the truck bed, above the rear axle and the trailer, is available for secure hauling. Standard heavy duty safety chains are included. Overall length of the trailer is 33`. Six 7,000 lbs hand crank jacks are used for raising the trailer up off the ground, and four 7,000 lbs hand crank jacks mounted on extending outriggers are used for leveling and stabilizing the trailer assembly. Each of the four jacks are attached to a pivoting outrigger constructed of 6` by 6" by 6.3" steel I-beams. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 6` out from the side of the trailer for added stability. This light plant can withstand 35 mph winds when fully extended. When lowered to 30`, the mast can withstand 50 mph winds. When lowered to 33`, the mast can withstand wind speeds up to 95 mph with gusts of 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised. We offer a choice of finishing, equipped light heads, and with or without gensets. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment. Optional diesel generators and fuel cells can be equipped from factory, or retrofitted after purchase.
Click Images to enlarge.
The above images show a side by side comparison of the light output between our LED light plant and a traditional four lamp metal halide light plant. The left image shows the metal halide light plant raised to 30` and illuminating a 50,000 sq ft work area with four 1000 watt metal halide light fixtures. The right image shows the LM-HLM65-16X500LTL-LED-TLR light plant raised to 50`, illuminating the same 50,000 square foot work area with twenty 500 watt LED fixtures. Notice how the color and intensity of the work area is greatly improved when lit up by the LED fixtures.
Click Images to enlarge.
The left image above shows the light mast illuminating a 300,000+ square foot area. The yellow billboard in the image reaches 40 lux, while the fence at the tree line (500`+ away from the tower) reaches 35 lux. This image was taken from 50` behind the mast and at 100` above ground level. The image to the right shows the work space 75` in front of the mast, with the entire area work area reaching over 100 lux. The mast was extended to 35`. The left image above shows the same 300,000+ square foot area being illuminated. In the background you can see a vehicle with their headlights on, barely able to be seen in comparison to the LM-HLM65-16X500LTL-LED-TLR light plant. This image was taken at 80` to the right of the mast and 175` above ground level. The mast was extended to 35`. The image on the right is a Google Earth export of the physical area being illuminated, for scale purposes.
Cold Weather Package: The LM-HLM65-16X500LTL-LED-TLR is designed to withstand extreme cold environments and harsh winters. The hydraulic system is equipped with a de-icing system to prevent the hydraulic lines and system from freezing from moisture building within system. This de-icing system uses an environmentally friendly (non-toxic) fluid. All hydraulic lines are equipped with cold weather rated hydraulic hoses rated for -65°C and fitted with metallic hardware. All the hydraulic controls are housed within an insulated and weather tight enclosure. This hydraulic control box features 1/2" thick polystyrene foam insulation and heat trace. The hydraulic system features -65°C cold weather rated rubber hydraulic hoses with metallic fittings and a cold weather rated high viscosity hydraulic fluid. All electrical components are wired using cold weather rated SOOW cable with rated to -50°C that features high flexibility, and extreme abrasion, acid, oil, and water resistance even in sub-zero climates.
Click Photos to Enlarge
Suggested Applications: Mining, Temporary lighting, construction site illumination, outdoor event lighting, job site lighting and other applications that requires a source of illumination capable of covering a very large area effectively.
