29' Stainless Steel LED Light Tower - 11.5' to 29' - (6) 500W LED Lamps - Remote Control Light Heads

LARSON ELECTRONICSSKU: PL3-LM-SS-29-11.5-3S-6X500LTL-RCH
filler

Precio:
Precio de venta$81,580.00

Descripción

Specifications / Additional Information
LM-SS-29-11.5-3S-6X500LTL-RCH High Mast LED Boat Light - 3 Stages Quick Summary
Mast Specs 11.5` to 29` Light Mast
Tower Height: 11.5` to 29` 3 Stage LED Light Tower
Tower Folded: 7.50` (Height) 98% Transmission High Purity PMMA Optics
Stages: 3 Multiple LED Banks for Heat Dispersion
Operation: (2) 2,500lbs Hand Winches, Electric Optional 135 Lumens Per Watt Efficiency
Remote Control: Up, Down (Mast), Light Mast Head Rotation 70% Lumen Retention after 80,000 Hours
Mast Head Rotation: 360°, Tilting UL1012 Compliant
Materials: 304 Stainless Steel, SS Tubing/Hardware UL60950-1 Compliant
Finish: Powder Coated - Gloss Blue CE Certified
Mount: Surface IP67 Rated Waterproof
  (6) 500W LED Light Heads
LED Lamp Specs Control Box for LED Lamps
Lamp Type: CREE® LED
Voltage: 120-277V AC or 127-431V DC
Total Watts: 3,000W
Total Lumens: < FONT>405,000
Luminous Efficiency: 135 lm/w
Beam Configurations: 10° Spot, 24° Wide Spot, 38° Narrow Flood, 60° Flood, or 90° Wide Flood
LED Color Temperature: Cool White - 5500-6500K
LED Life Expectancy: 80,000 hours
Optics Efficiency: 98% - PMMA High Transmittance Optics
Amp Draw: 30A @ 120V, 15A @ 240V, 16.02A @ 277V
Ambient Temperature Range: -40°C to +80°C
Mount: Tower w/ SS Brackets
Tilt Range/Operation: +/- 75°; Remote
Wiring: 20` Whip w/ Blunt Cut End
Remote Control: On/Off, Grouped Lamp Operation, Elevation, Indication, Status Toll Free: 1-800-369-6671
Weight: - Intl: 1-214-616-6180
Shipping: Common Freight
Shipping Weight: -
' Product Overview '

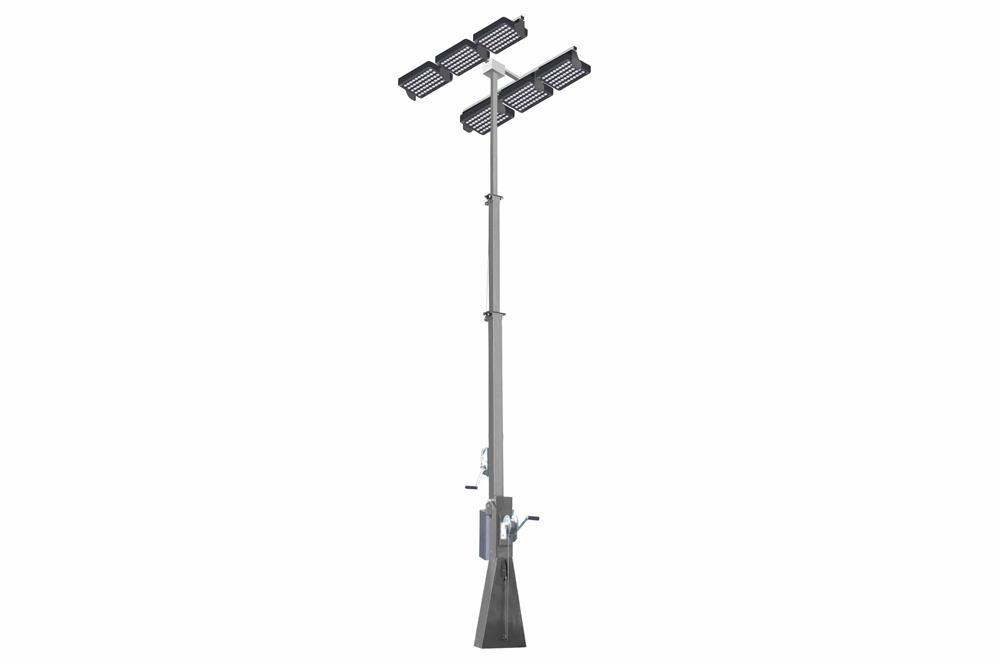

The LM-SS-29-11.5-3S-6X500LTL-RCH LED Light Tower from Larson Electronics offers intense illumination for marine environments, rescue operations, boats and more. This 3-stage unit can be extended to 29 feet, retracted to 11.5 feet and folded over to 7.5 feet for seamless storage. Six, 500-watt LED lamps are secured at the top of the tower, which provides 405,000 lumens of output. LED light head (tilt/rotation) and mast (up/down) operation is conducted using a remote control. The LM-SS-29-11.5-3S-6X500LTL-RCH from Larson Electronics is designed for large-scale illumination on boats and saltwater environments. Equipped with six LED light heads, the lighting system produces 405,000 lumens of high intensity light while drawing 3,000 watts. The mast can be extended to 29 feet for maximum area coverage and collapsed to 11.5 feet for applications where a footprint smaller is required. The 3-stage tower is constructed of square steel tubing and is elevated using two hand winches rated at 2,500 lbs. The 3-stage LED light mast is equipped with a base stage measuring 8.63` 2" x 2" x 1/8" thick, a 2nd stage measuring 8.73` 4" x 4 square tubing, 1/8" thick and a top stage measuring 9.27` 6" x 6 square tubing, 1/8" thick. Individually, the LED lamps feature fourty-eight CREE® high output LEDs producing 1,406 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 38° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights.
Click Photo to Enlarge
The LED lights are ideal replacements for fragile and hot running 1000 watt metal halide lamps. They offer low power requirements, high durability and a versatile mounting system that makes these LED light emitters a superior lighting solution for demanding applications where power and reliability is critical. The heavy duty design and high power of these LED lights also makes them suitable for a wide array of applications including but not limited to: high mast lighting, light towers, light plant LED retrofits, military, mining, industrial manufacturing, machine visioning, security and law enforcement, commercial structure illumination, sport complexes, billboards, race tracks, and parking lots to name a few. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours. Durability: As well as unparalleled heat control, the LM-SS-29-11.5-3S-6X500LTL-RCH series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The CREE® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,0000 hours of use. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.
The above image shows the comparison of the traditional (4) 1500 watt metal halides light fixtures mounted to a 30` light tower (left) to (4) LM-SS-29-11.5-3S-6X500LTL-RCH 500 watt LED light fixtures mounted to a 30` light tower. The area being illuminated by each tower is 300` in length and 250` in width. Unlike the metal halide light fixtures, there are no hot spots with these LED fixtures. This high output LED light fixture provides an even beam spread over the targeted work area without overcast, glare, light spillage, and wasted illumination. Color rendering is also increased with LED light plants, providing a more realistic night vision that more closely resembles natural daylight illumination.
Telescoping Boom/Controls: The telescoping boom is constructed of 304 stainless steel with a powder coated finish and stainless steel hardware/tubing. Capable of extending up to 29 feet and retracting to 11.5 feet, this boom is raised from and lowered to the folded position by two 2,500 lbs hand winches (electric optional). Up and down controls for the tower is facilitated by a remote, as well as 360° of mast head rotation when raised at full extension. The LED light heads are mounted at the top of the tower via stainless steel brackets. On standby, the LED lamps are facing down. Remote control for +/- 75° of tilting in both directions is available. Operators may also monitor the status of rotation, tilt and elevation remotely. A sturdy remote box enables individual and grouped on/off controls for the LED lamps. Wiring/Mount: The LED light tower comes with a 20-foot whip with a blunt cut end, which extends from the base of the unit. Operators can use this cable for hard-wiring connections to a preferred power source. The LED light heads are mounted at the top of the tower via stainless steel brackets. Included stainless steel hardware for saltwater environments are used to install the mast on boats. This light tower weighs approximately 650 lbs and is shipped via common freight carrier. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Applications: Boat lights, marine environments, rescue operations, portable illumination, law enforcement, security, monitoring and more.
