Five Stage Light Mast - 6.5' to 20' - Aluminum - Mount LED, HID, Halogen, Metal Halide Fixtures

LARSON ELECTRONICSSKU: PL3-LM-WM-20-6.5-5S
filler

Precio:
Precio de venta$6,434.00

Descripción

Specifications / Additional Information

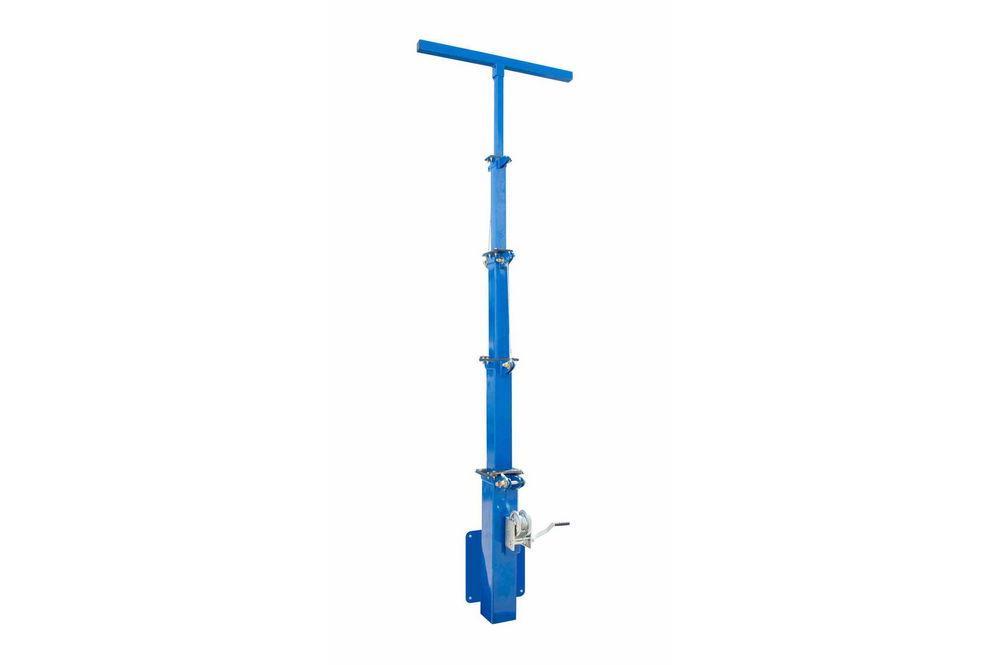

LM-WM-20-6.5-5S Five Stage Telescoping Light Tower Quick Summary
Length: Telescoping from 6.5` to 20` 6.5` to 20` Foot Light Mast
Weight: +-200 lbs Steel Construction
Capacity: 125 lbs Powder Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (1) 1,000lbs Manual Winch, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Aircraft Cable
Mounting: (1) Wall Mounting Bracket
Mounting Hardware: Not Included
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8`-L x 4`-W x 5`-H
Shipping Weight: +-375 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
Made in the USA The Larson Electronics LM-WM-20-6.5-5S wall mount 5-stage light mast winches provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to 20 feet. This light tower, which collapses to 6.5 feet, features a removable mast head for storing mounted equipment when not in use. The unit features a wall mount bracket with four predrilled mounting holes for improved stability. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping five stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 20` for effective coverage. This light boom can be extended to 20` for maximum area coverage and collapsed to 6.5` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base stage measurement stage of 6 x 6 x .1875 x 4.52`, fourth stage measurement of 5 x 5 x .188 x 4.83`, third stage measurement of 4 x 4 x .1875 x 5.15`, second stage measurement of 3 x 3 x .125 x 5.46` and a top stage measurement of 2 x 2 x .120 x 5.88`. Each section has a 2` minimum overlap. The mast is elevated by pressing down on the end of base stage, elevating the mast into the upright position. The mast is extended to its full height using an included 1,000 lbs hand winch with 3/16" galvanized cable.
Click Photo to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This light mast is mounted via a wall mounting bracket found near the bottom of the tower. The mounting bracket accepts four bolts. With a strong and durable wall mounting bracket used to secure the light tower, operators are left with a stable and durable light tower. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 6.5`, the mast can withstand winds up to 125 mph. This light tower weighs approximately 200 lbs and can easily support and lift 125 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 8` long, 4` wide, 5` tall and weighs approximately 375 lbs. Larson Electronics can custom tailor these units to the customer`s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winch included standard or optional electric winch.
Removable Mast Head 12Ft Mast Extended 1,000 lbs Hand Winch
Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
