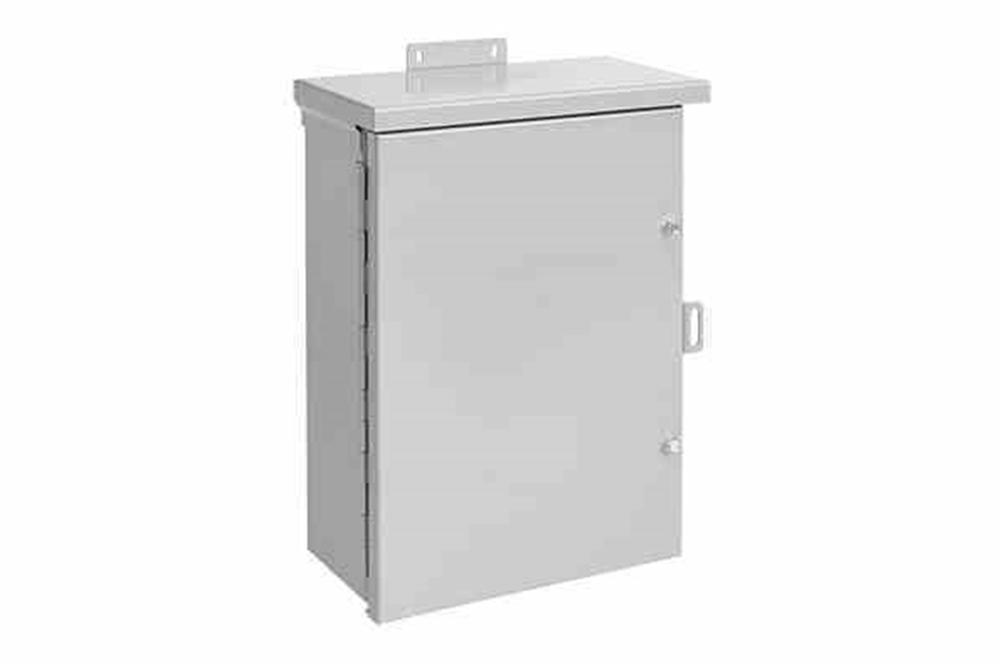

Solid-State Frequency Transformer - 480V 60Hz to 480V 50Hz - 3PH Delta - (3) Secondary Receptacles

LARSON ELECTRONICSSKU: PL3-MPD-BB3-TB-DE0DE-ZZ-1.E26-2.L26-H1
filler

Precio:
Precio de venta$19,082.00

Descripción

Specifications / Additional Information
MPD-BB3-TB-DE0DE-ZZ-1.E26-2.L26-H1 Solid-State Frequency Transformer Ratings
Line-In Cord: Not Included - Requires Minimum Use Wiring 60A Rated Cu @ [600V] (**Customer Provided**) Max Primary OCP: 60 A @ 480 V
Line-In Cord Cap: Not Included - Requires Minimum Use Device 60A @ [480V] (**Customer Provided**) Max Secondary Output: 60 A @ 480 V
Primary Voltage: 480 V AC, 3PH NEMA 3R Indoor Use
Primary Frequency: 60 Hz
Primary Panel: 30kW 480V 3PH 60A Phase Converter
Primary Breakers: N/A
Primary Protection: N/A
Primary Outlets: N/A
Transformer: N/A
Secondary Voltage: 480 V AC Delta 3PH
Secondary Frequency: 50 Hz
Secondary Panel: 480V 3PH 60A MLO N3R
Secondary Breakers: (2) 30A 3P MCB [250 V]
Secondary Outlets: (1) 460R7W IEC 60309 Pin & Sleeve [480V]; (2) L16-30R NEMA Twist-Lock [250V] Special Orders - Requirements
Secondary Protection: MCB Circuit Breakers
Form Factor: NEMA 3R Rated Hinged Enclosure
Mounting: Wall Mount
Dimensions: -
Weight: -
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }
The MPD-BB3-TB-DE0DE-ZZ-1.E26-2.L26-H1 from Larson Electronics is a Solid-State Frequency Transformer that is designed for frequency rectification in industrial locations. The transformer comes with an input frequency of 60 Hz and an output frequency of three-phase 50 Hz. This unit features a NEMA 3R rated wall mount hinged enclosure suitable for indoor use. The MPD-BB3-TB-DE0DE-ZZ-1.E26-2.L26-H1 can be used to accurately convert frequencies in industrial sites. This unit offers three-phase 480 V Delta, 60 Hz on the input side and three-phase 480 V Delta, 50 Hz on the output side. During operation, rectification is completed via IGBT. The frequency converter provides robust microprocessor control, true online double conversion and active input power factor correction. This solid-state frequency converter is equipped with several protective features, including overload, short circuit, over temp, instant power failure connection and alarm. For efficient operation, the unit features smart fan control and ultra high efficiency (98% in Smart Eco Mode). Operators are provided access to a panel, which houses various controls for meters. Available meter components include digital frequency meter, digital voltage meter, digital ammeter and digital watt meter. Receptacles: The features one IEC 60309 Pin & Sleeve receptacle and two L16-30R NEMA Twist-Lock receptacles on the secondary side that allow operators to connect 50 Hz equipment. Mounting: The MPD-BB3-TB-DE0DE-ZZ-1.E26-2.L26-H1 is secured inside a NEMA 3R rated wall mount hinged enclosure. Applications: Industrial facilities, laboratories, air compressor testing, power supply testing, motor equipment testing, quality assurance, lighting systems and more.
