Solid-State Frequency Transformer - 208V 60Hz to 120V 50Hz - 3PH Delta - (3) Secondary Receptacles
Solid-State Frequency Transformer - 208V 60Hz to 120V 50Hz - 3PH Delta - (3) Secondary Receptacles
| MPD-BB5-TB-DT0DT-ZZ-1.E35-2.L24-3.N16-1.N07-H1 Solid-State Frequency Transformer | Ratings |
| Line-In Cord: Not Included - Requires Minimum Use Wiring 100A Rated Cu @ [600V] (**Customer Provided**) | Max Primary OCP: 100 A @ 208 V |
| Line-In Cord Cap: Not Included - Requires Minimum Use Device 100A @ [208V] (**Customer Provided**) | Max Secondary Output: 100 A @ 208 V |
| Primary Voltage: 208 V AC, 3PH | NEMA 3R Indoor Use |
| Primary Frequency: 60 Hz | |
| Primary Panel: 22kW 208V 3PH 100A Phase Converter | |
| Primary Breakers: N/A | |
| Primary Protection: N/A | |
| Primary Outlets: N/A | |
| Transformer: 3KVA 208V to 120V 1PH | |
| Secondary Voltage: 120 V AC Delta 3PH | |
| Secondary Frequency: 50 Hz | |
| Secondary Panel: 208/120V 3PH 100A MLO N3R | |
| Secondary Breakers: (2) 30A 3P MCB [250V]; (3) 20A 2P MCB [250V]; (1) 15A 2P MCB [250V]; (1) 20A 1P MCB [125V] | |
| Secondary Outlets: (1) 4100R9W IEC 60309 Pin & Sleeve [250V]; (2) L15-30R NEMA Twist-Lock [250V]; (3) 6-20R NEMA SPLX [250V]; (1) 5-20R NEMA SPLX [125V] | Special Orders - Requirements |
| Secondary Protection: MCB Circuit Breakers | |

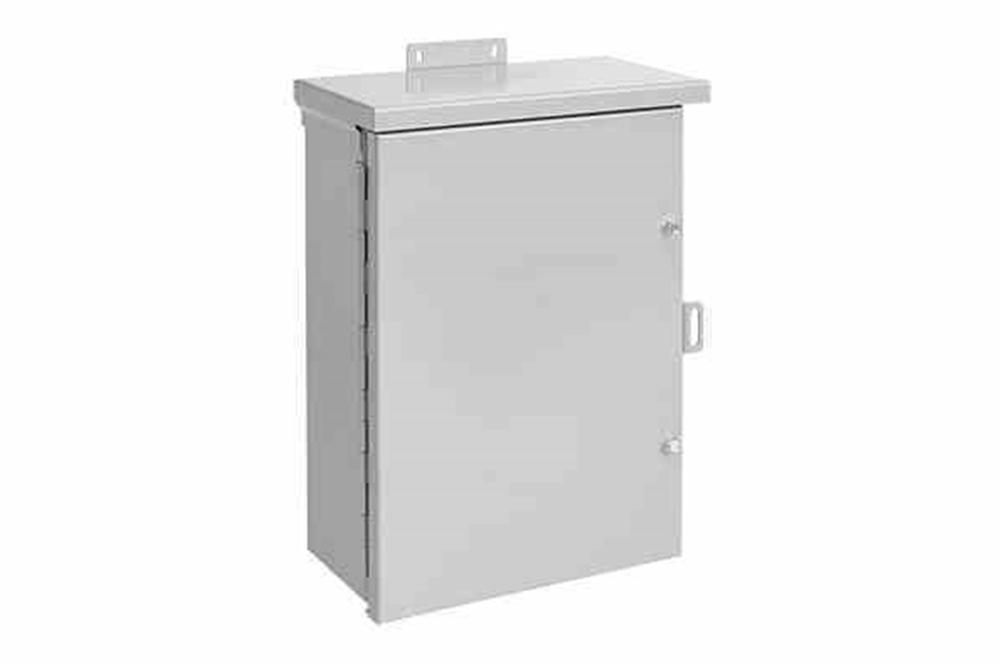

| Form Factor: NEMA 3R Rated Hinged Enclosure | |
| Mounting: Wall Mount | |
| Dimensions: - | |
| Weight: - |
| The MPD-BB5-TB-DT0DT-ZZ-1.E35-2.L24-3.N16-1.N07-H1 from Larson Electronics is a Solid-State Voltage Frequency Transformer that is designed for voltage and frequency rectification in industrial locations. The transformer comes with an input voltage/frequency of three-phase 208 V Delta, 60 Hz and an output voltage/frequency of three-phase 120 V 50 Hz. This unit features a NEMA 3R rated wall mount hinged enclosure suitable for indoor use. The MPD-BB5-TB-DT0DT-ZZ-1.E35-2.L24-3.N16-1.N07-H1 can be used to accurately convert voltages and frequencies in industrial sites. This unit offers three-phase 480 V Delta, 60 Hz on the input side and three-phase 120 V Delta, 50 Hz on the output side. During operation, rectification is completed via IGBT. The frequency converter provides robust microprocessor control, true online double conversion and active input power factor correction. This solid-state voltage frequency converter is equipped with several protective features, including overload, short circuit, over temp, instant power failure connection and alarm. For efficient operation, the unit features smart fan control and ultra high efficiency (98% in Smart Eco Mode). Operators are provided access to a panel, which houses various controls for meters. Available meter components include digital frequency meter, digital voltage meter, digital ammeter and digital watt meter. Receptacles: The features one IEC 60309 Pin & Sleeve receptacle, two L15-30R NEMA Twist-Lock receptacles, three 6-20R NEMA SPLX receptacles, and one 5-20R NEMA SPLX receptacle on the secondary side that allow operators to connect 50 Hz equipment. Mounting: The MPD-BB5-TB-DT0DT-ZZ-1.E35-2.L24-3.N16-1.N07-H1 is secured inside a NEMA 3R rated wall mount hinged enclosure. Applications: Industrial facilities, laboratories, air compressor testing, power supply testing, motor equipment testing, quality assurance, lighting systems and more. |
