5 KVA Rack Mount Power Distribution - 208V to 120V 1-phase - (1) L6-30 Inlet, (1) L5-30R Receptacle - 20' Ext. Cord - 12U ATA w/ Casters
5 KVA Rack Mount Power Distribution - 208V to 120V 1-phase - (1) L6-30 Inlet, (1) L5-30R Receptacle - 20' Ext. Cord - 12U ATA w/ Casters
| MPD-CB12-NTL.30A-ST5SZ-ZD-1.L05-M2 - Portable Spider Box | Ratings |
| Line-in Extension Cord: 20' 10/3 AWG SOOW Cord | Max Primary OCP: 30A @ 208V | |
| Line-in Cord Caps (Extension Cord): 30A NEMA L6-30P and NEMA L-630C [250V] | Max Secondary Output: 30A @ 120V | |
| Primary Inlet: 30A NEMA L6-30 Twist Lock [250V] | Made in the USA | |
| Primary Voltage (V): 208V AC | NRTL Certified to UL 1640 | |
| Primary Phase (PH): 1-Phase (1PH) | Â | |
| Primary Frequency (HZ): 60 Hz (60-cycles) | Â | |
| Primary Panel: - | Â | |
| Primary Breaker: - | Â | |
| Primary Protection: - | Â | |
| Transformer (KVA): 5KVA 208V to 120V 1-phase | Â | |
| Secondary Voltage (V): 120V AC | Â | |
| Secondary Phase (PH): 1-Phase (1PH) | Â | |
| Secondary Frequency (HZ): 60 Hz (60-cycles) | Â | |
| Secondary Panel: - | Â | |
| Secondary Breakers: (1) 30A 1P MCB [125V] | Â | |
| Secondary Outlets: (1) 30A L5-30R NEMA Twist Lock [125V] | Â | |
| Secondary Protection: MCB Circuit Breaker | ||

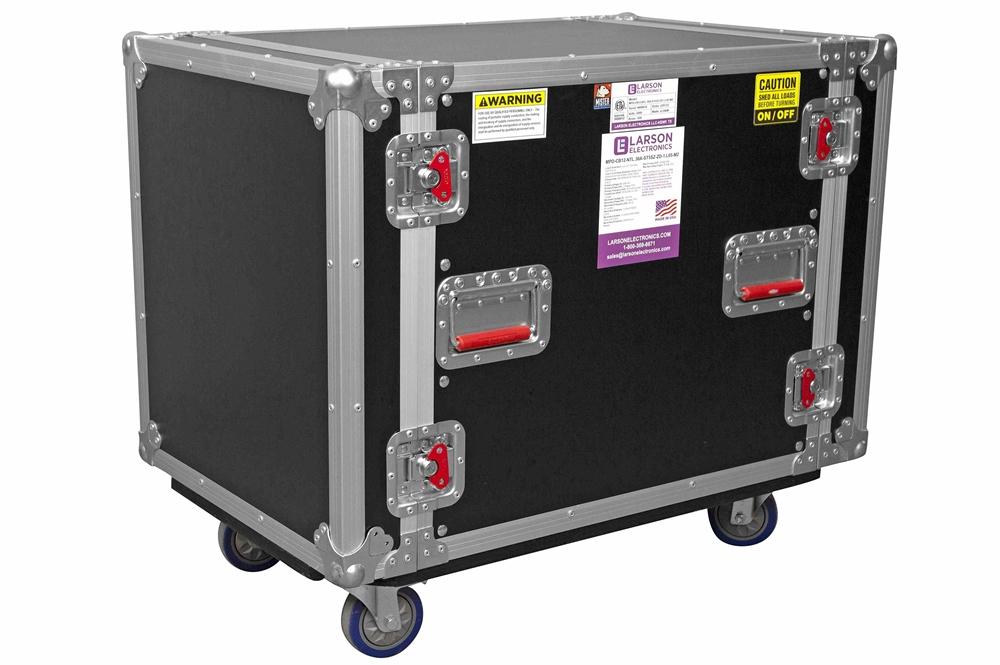

| Form Factor: 12U ATA Case w/ Laminated 9mm Plywood Construction and (4) Fixed 4" Casters, Recessed Twist Latches/Spring-loaded Rubber-gripped Handles | ||
| Finish: Laminated Exterior - Black | ||
| Casters: (2) Fixed/Locking Casters, (2) Fixed Casters | ||
| Dimensions: 30.5"H x 21.5"W x 25.75"D | ||
| Weight: - | ||
| Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* | Â |
| This unit is Made In USA - Manufactured in Texas The Larson Electronics MPD-CB12-NTL.30A-ST5SZ-ZD-1.L05-M2 Rack Mount Power Distribution converts single-phase 208V AC electrical current to single-phase 120V AC. This portable unit provides operators the ability to safely tap into and distribute 208V AC power from a variety of sources including generators and direct grid power. All system components are secured to a standard 12U ATA case with four, 4" casters at the base for mobility. The MPD-CB12-NTL.30A-ST5SZ-ZD-1.L05-M2 temporary power distribution unit gives operators the ability to power their 120 volt equipment from a single system. On the primary side, operators connect single-phase 208 volt line-in power using an included power extension cord to one NEMA L6-30 twist-lock inlet. The 20' 10/3 SOOW extension cord contains a NEMA L6-30P plug and NEMA L6-30C connector. On the secondary side, operators may access one NEMA L5-30R receptacle for 120V equipment. Operation: An included 20' 10/3 SOOW extension cord with a 30-amp NEMA L6-30P 250V plug and 30-amp NEMA L6-30C 250V connector brings single-phase 208V power to a 30-amp NEMA L6-30 250V twist-lock inlet on the primary side and passes power to the transformer. The 5 KVA transformer converts single-phase 208V to single-phase 120V and passes the current to the secondary side of the system. The secondary side has one 30-amp 1-pole 125V main circuit breaker protecting one 30-amp NEMA L5-30R 125V twist-lock receptacle. Protective Construction: The power distribution system is protected by a standard 12U (17" deep) ATA case with casters. This case takes on 9mm plywood construction with a laminated, black exterior. Heavy-duty plated hardware and reinforced corners provide added protection from bumps and contact during deployment or transportation around the site. The housing features 3.2mm thick front and rear rack rails, as well as tongue and grove extruded aluminum valance. Operators may access red recessed twist latches and spring-loaded rubber-gripped handles on the side of the case. There are four, 4" casters at the bottom of the base (two fixed and two fixed/locking). This temporary power distribution solution can be modified to meet the needs of job-site receptacle requirements. Larger units are available upon request and can be equipped with skids or trailer mount. Certification: All units are built in accordance to NFPA 70 (National Electric Code) and certified to UL 1640. NEMA 3R, NEMA 4 and NEMA 4X equipment can be equipped upon request. Grounding: Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground. ~Please check all motor loads for dual rated motors that will work 208 or 240.~ Applications: This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits, and shipyard operations. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Custom Built Systems Available: Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements. Â |
