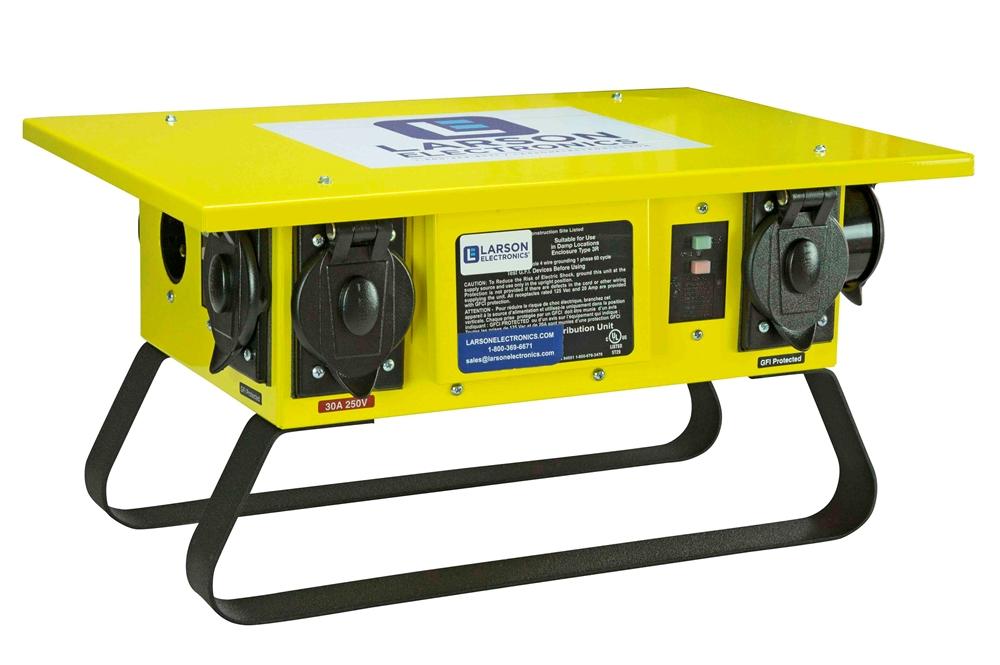

Portable Spider Box - 125/250V Input - (1) CS6375 Input, (1) CS6369 FT, (6) L5-20R GFCI - Aluminum/Safety Yellow
Portable Spider Box - 125/250V Input - (1) CS6375 Input, (1) CS6369 FT, (6) L5-20R GFCI - Aluminum/Safety Yellow
| MPD-CS-CS.50AB-SZ0SZ-ZG-1.C04-1.L09-6.L04-M1 Spider Box | Ratings/Approvals |
| Input: 50A CS6375 Male Inlet [125/250V] | Max Primary OCP: 50A @ 240V |
| Primary Voltage: 120/240V AC | Max Secondary Output: 50A @ 240V |
| Primary Phase: 1-phase | NRTL Certified to UL 1640 |
| Primary Frequency: 60 Hz | NEMA 3R Weatherproof |
| Output: 50A CS6369 Feed Through [125/250V] | Overload Protection |
| Panel: 50A 120/240V 1-phase MLO N3R - Yellow Spider Box | Short Circuit Protection |
| Primary Breakers: (1) 50A 2P MCB [250V], (1) 30A 2P MCB [250V], (6) 20A 1P MCB [125V] |  |
| Primary Receptacles: (1) 30A L6-30R NEMA [250V], (6) 20A L5-20R NEMA [125V] | |
| Primary Protection: MCB Circuit Breakers, (6) 1075-AR NEMA GFCI [125V] | |
| GFI Trip Level: 4-6 mA | Special Orders - Requirements |
| Housing Material: Aluminum | |
| Mounting: Portable/Base Stand | |
| Dimensions: 11" x 21" x 14.5" | |
| Weight: 29 lbs | |
| Color: Safety Yellow w/ Black Legs |
| This unit is Made In USA - Manufactured in Texas The Larson Electronics MPD-CS-CS.50AB-SZ0SZ-ZG-1.C04-1.L09-6.L04-M1 is portable spider box for indoor, outdoor and rugged applications. This unit allows operators to use 125/250V power via a CS6375 electrical inlet. The device supports one CS6369 feed through receptacle for 125/250V equipment, as well as one L6-30R 250V receptacle and six L5-20R 125V GFCI protected receptacles. For robust protection, the safety yellow spider box is NEMA 3R rated and protected by impact/flame resistant weatherproof covers. This portable spider box uses a 50-amp CS6375 125/250V inlet for bringing power into the unit, while the outlet is a 50-amp CS6369 125/250V feed through for powering 125/250V tools and machines. The device supports one 50-amp 2-pole 250V main circuit breaker protecting one 50-amp CS6369 125/250V feed through receptacle, one 30-amp 2-pole 250V main circuit breaker protecting one 30-amp L6-30R 250V NEMA receptacle and six 20-amp 1-pole 125V main circuit breakers protecting six 20-amp L5-20R 125V NEMA duplex receptacles. Every duplex receptacle is protected by a 1075-AR NEMA GFCI. GFI trip level is set to 4-6 mA with a maximum trip time of 25 mS. The MPD-CS-CS.50AB-SZ0SZ-ZG-1.C04-1.L09-6.L04-M1 spider box features short circuit, overload, open neutral and reverse phasing protection. Should circuit overload occur, the unit will automatically shut down to protect the spider box from damage. The housing on the MPD-CS-CS.50AB-SZ0SZ-ZG-1.C04-1.L09-6.L04-M1 is constructed of aluminum with a NEMA 3R enclosure rating. This safety yellow device is approved for wet locations and features heavy-duty impact/flame resistant weatherproof covers. Two angled black legs at the base of the unit and low center of gravity ensures this spider box does not tip over in the field. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4x equipment can be equipped upon request. Applications: Indoor or outdoor applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. These units are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.  |
