400A Portable Camlock Splitter Box - 480V 3-phase - 100A Camlock Outputs, Parallel Output - Yellow/N3R
400A Portable Camlock Splitter Box - 480V 3-phase - 100A Camlock Outputs, Parallel Output - Yellow/N3R
| MPD-CS4-CLP6.400AB-DE0DE-ZZ-4.CLP5-M1 Portable Camlock Splitter Box | Ratings/Approvals |
| Input: (1 Set) 400A 16 Series Male Camlock Receptacles, 600V, 1P [Brown, Orange, Yellow, Green] | Max Primary OCP: 400A @ 480V |
| Primary Voltage: 480V AC, Delta | Max Secondary Output: 4 X 100A Sets Parallel @ 480V |
| Primary Phase: 3-phase | NEMA 3R for Indoor and Outdoor Use |
| Primary Frequency: 60 Hz | Parallel Use Only on Output |
| Primary Panel: 400A 480V 3-phase MLO Yellow Spider Box N3R |  |
| Primary Breakers: - |  |
| Primary Outlets: 100A 15 Series Female Camlock Receptacles, 600V, 1P [4-Brown, 4-Orange, 4-Yellow, 1-Green] |  |
| Primary Protection: Weatherproof Covers | |
| Form Factor: Yellow Powder Coated Spider Box | |
| Mounting: Portable | |
| Dimensions: - | |
| Weight: - | |
| Color: Yellow | |

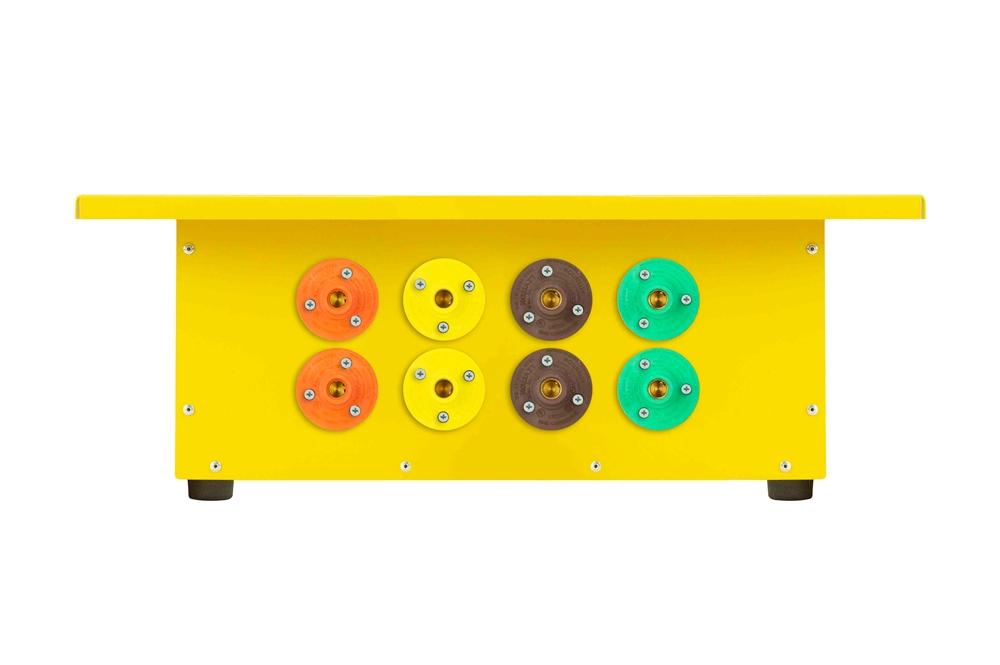

| Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| This unit is Made In USA - Manufactured in Texas The Larson Electronics MPD-CS4-CLP6.400AB-DE0DE-ZZ-4.CLP5-M1 is a Portable Splitter Box for indoor, outdoor and rugged applications. The device supports one set of four camlocks on the input side and 100-amp camlocks on the output side (parallel use only on output) for powering 480V AC equipment. For robust protection, the powder coated yellow power distribution box is NEMA 3R rated. This portable camlock splitter box is equipped with one set of 400-amp 600V rated 1-pole 16 series male camlock input receptacles (brown, orange, yellow and green) for bringing three-phase 480V power into the unit. The device supports 100-amp 600V rated 1-pole female camlock receptacles on the output side (4-brown, 4-orange, 4-yellow and 1-green). This output side is only for parallel use. The housing on the MPD-CS4-CLP6.400AB-DE0DE-ZZ-4.CLP5-M1 is powder coated yellow with a NEMA 3R enclosure rating. The sturdy base of the unit and low center of gravity ensures this splitter box does not tip over in the field. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request. Applications: Indoor or outdoor applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. These units are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.  |
