Power Distribution Box - (1) 50A 2P Breaker, (1) 2P3W CS8269 Receptacle - N3R
Power Distribution Box - (1) 50A 2P Breaker, (1) 2P3W CS8269 Receptacle - N3R
| MPD-EB1-T.50AB-SN0SN-1.C02-N3R Power Distribution Box | Ratings |
| Line-in Cord: Not Included | Max Primary OCP: 50A @ 250V |
| Line-in Cord Cap: Not Included | NEMA 3R |
| Primary Voltage: 240V AC | Left Side Hinged Door |
| Primary Phase: 1-phase | Made in the USA |
| Primary Frequency: 60 Hz |  |
| Primary Breakers: (1) 50A 2P NRTL Listed to UL 489 [250V] | Powder Coat Finish Standards: |
| Primary Receptacle: (1) 50A 2P3W CS8269 [250V] | Complies with ASTM D-523 |
| Primary Protection: Circuit Breaker | Complies with ASTM D-3359 |
| Transformer: N/A | Complies with ASTM D-522 |
| Secondary Breakers: N/A | Complies with ASTM D-3363 |
| Secondary Protection: N/A | Complies with ASTM D-2794 |
| Operating Temperature: 40°C | |
| Materials: Steel, Copper | Special Orders - Requirements |
| Finish: High-strength TGIC Polyester Powder Coated Blue | |
| Form Factor: Blue Powder Coated N3R Hinged Enclosure | Toll Free: 1-800-369-6671 |
| Mounting: Surface Mount | Intl: 1-214-616-6180 |
| Dimensions: - | |
| Weight: - | |

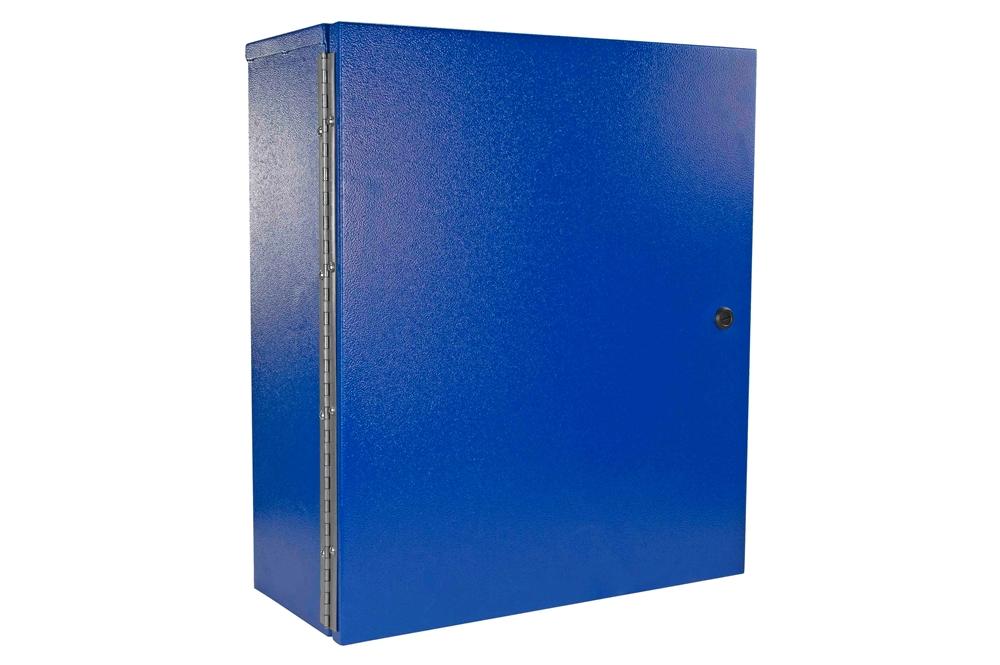

| Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| The Larson Electronics MPD-EB1-T.50AB-SN0SN-1.C02-N3R Power Distribution Box is designed for reliable, safe and convenient power connections at industrial work sites. This NEMA 3R rated unit features one 50-amp breaker protecting one CS8269 single-phase 250V receptacle. The breaker/receptacle box is made out of steel with a powder coated blue finish for durability. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* The MPD-EB1-T.50AB-SN0SN-1.C02-N3R power distribution box provides a safe and reliable way for operators in industrial settings to tap into and utilize power sources independently of the work area. The MPD series of power distribution boxes require operators to provide their own line-in cables for use. Knockouts located at the bottom of the unit are provided for convenient installation of operator-provided input and output cables. The receptacle/breaker box contains one 50-amp 2-pole NRTL certified to UL 489 breaker, which protects one 50-amp 2P3W CS8269 single-phase 250V receptacle. Enclosure Design: This power distribution system is housed in a space-saving enclosure and carries a NEMA 3R rating for protection against debris and ingress of water (dripping or minimal splashing) in indoor and outdoor locations. A left side hinged door offers access to internal system components. The power distribution system is constructed of steel with a polyester powder coated blue finish for durability against dirt, moisture and mild corrosion. This special coating creates a high-strength barrier for protection from accidental bumps and scratches. The TGIC polyester powder coat finish offers reliable resistance against chemicals, UV light (sun light) and degrading elements in outdoor locations. Our powder coating solution ensures robust color retention for many years without fading. Custom colors, such as blue (standard), black, desert tan or forest green, and galvanized finishes are available upon request. Non-standard powder coat colors or galvanized finishes may increase price and lead times. We also offer similar power distribution panels on dolly carts with wheels, powder coated cube frames with lifting eyelets/skid pockets or stand-alone with handles for faster turnarounds and completion of temporary tasks. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request. Applications: This power distribution device is NEMA 3R rated and ideal for indoor/outdoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, hazardous location operations, shows, exhibits, and shipyard operations. |
