Power Distribution Panel - 480V Delta, 3-phase - 60A MB Panel - (1) 2P & (4) 3P Primary Breakers - Left Side Hinged Door - External Disconnect Switches & Receptacles
Power Distribution Panel - 480V Delta, 3-phase - 60A MB Panel - (1) 2P & (4) 3P Primary Breakers - Left Side Hinged Door - External Disconnect Switches & Receptacles
| MPD-EB5-TB-DE2SW-GZ-4.L25-2.N10-N1 Power Distribution Panel | Ratings |
| Line-in Cord: Not Included - Requires Minimum Use Wiring 60A Rated Cu @ [480 V] (**Customer Provided**) | Max Primary OCP: 60A @ 480 V |
| Line-in Cord Cap: Not Included - Requires Minimum Use Device 60A @ [480 V] (**Customer Provided**) | Max Secondary Output: 16.7A @ 120 V |
| Primary Voltage: 480 V Delta | Left Side Hinged Door |
| Primary Phase: 3-phase | NRTL Certified to UL 489 Rated MCCB Breaker for Main Breaker |
| Primary Frequency: 60 Hz | NRTL Certified to UL 1077 Rated Din Rail Mount Branch Breakers |
| Panel: 480 V 3PH 60A MCCB Hinged N1 | External Disconnect Switches and Receptacles |
| Primary Breakers: (1) 10A 2P MCB [480 V]; (4) 15A 3P MCB [480 V] | Made in the USA |
| Primary Outlets: (4) L16-20R NEMA Twist-Lock [480 V] |  |
| Primary Protection: MCCB Circuit Breaker; MCB Circuit Breakers; Non-Fused lockable Disco's | Powder Coat Finish Standards: |
| Transformer: 2 kVA 480 V to 120 V 1PH N1 | Complies with ASTM D-523 |
| Secondary Voltage: 120 V | Complies with ASTM D-3359 |
| Secondary Phase: 1-Phase | Complies with ASTM D-522 |
| Secondary Frequency: 60 Hz | Complies with ASTM D-3363 |
| Secondary Panel: N/A | Complies with ASTM D-2794 |
| Secondary Breakers: (1) 20A 1P MCB [125 V] | |
| Secondary Outlets: (1) L5-20R NEMA DPLX GFCI [125 V] | |
| Secondary Protection: MCB Circuit Breaker; GFCI's | |
| Circuits: - | |
| Feed Type: - | |
| Top Entry: - | |
| Interrupting Rating: - | |
| Operating Temperature: 40°C | |
| Materials: Steel |  |
| Bus Material: - |  |
| Ground Bar Material: - |  |
| Panel Finish: High-strength TGIC Polyester Powder Coated Blue | Special Orders - Requirements |
| Form Factor: Blue Powder Coated N1 Enclosure | |
| Input Wire Size: - | Toll Free: 1-800-369-6671 |
| Dimensions: 24"-H x 20"-W x 10"-D | Intl: 1-214-616-6180 |
| Weight: - | |
| Mounting: Surface Mount | |

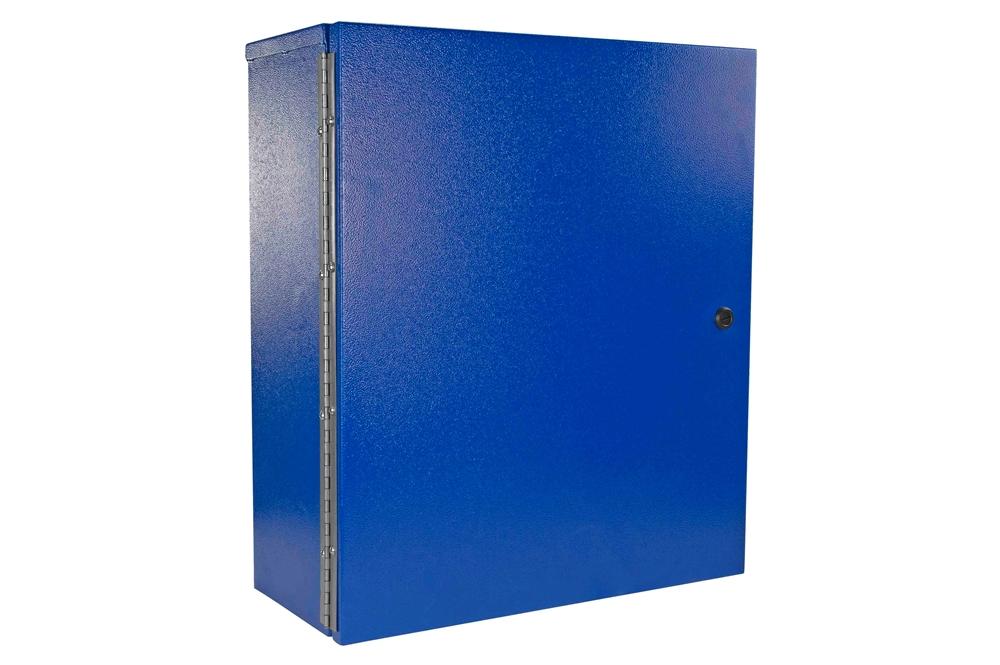

| Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| The MPD-EB5-TB-DE2SW-GZ-4.L25-2.N10-N1 from Larson Electronics is a Power Distribution Panel that is designed for reliable, safe and convenient power distribution at industrial work sites. This 60-amp unit provides three-phase 480 V Delta via a main circuit breaker panel. The power distribution panel provides operators the ability to safely tap into and distribute 480 V Delta power from a variety of sources including generators and direct grid power. The MPD-EB5-TB-DE2SW-GZ-4.L25-2.N10-N1 has a left side hinged panel as well as external disconnect switches and external receptacles. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* The MPD-EB5-TB-DE2SW-GZ-4.L25-2.N10-N1 power distribution panel provides a safe and reliable way for operators in industrial settings to tap into and utilize power sources independently of the work area. The MPD series of power distribution panels require operators to provide their own line-in cables for use. Knockouts located at the bottom of the unit are provided for convenient installation of operator-provided input and output cables. The panel is designed to operate with three-phase 480 V Delta voltage. Power distribution for this panel runs 480 V Delta through a 60-amp main circuit breaker panel. The NEMA 1 60-amp 480 V Delta main breaker panel is protected by a 60-amp NRTL certified to UL 489 rated MCCB breaker and contains one 10-amp 2-pole 480 V MCB and four 15-amp 3-pole 480 V MCB circuit breakers. Enclosure Design: This power distribution system is housed in a space-saving enclosure and carries a NEMA 1 rating for protection against incidental personnel contact and falling dirt in indoor locations. A left side hinged door offers access to internal system components. The power distribution system is constructed of steel with a polyester powder coated blue finish for durability against dirt, moisture and mild corrosion. This special coating creates a high-strength barrier for protection from accidental bumps and scratches. The TGIC polyester powder coat finish offers reliable resistance against chemicals, UV light (sun light) and degrading elements in outdoor locations. Our powder coating solution ensures robust color retention for many years without fading. Custom colors, such as blue (standard), black, desert tan or forest green, and galvanized finishes are available upon request. Non-standard powder coat colors or galvanized finishes may increase price and lead times. We also offer similar power distribution panels on dolly carts with wheels, powder coated cube frames with lifting eyelets/skid pockets or stand-alone with handles for faster turnarounds and completion of temporary tasks. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 1 rated for indoor use and provide a degree of protection againstincidental contact and falling dirt. NEMA 4 and NEMA 4X equipment can be equipped upon request. Grounding: Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground. ~Please check all motor loads for dual rated motors that will work 208 or 240.~ Applications: This power distribution system is NEMA 1 rated and ideal for indoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, hazardous location operations, shows, exhibits, and shipyard operations. |
