Power Distribution Panel - 480/277V AC Wye 3-phase Panel - 800A MCB - (6) MCCB Breakers - Left Side Hinged Door
Power Distribution Panel - 480/277V AC Wye 3-phase Panel - 800A MCB - (6) MCCB Breakers - Left Side Hinged Door
| MPD-EB69-T.800ACB-YE0YE-XZ-3.T54-3.T24-M1 Power Distribution Panel | Ratings |
| Line-in Cord: Not Included - Requires Minimum Use Wiring 800A Rated Cu @ [600V] (**Customer Provided**) | NEMA 3R / IP54 Rated |
| Line-in Cord Cap: Not Included - Requires Minimum Use Plug 800A @ [480Y/277V] (**Customer Provided**) | Left Side Hinged Door |
| Max Primary OCP: 800 A @ 480 V | Made in the USA |
| Primary Voltage: 480/277 V AC Wye | Powder Coat Finish Standards: |
| Primary Phase: 3-phase | Complies with ASTM D-523 |
| Primary Frequency: 60 Hz | Complies with ASTM D-3359 |
| Panel: 480Y/277 V 3PH 800 A MCB N3R | Complies with ASTM D-522 |
| Primary Breakers: (3) 200A 3P MCCB [480V], (3) 100A 3P MCCB [480V] | Complies with ASTM D-3363 |
| Primary Protection: MCCB Circuit Breakers | Complies with ASTM D-2794 |
| Transformer: N/A |  |
| Secondary Breakers: N/A |  |
| Secondary Protection: N/A |  |
| Circuits: - |  |
| Feed Type: Bottom | |
| Top Entry: - | |
| Interrupting Rating: 14 | |
| Operating Temperature: 40°C | |
| Materials: Steel, Copper |  |
| Bus Material: Copper |  |
| Ground Bar Material: Aluminum (Bolted) |  |
| Panel Finish: High-strength TGIC Polyester Powder Coated Gray | Special Orders - Requirements |
| Form Factor: Gray Powder Coated Steel Panel - Left Side Hinged Door | |
| Input Wire Size: - | |
| Internal Dimensions: - | |
| Weight: - | |
| Mounting: Wall Mount via (4) Thru-Holes | |

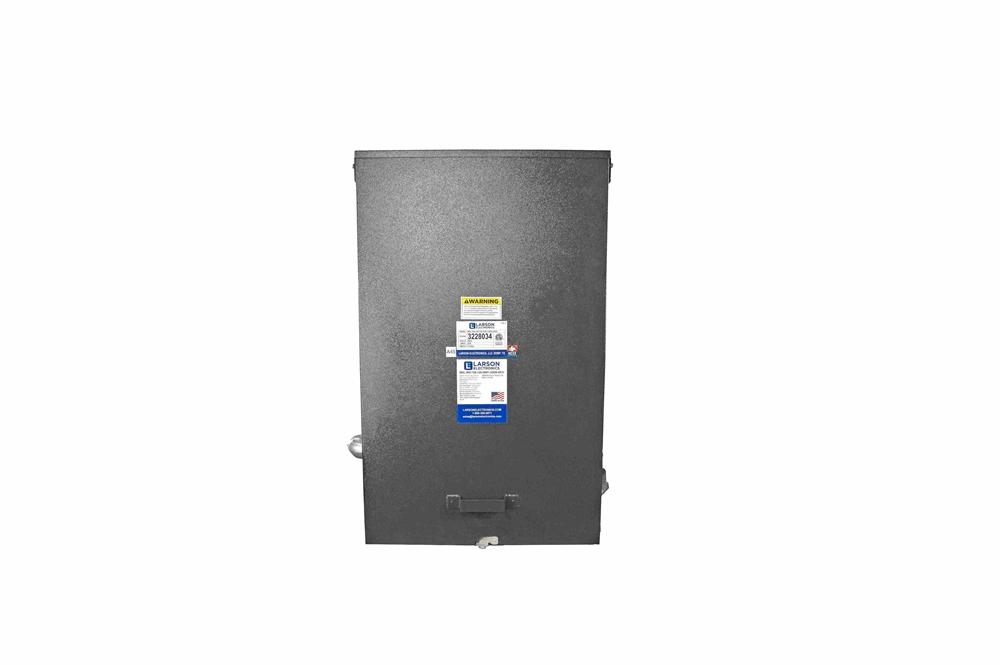

| Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| The Larson Electronics MPD-EB69-T.800ACB-YE0YE-XZ-3.T54-3.T24-M1 Power Distribution Panel is designed for reliable, safe and convenient power distribution at industrial work sites. This 800-amp unit provides three-phase 480/277 V AC Wye via a main circuit breaker panel. The power distribution panel provides operators the ability to safely tap into and distribute 220 V AC Delta power from a variety of sources including generators and direct grid power. The MPD-EB69-T.800ACB-YE0YE-XZ-3.T54-3.T24-M1 has a left side hinged panel. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* The MPD-EB69-T.800ACB-YE0YE-XZ-3.T54-3.T24-M1 power distribution panel provides a safe and reliable way for operators in industrial settings to tap into and utilize power sources independently of the work area. The MPD series of power distribution panels require operators to provide their own line-in cables for use. Knockouts located at the bottom of the unit are provided for convenient installation of operator-provided input and output cables. The panel is designed to operate with three-phase 480/277 V AC Wye voltage. Power distribution for this panel runs 480/277 V AC Wye through a 800-amp main circuit breaker panel. The NEMA 3R 50-amp 240 V AC Delta main circuit breaker panel is protected by three 800-amp 3-pole molded case circuit breaker. This panel contains three 200-amp 3-pole 480 V and three 100-amp 3-pole 480 V molded case circuit breakers. Enclosure Design: This power distribution system is housed in a space-saving enclosure and carries a NEMA 3R / IP54 rating for protection against debris and ingress of water (dripping or minimal splashing) in indoor locations. A left side hinged door offers access to internal system components. The door handle is lockable using a key in order to deter the possibility of tampering. Protruding operator handles are available from the door, which allows individuals to use the panel with the door closed. The power distribution system is constructed of steel with a polyester powder coated gray finish for durability against dirt, moisture and mild corrosion. This special coating creates a high-strength barrier for protection from accidental bumps and scratches. The TGIC polyester powder coat finish offers reliable resistance against chemicals, UV light (sun light) and degrading elements in outdoor locations. Our powder coating solution ensures robust color retention for many years without fading. Custom colors, such as blue (standard), black, desert tan or forest green, and galvanized finishes are available upon request. Non-standard powder coat colors or galvanized finishes may increase price and lead times. We also offer similar power distribution panels on dolly carts with wheels, powder coated cube frames with lifting eyelets/skid pockets or stand-alone with handles for faster turnarounds and completion of temporary tasks. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request. Grounding: Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground. ~Please check all motor loads for dual rated motors that will work 208 or 240.~ Applications: This power distribution system is NEMA 3R rated and ideal for indoor/outdoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, hazardous location operations, shows, exhibits, and shipyard operations. |
