Power Distribution Panel - 208V AC Wye, 3-phase - 800A Panel - Surge Suppressor/Digital Meter - N1

LARSON ELECTRONICSSKU: PL3-MPD-EB70-T-YT0-YZ-4.T54-2.T24.T76.R58-1.T20.T19-N1
filler

Precio:
Precio de venta$45,158.00

Descripción

Specifications / Additional Information
MPD-EB70-T-YT0-YZ-4.T54-2.T24.T76.R58-1.T20.T19-N1 Power Distribution Panel Ratings
Line-in Cord: Not Included - Requires Minimum Use Wiring 800A Rated Cu @ [600V] (**Customer Provided**) Max Primary OCP: 800A @ 208V
Line-in Cord Cap: Not Included - Requires Minimum Use Device 800A @ [208Y/120V] (**Customer Provided**) NEMA 1
Primary Voltage: 208V AC Wye Made in the USA
Primary Phase: 3-Phase (3PH)
Primary Frequency: 60 Hz (60-cycles) Powder Coat Finish Standards:
Panel: 208Y/120V 3PH 800A MCCB Hinged w/Digital Meter N1 Complies with ASTM D-523
Primary Breakers: (4) 200A 3P MCCB [250V]; (2) 100A 3P MCCB [250V]; (1) 60A 3P MCCB [250V]; (1) 50A 3P MCCB [250V]; (2) 35A 3P MCCB [250V]; (2) 20A 3P MCB [250V] Complies with ASTM D-3359
Primary Protection: MCCB Circuit Breakers; MCB Circuit Breakers; Surge Suppressor; Digital Meter Complies with ASTM D-522
Transformer: N/A Complies with ASTM D-3363
Secondary Breakers: N/A Complies with ASTM D-2794
Secondary Protection: N/A
Circuits: -
Feed Type: Bottom
Top Entry: -
Interrupting Rating: -
Operating Temperature: 40°C
Materials: Steel, Copper
Bus Material: Copper
Ground Bar Material: Aluminum (Bolted)
Panel Finish: High-strength TGIC Polyester Powder Coated Blue Special Orders - Requirements
Form Factor: Blue Powder Coated N1 Enclosure
Input Wire Size: - Toll Free: 1-800-369-6671
Internal Dimensions: - Intl: 1-214-616-6180
Weight: -
Mounting: Surface Mount

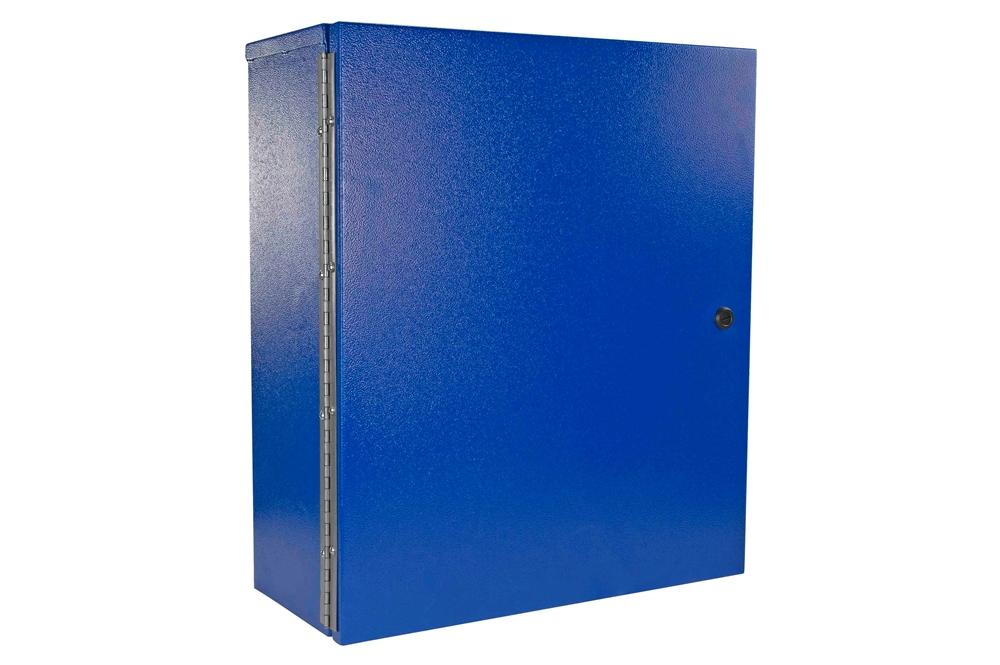

Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The Larson Electronics MPD-EB70-T-YT0-YZ-4.T54-2.T24.T76.R58-1.T20.T19-N1 Power Distribution Panel is designed for reliable, safe and convenient power distribution at industrial work sites. This 800-amp unit provides three-phase 208V AC Wye power via a NEMA 1 rated panel. The power distribution panel provides operators the ability to safely tap into and distribute 208V AC Wye power from a variety of sources including generators and direct grid power. The MPD-EB70-T-YT0-YZ-4.T54-2.T24.T76.R58-1.T20.T19-N1 has a left side hinged panel. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* The MPD-EB70-T-YT0-YZ-4.T54-2.T24.T76.R58-1.T20.T19-N1 power distribution panel provides a safe and reliable way for operators in industrial settings to tap into and utilize power sources independently of the work area. The MPD series of power distribution panels require operators to provide their own line-in cables for use. Knockouts located at the bottom of the unit are provided for convenient installation of operator-provided input and output cables. The panel is designed to operate with three-phase 208V AC Wye voltage. Power distribution for this panel runs 208V AC Wye through a NEMA 1 rated primary panel. The 208Y/120V primary panel is protected by an 800-amp molded case circuit breaker and contains four 200-amp 3-pole 250V molded case circuit breakers, two 100-amp 3-pole 250V molded case circuit breakers, one 60-amp 3-pole 250V molded case circuit breaker, one 50-amp 3-pole 250V molded case circuit breaker, two 35-amp 3-pole 250V molded case circuit breakers and two 20-amp 3-pole 250V main circuit breakers. The panel is also equipped with surge suppressor and a digital meter. The output side contains lugs for connection to each output. Enclosure Design: This power distribution system is housed in a space-saving enclosure and carries a NEMA 1 rating for protection in indoor locations. A left side hinged door offers access to internal system components.  The power distribution system is constructed of steel with a polyester powder coated blue finish for durability against dirt, moisture and mild corrosion. This special coating creates a high-strength barrier for protection from accidental bumps and scratches. The TGIC polyester powder coat finish offers reliable resistance against chemicals, UV light (sun light) and degrading elements in outdoor locations. Our powder coating solution ensures robust color retention for many years without fading. Custom colors, such as blue (standard), black, desert tan or forest green, and galvanized finishes are available upon request. Non-standard powder coat colors or galvanized finishes may increase price and lead times. We also offer similar power distribution panels on dolly carts with wheels, powder coated cube frames with lifting eyelets/skid pockets or stand-alone with handles for faster turnarounds and completion of temporary tasks. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 1 rated for indoor use. NEMA 3R, 4 and NEMA 4X equipment can be equipped upon request. Grounding: Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground. ~Please check all motor loads for dual rated motors that will work 208 or 240.~ Applications: This power distribution system is NEMA 1 rated and ideal for indoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, hazardous location operations, shows, exhibits, and shipyard operations.
