5 kVA Hazardous Location Transformer - 440V to 220V - (4) 16A C1D2 Outlets - 25' Line-In Cord

5 kVA Hazardous Location Transformer - 440V to 220V - (4) 16A C1D2 Outlets - 25' Line-In Cord

$32,286.00 CAD
$32,286.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
MPD-HD2-BS.15AB-SG5SR-BZ-4.H02-M1 Hazardous Location Power Distribution Unit Ratings/Features
Primary Voltage: 440V AC 1P 60 Hz Class I, Division 2, Groups C & D
Line-In Cable: 25' #12/3 AWG TYPE SOOW Cord NRTL Certified to UL 1640
Line-In Cord Cap: Not Included - Requires Minimum Use Device 15A @ [440 V] (**Customer Provided**) NEMA 3R Weatherproof
Primary Breakers: (1) 15A 2P C1D2 MCB [440 V] Max Primary OCP: 15 A @ 440 V
Transformer: 5KVA 440V to 220V 1PH C1D2 Max Secondary OCP: 22.7 A @ 220 V
Secondary Voltage: 220 V AC 1P 60 Hz Top Located Cord Management
Secondary Panel: 220 V 1PH 22.7A MLO Hinged SS N4X
Secondary Breakers: (2) 16A 1P C1D2 MCB [220 V]
Secondary Outlets: (4) CZ-EX 16A C1D2 Pin & Sleeve [220 V]
Secondary Protection: MCB C1D2 Circuit Breakers Special Orders - Requirements
Dimensions: 24"-L x 18"-W X 52"-H (*Please note that dimensions are approximate and subject to change*)
Weight: 125 lb (*Please note that weight is approximate and subject to change*)
Form Factor: Blue Powder Coated MGL Dolly Cart w/ No Flat Tires
Cart Material: Steel Fax:1-903-498-3364
Cart Finish: High-strength TGIC Polyester Powder Coated Blue E-mail:
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

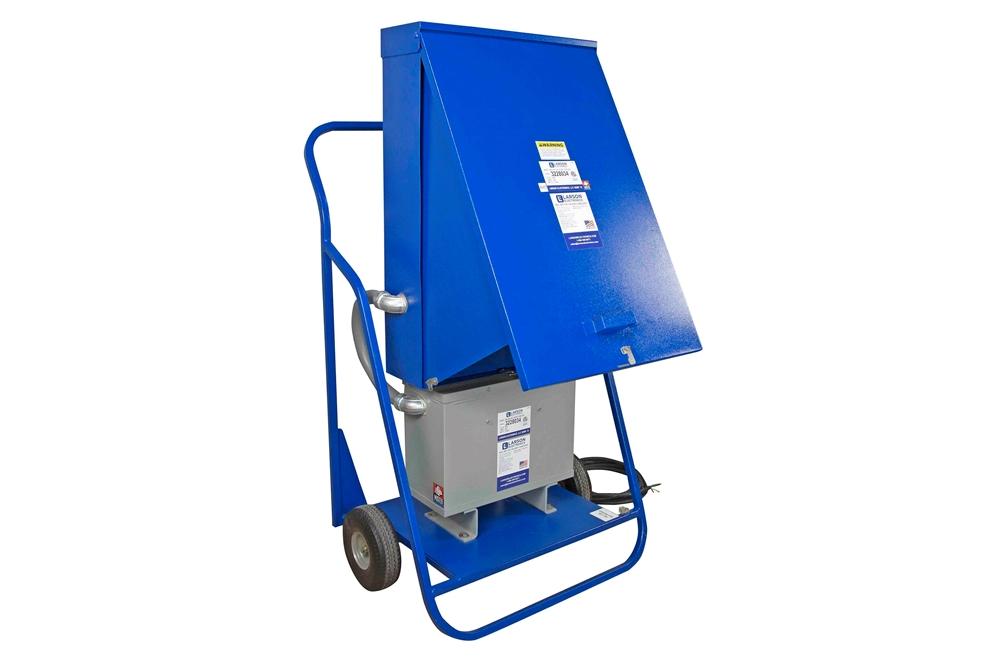

Made in Texas The MPD-HD2-BS.15AB-SG5SR-BZ-4.H02-M1 from Larson Electronics is a Portable Hazardous Location Power Distribution System that steps down 440 V AC 60 Hz input voltage to 220 V AC output voltage. This hazardous location portable power distribution unit allows operators to plug into 440 V power via a 25' #12/3 AWG TYPE SOOW cord (NO cord cap is included). The MPD-HD2-BS.15AB-SG5SR-BZ-4.H02-M1 portable wheeled power distribution unit from Larson Electronics is built to provide operators with a reliable source of 220 V power within Class I, Division 2 rated areas. This compact power distribution unit is designed for portability and convenience as well as durability. Featuring an elevated base platform for protection from standing water and weatherproof construction, the MPD-HD2-BS.15AB-SG5SR-BZ-4.H02-M1 is ideal for powering 220 V equipment and lighting in construction, entertainment, job-site, marine, and outdoor locations where 440 V power is available. Operation:
  • Primary Voltage: 1-phase 440 V AC
  • Primary Receptacles: N/A
  • Primary Breakers: (1) 15A 2P C1D2 MCB [440 V]
  • Primary Protection: MCB C1D2 Circuit Breaker
  • Transformer: 5KVA 440 to 220V 1PH C1D2
  • Secondary Panel: 220 V 1PH 22.7A MLO Hinged SS N4X
  • Secondary Voltage: 1-phase 220 V AC
  • Secondary Breakers: (2) 16A 1P C1D2 MCB [220 V]
  • Secondary Outlets: (4) CZ-EX 16A C1D2 Pin & Sleeve [220 V]
  • Secondary Protection: MCB C1D2 Circuit Breakers
*See specification table at the top of the page for more information about the power distribution system. A #12/3 AWG TYPE SOOW line-in cord brings 440 V single-phase power to the 15-amp, 2-pole miniature C1D2 circuit breaker and passes the current to the 5 KVA explosion proof transformer. The Class I, Division 2 5 KVA transformer converts 440 V single-phase power to 220 V single phase and passes the current to the secondary panel. Liquid-tite flexible cord connects the transformer to the secondary panel. The secondary side of the explosion proof transformer feeds a 22.7-amp rated 220 V single-phase main lug Class I, Division 2 panel. This secondary panel contains two 16-amp breakers protecting four 16-amp, 220 V, CZ-EX explosion proof outlets. The outlets are mounted to an aluminum back plate for easy connection for equipment in the field. The transformer and load center/distribution assembly is mounted to a standard upright steel dolly cart style frame resulting in an extremely stable, durable, and mobile power distribution platform. For even more stability, the MPD-HD2-BS.15AB-SG5SR-BZ-4.H02-M1 features a rear-mounted kick stand that can easily be deployed when the unit is in the desired position. This kick stand increases the stability of this unit so that the risk of it being knocked over or falling down are almost completely eliminated. Two run-flat tires and a cart style mounting platform provides easier substation mobility. This temporary power distribution solution can be modified to meet the needs of job-site receptacle requirements. Primary voltage is brought into the MPD-HD2-BS.15AB-SG5SR-BZ-4.H02-M1 portable hazardous location portable power distribution system via 25' of 12/3 chemical and abrasion resistant SOOW cable that is terminated in a blunt cut end. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or
