Heavy Duty Military Spider Box - 208/120V 3-phase - 40A Class L Inlet/Outlet, (7) 20A NEMA 125V Receptacles - Powder Coated Camo Green

LARSON ELECTRONICSSKU: PL3-MPD-MS-92LF-YT0YT-ZZ-1.MS28-7.N07-M1
filler

Precio:
Precio de venta$21,068.00

Descripción

Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas
MPD-MS-92LF-YT0YT-ZZ-1.MS28-7.N07-M1 Spider Box Ratings/Approvals
Input: 40A Milspec Class L [208Y/125V] Max Primary OCP: 40A @ 208V
Primary Voltage: 208/120V AC Wye NRTL Certified to UL 1640
Primary Phase: 3-phase NEMA 3R Weatherproof
Primary Frequency: 60Hz Secondary Overload, GFI Protection
Primary Panel: 40A 208Y/120V 3-phase MLO N3R
Primary Breakers: (2) 20A 1P MCB [125V], (5) 20A 1P GFCI MCB [125V]
Primary Receptacles: (7) 20A 5-20R NEMA Smplx [125V], (1) 40A MS Class L Pin/Sleeve Female [208Y/125V]
Primary Protection: MCB Circuit Breakers, (5) GFCIs, Weatherproof Covers
GFI Trip Level: -
Housing Material: Steel
Finish: Powder Coating
Form Factor: Camo-Green Powder Coated Steel Spider Box w/ Legs
Mounting: Legs/Stand
Dimensions: -
Weight: -
Color: Camo Green

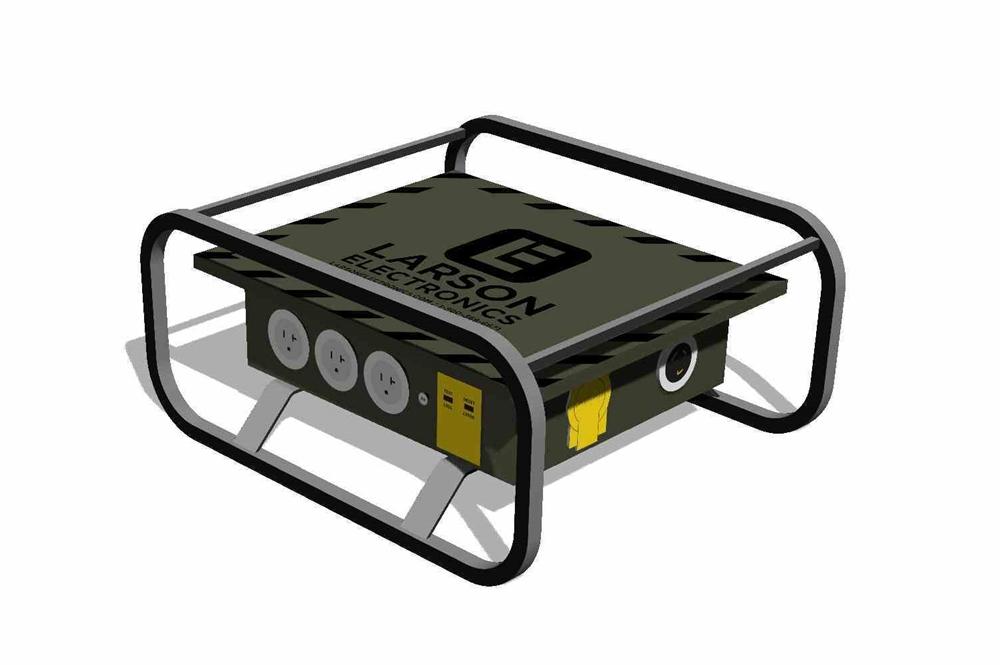

Larson Electronics manufacture a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
This unit is Made In USA - Manufactured in Texas The Larson Electronics MPD-MS-92LF-YT0YT-ZZ-1.MS28-7.N07-M1 is a Heavy Duty Military Spider Box for indoor, outdoor and rugged applications. This camo green unit allows operators to use 208Y/120V 3-phase power via a milspec Class L electrical inlet. The device supports one milspec feed through outlet for 208Y/120V 3-phase equipment, as well as seven receptacles. For robust protection, the receptacles on the NEMA 3R rated spider box feature weatherproof covers. This portable spider box uses a 40-amp, 208Y/125V 3-phase milspec Class L male pin/sleeve inlet for bringing power into the unit, while the milspec outlet is a 40-amp, 208Y/125V 3-phase Class L feed through for powering 3-phase tools and machines. The device supports one feed through receptacle for 208Y/120V equipment, as well as two 20-amp 1-pole 125V main circuit breakers and five 20-amp 1-pole 125V GFCI main circuit breakers protecting seven 20-amp L5-20R 125V NEMA Smplx receptacles with weatherproof covers. The MPD-MS-92LF-YT0YT-ZZ-1.MS28-7.N07-M1 spider box features overload protection for the secondary receptacles and GFI protection for five devices only. The housing on the MPD-MS-92LF-YT0YT-ZZ-1.MS28-7.N07-M1 carries a NEMA 3R enclosure rating for use in indoor, outdoor, wet and dry locations. Mounting legs on the base keep the camo green spider box upright and above wet or rough surfaces. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4x equipment can be equipped upon request. Applications: Indoor or outdoor applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. These units are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
