Larson 500 VA Direct Burial Magnetic Transformer - 240V Primary - 120V Secondary - NEMA 12

Larson ElectronicsSKU: PL3-MT-DBXF-240V-500VA-120V
filler

Precio:
Precio de venta$2,214.00

Descripción

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

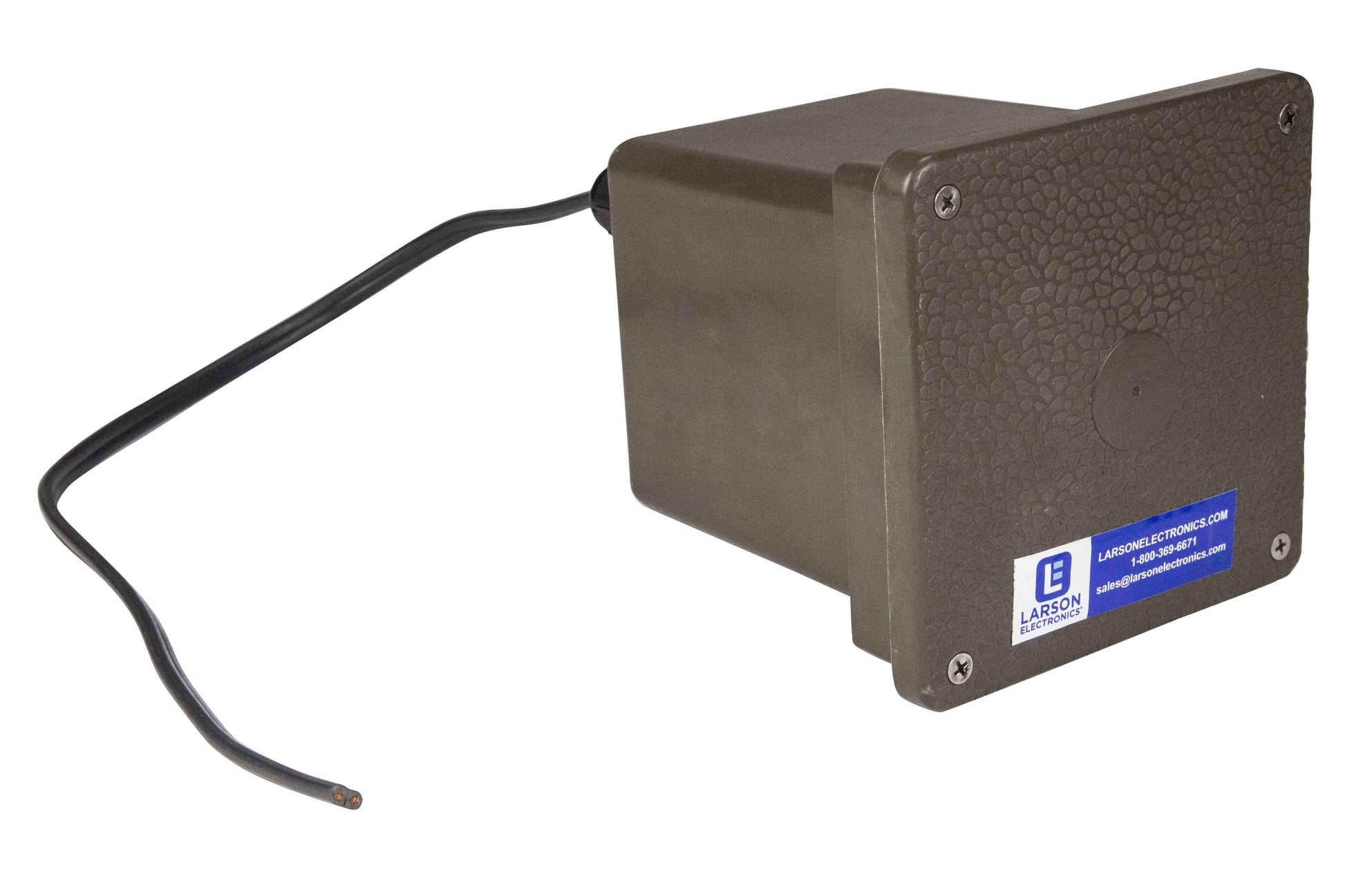

The MT-DBXF-240V-500VA-120V from Larson Electronics is a Direct Burial Transformer that is completely potted and has a NEMA 12 rated enclosure for direct burial. With a transformer rating of 500 VA, the MT-DBXF-240V-500VA-120V has a primary voltage of 240 V and a secondary voltage of 120 V.
The MT-DBXF-240V-500VA-120V is a direct burial magnetic transformer that can be used in direct burial applications. This isolation type magnetic transformer uses 240 V AC primary voltage and has a secondary voltage of 120 V. This transformer is fully potted for moisture resistance and the enclosure is rated NEMA 12 which makes it suitable for use in direct burial applications. This direct burial transformer is equipped with two feet of 12/2 direct burial cable on both sides to allow operators to complete wiring connections.
Suggested Applications:
Landscape lighting, outdoor lighting, pool/spa applications, fountains and any other situation that requires a direct burial transformer.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Device Type: Direct Burial Magnetic Transformer
Transformer Dimensions: 7.19"H x 5.25"W x 4.75"D
Enclosure Dimensions (Approx.): ~10.00"H x 8.00"W x 8.00"D
Transformer Weight: 26.6 lb
Total Weight (Approx.): ~ 32 lb
Frequency: 50/60 Hz
kVA: 0.5 kVA (500 VA)
Primary Voltage: 240 V AC
Phase: Single Phase
Secondary Voltage: 120 V AC
Number of Taps: (3) - 1 Per Circuit
Hubs: 1/2" & 3/4" NPT on Bottom for Wiring - 1/2" NPT Hub on Top for Fixture Mounting
NEMA Rating: NEMA 12
Enclosure: Direct Burial
Short Circuit Protection: Yes
Overload Protection: Yes
Wiring: 2` 12/2 Direct Burial Cable - Input & Output Sides
