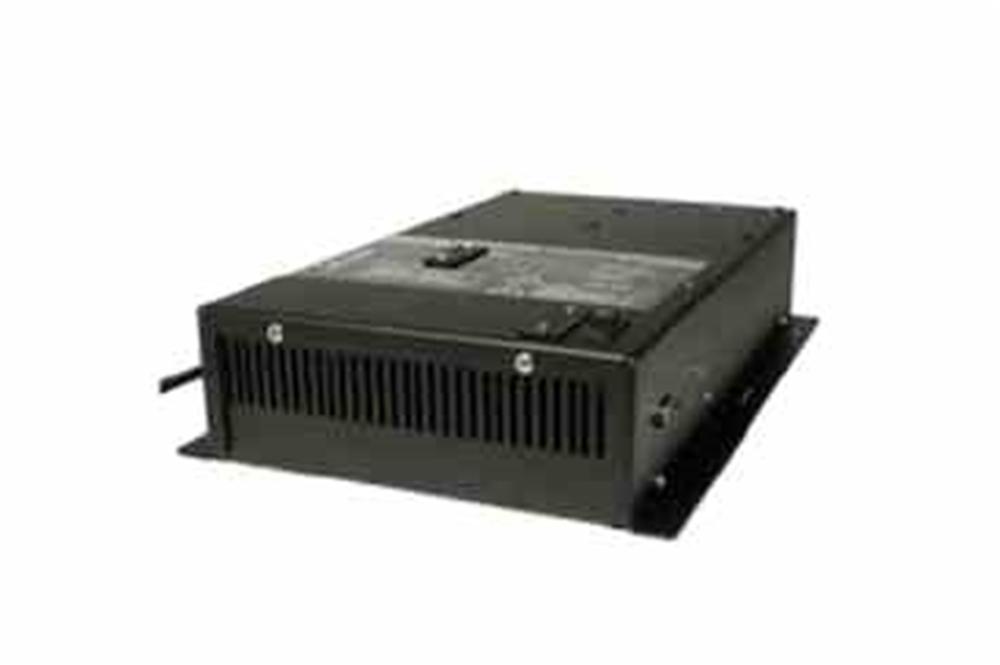

400W High Voltage DC to Low Voltage DC Converter - 125V DC Input to 24V DC Output
400W High Voltage DC to Low Voltage DC Converter - 125V DC Input to 24V DC Output
Sold by: LARSON ELECTRONICS
| MT-HVDC-125V-0.4KVA-24V-HD-R1 DC to DC Converter | Summary |
| Device Type: High Voltage DC to Low Voltage DC Converter | Shock and Vibration Resistant |
| Input Voltage Range: 125V DC (100-140V DC) |  |
| Frequency Range: - |  |
| Output DC Voltage: 24V DC @ 20 Amps (25A Peak) |  |
| Output Voltage Adjustment: ±1 | |
| Rated Power: 400W | |
| Maximum Output Power: 576W for 10 Minutes | |
| Maximum Continuous Power: 480W for 24 Hours/Day | |
| Line Regulation: |  |
| Load Regulation: | |
| Output Ripple and Noise: <50 mV rms | |
| Derating: -2.5% per °C up to +70°C | |
| Isolation: Fully Isolated Input-Output 1500V DC, Output-Case 500V DC | |
| Input Internal Fuse: 10A MDA |  |
| Protection: Over Voltage, Over Current, Short Circuit , Reverse Polarity, Over Load |  |
| Efficiency: >85% |  |
| Audible Noise: None |  |
| Operating Temp: -25°C to +40°C | |
| Housing: - | |
| Mount: Surface | |
| Output Terminals: (4) Contact Screw Terminals | |
| Dimensions: 14.5" x 10.2" x 3" | |
| Weight: 7.5 lbs | |
| The MT-HVDC-125V-0.4KVA-24V-HD-R1 from Larson Electronics is a High Voltage DC to Low Voltage DC Converter that is designed to convert input voltages ranging between 100-140V DC (125V DC) to 24V DC at 20 amps. This device supports the following protective mechanisms: over voltage, over current, short circuit, reverse polarity and over load. The 400-watt unit is suitable for use in marine-related installations, electro-mechanical applications, semi-conductor fabrication equipment and factory automation. Features: The heavy-duty DC to DC converter offers an input range of 100-140V DC (125V DC). On the output side, low voltage 24V DC is provided at 20 amps (25A peak). This 400-watt unit comes with a 10-amp MDA input fuse. Up to 480 watts of maximum continuous power can be provided for 24 hours per day using the power device. This DC to DC converter can be derated at -2.5% per °C up to +70°C. The industrial power converter comes with over voltage, over current, short circuit, reverse polarity and over load protection. This device features an efficiency rate of 85 percent and low power dissipation. The DC to DC converter does not emit noise. This unit is protected by a heavy-duty housing that is highly resistant to shock and vibration. Wiring: The MT-HVDC-125V-0.4KVA-24V-HD-R1 comes with an input cord and four, contact screw terminals for output connections. Mount: This DC to DC converter can be mounted on flat surfaces. NOTE: In order to obtain the best performance and the longest operational life from these units, it is recommended that you do not exceed 75% of the unit's output amperage. Running these units at 100% of their capacity can create excess heat and lead to shortened converter life. |
