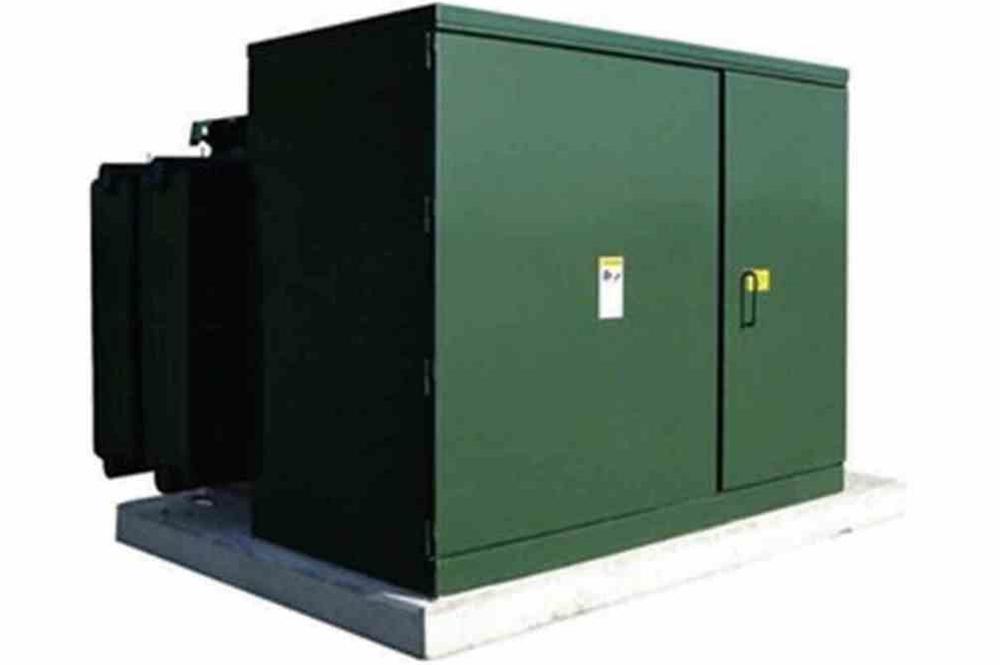

350 kVA Pad Mount Transformer - 14400GRDY/24940V Grounded Wye Primary - 120/240V Secondary - Oil Cooled - Single Phase

LARSON ELECTRONICSSKU: PL3-MT-PML-1P-14400GRDY.24940-350KVA-120.240V-N3R
filler

Precio:
Precio de venta$68,966.00

Descripción

Specifications / Additional Information
MT-PML-1P-14400GRDY.24940-350KVA-120.240V-N3R Pad Mount Transformer Ratings
Phase: Single Phase NRTL Listed for United States and Canada
Frequency: 60 Hz Oil Cooled
kVA: 350 IP14 Rated
Primary Voltage: 14400GRDY/24940 V Grounded Wye Dead Front, Loop Feed, Fused & Non-PCB Transformer
Primary Connection: Grounded Wye
Secondary Voltage: 120/240
Secondary Connection: -
Taps: -
Efficiency: 2016 DOE Compliant
Winding Material: Aluminum
Insulation: 220°C
Temperature Rise: 65°C
Primary Termination (Std): -
Secondary Termination (Std): -
Accessories: Drain Valve
Enclosure Material: NEMA Type 3R Heavy Duty Ventilated Special Orders - Requirements
Finish: Munsell 7.0 GY 3.29/1.5 Bell Green
Dimensions: -
Weight:
Mounting: Pad Mount
' Product Overview '
The MT-PML-1P-14400GRDY.24940-350KVA-120.240V-N3R 14400GRDY/24940 V 1 Phase Dead Front Loop Feed Energy Efficient Oil Cooled Pad Mount Transformer from Larson Electronics is powerful, reliable and designed with the environment in mind. Suitable for both indoor and outdoor applications, the MT-PML-1P-14400GRDY.24940-350KVA-120.240V-N3R provides increased reliablity and protection against critical equipment failures. The lower operating costs, lower heat emissions and lower cost of ownership make this transformer ideal for a wide range of applications and businesses. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* Transformer Features: With a transformer rating of 350 kVA, the MT-PML-1P-14400GRDY.24940-350KVA-120.240V-N3R transformer is a single phase unit with a primary voltage of 14400GRDY/24940 V Grounded Wye. It also provides a secondary voltage of 120/240 V. Featuring robust construction, this unit's cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology. This oil cooled unit boasts a low cost of ownership and is highly energy efficient. Lower heat emissions mean less cooling is needed as well. The Standard Type 3R enclosure makes the unit suitable for both indoor and outdoor applications and it can be pad mounted. The unit also features oil cooling with a 65°C temperature rise and is rated IP14. Benefits: The MT-PML-1P-14400GRDY.24940-350KVA-120.240V-N3R general purpose oil cooled transformer offers many benefits to the consumer. Precision cut aluminum transformer winding material help to improve performance on this fused, non-PCB transformer. The close tolerances used during manufacturing also eliminates burrs which hinder performance. Each core is specially coated to prevent the ingress of moisture and are electrically balanced to minimize axial forces during short circuit situations. This transformer provides owners with significant energy savings as well as offering environmental benefits. Higher efficiency not only extends the life of the transformer, but also turn into cost savings for owners in the form of lower energy bills and decreased cost of ownership. Applications: General purposes. Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
