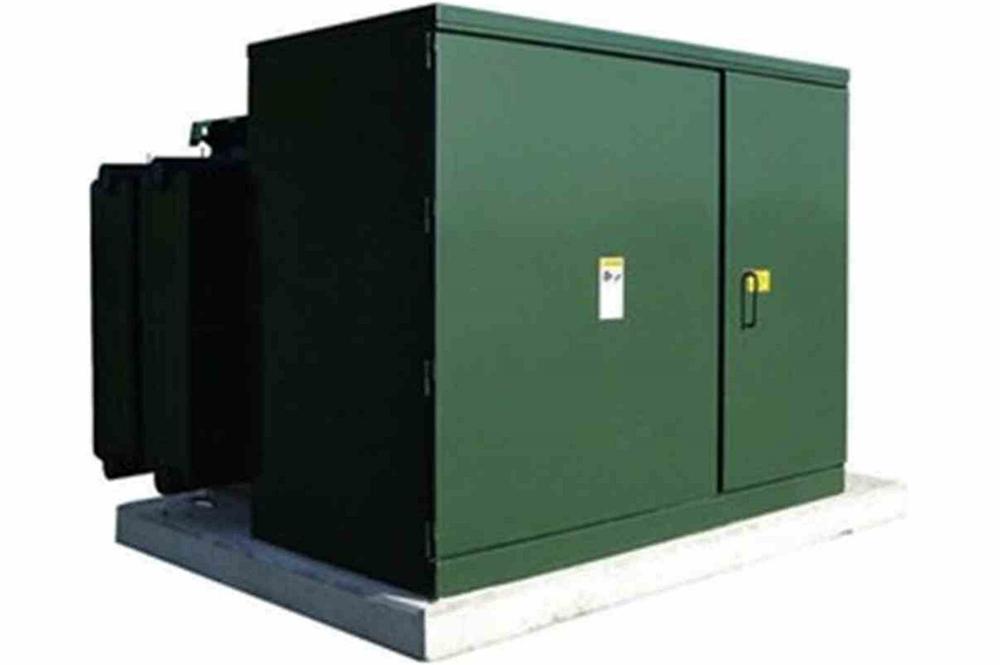

3750 kVA Pad Mount Transformer - 12470V Delta Primary - 4160V Delta Secondary - Oil Cooled - N3R

LARSON ELECTRONICSSKU: PL3-MT-PML-3P-12470D-3750KVA-4160D-N3R
filler

Precio:
Precio de venta$249,428.00

Descripción

Specifications / Additional Information
MT-PML-3P-12470D-3750KVA-4160D-N3R Pad Mount Transformer Ratings
Phase: Three Phase Listed for United States and Canada
Frequency: 60 Hz ONAN Cooling
kVA: 3750 IP24 Rated
Primary Voltage: 12470V Delta Mineral Oil Filled
Primary kV Class: 15 kV Dead Front
Primary Connection: Delta Radial Feed
Primary BIL: 60 kV
Taps: None
Tap Changer: None
High Voltage Bushings: (3) 600 A, 15/25 kV Deadbreak Cooper One Piece Bushings
Neutral Bushing: 250 A Porcelain 2-Hole Spade Bushing(s)
Load-Breaking Switch: None
Arresters: None
Overcurrent Protection: None
Secondary Voltage: 4160V Delta
Secondary Connection: Delta
Secondary BIL: 30 kV
Low Voltage kV Class: 1.2 kV
Low Voltage Bushings: (4) Integral Copper 12-Hole Spade Bushing(s)
Bushing Supports: Standard LV Bushing Support Assembly
IEEE K-Dimension: Radial Feed per IEEE C57.12.34-2015 Figure 10 Minimum Dimensions (Without Bails)
Notifications: (1) Danger High Voltage Decal
IR Windows: No Window Required
Gauge Location: Inside Main Cabinet on Front Plate
Gauges & Fittings: Liquid Level Gauge
Gauges & Fittings: Thermometer - Dial Type
Gauges & Fittings: Pressure/Vacuum Gauge
Gauges & Fittings: Drain Valve (1") w/ Sampler in LV Compartment
Gauges & Fittings: Pressure Relief Device, 35 SCFM
Tank Accessories: (3) IEEE Standard Two-Hole Ground Pads
Winding Material: Aluminum
Efficiency Standard: None
Cooling Class: ONAN
Insulating Fluid: Mineral Oil
Fluid Volume: 717 Gallons
Fluid Weight: 5342 lb
Elevation: Designed for Operation at 1000M (3300`) Above Sea Level
Temperature Rise: 65°C
Impedance (Std): 5.74%
Sound Level: NEMA TR1 Standard
Cabinet: 24" Deep Cabinet
Cover: Welded Cover w/ Handhole
Cabinet Hardware: Penta-Head Cabinet Door Bolts
Finish: Munsell Green (Munsell 7GY 3.29/1.5) Topcoat
Dimensions: -
Weight: 19515 lb
Mounting: Pad Mount
' Product Overview '
The MT-PML-3P-12470D-3750KVA-4160D-N3R 13800 V Delta 3 Phase Energy Efficient Pad Mount Dead Front Radial Feed Transformer from Larson Electronics is powerful, reliable and designed with the environment in mind. Suitable for both indoor and outdoor applications, the MT-PML-3P-12470D-3750KVA-4160D-N3R provides increased reliablity and protection against critical equipment failures. The lower operating costs, lower heat emissions and lower cost of ownership make this transformer ideal for a wide range of applications and businesses. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* Transformer Features: With a transformer rating of 3750 kVA, the MT-PML-3P-12470D-3750KVA-4160D-N3R transformer is a three phase unit with a primary voltage of 12470V Delta. It also provides a secondary voltage of 4160V Delta. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology. This unit boasts a low cost of ownership and is highly energy efficient. Lower heat emissions mean less cooling is needed as well. The Standard NEMA Type 3R enclosure makes the unit suitable for either indoor or outdoor applications and it can be pad mounted. The unit also features mineral oil cooling and a 65°C temperature rise and is rated IP24. The MT-PML-3P-12470D-3750KVA-4160D-N3R is designed so that no excess oil heating occurs from unbalanced loads or phase loss on the primary side. Benefits: MT-PML-3P-12470D-3750KVA-4160D-N3R pad mount dead front radial feed transformer offers many benefits to the consumer. Precision cut aluminum transformer winding material help to improve performance. The close tolerances used during manufacturing also eliminates burrs which hinder performance. Each core is specially coated to prevent the ingress of moisture and are electrically balanced to minimize axial forces during short circuit situations. This transformer provides owners with significant energy savings as well as offering environmental benefits. Higher efficiency not only extends the life of the transformer, but also turn into cost savings for owners in the form of lower energy bills and decreased cost of ownership. Integrated floor and wall mounting brackets make installation fast and easy and the offset outward facing floor installation holes allow for easy power tool access. Applications: General purposes. Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
