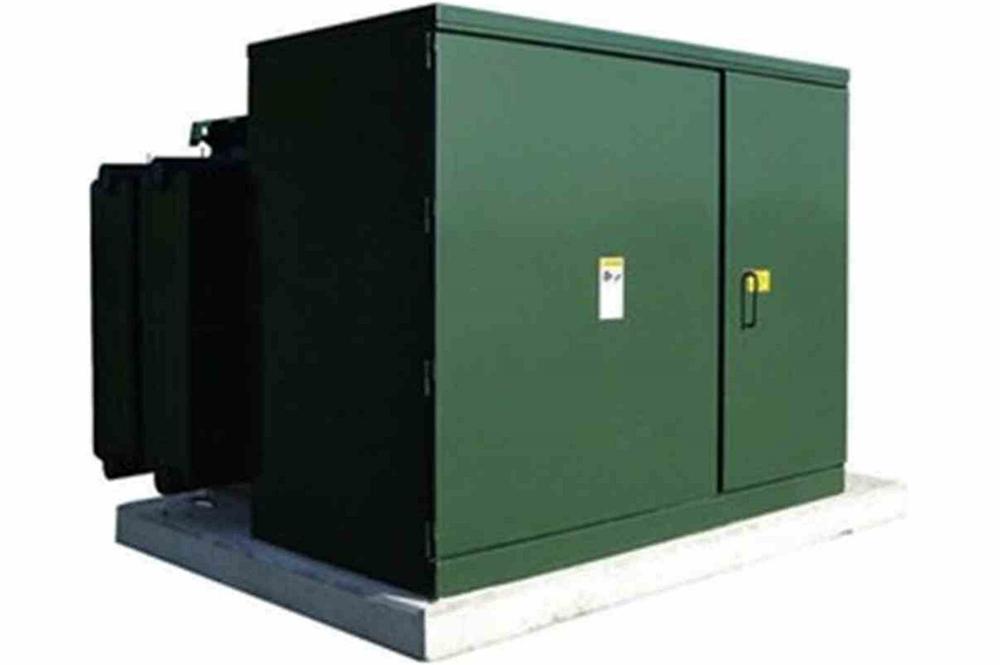

500 kVA Pad Mount Transformer - 13200V Delta Primary - 480Y/277 Wye Secondary - Oil Cooled

LARSON ELECTRONICSSKU: PL3-MT-PML-3P-13200D-500KVA-480Y.277-N3R
filler

Precio:
Precio de venta$98,520.00

Descripción

Specifications / Additional Information
MT-PML-3P-13200D-500KVA-480Y.277-N3R Pad Mount Transformer Ratings
Phase: Three Phase Listed for United States and Canada
Frequency: 60 Hz ONAN Cooling
kVA: 500 IP24 Rated
Primary Voltage: 13200 V Delta Mineral Oil Filled
Primary Connection: Delta
High Voltage Bushings: -
Secondary Voltage: 480Y/277 Wye
Secondary Connection: Wye
Low Voltage Bushings: -
Winding Material: Aluminum
Efficiency: -
Cooling Class: ONAN
Insulating Fluid: Mineral Oil
Fluid Volume: -
Fluid Weight: -
Temperature Rise: 65°C
Finish: Munsell Green (Munsell 7GY 3.29/1.5) Topcoat
Dimensions: -
Weight: -
Mounting: Pad Mount
' Product Overview '
The MT-PML-3P-13200D-500KVA-480Y.277-N3R 13200D 3 Phase Energy Efficient Pad Mount Transformer from Larson Electronics is powerful, reliable and designed with the environment in mind. Suitable for both indoor and outdoor applications, the MT-PML-3P-13200D-500KVA-480Y.277-N3R provides increased reliablity and protection against critical equipment failures. The lower operating costs, lower heat emissions and lower cost of ownership make this transformer ideal for a wide range of applications and businesses. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* Transformer Features: With a transformer rating of 500 kVA, the MT-PML-3P-13200D-500KVA-480Y.277-N3R transformer is a three phase unit with a primary voltage of 13200 V Delta. It also provides a secondary voltage of 480Y/277 Wye. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology. This unit boasts a low cost of ownership and is highly energy efficient. Lower heat emissions mean less cooling is needed as well. The Standard NEMA Type 3R enclosure makes the unit suitable for both indoor and outdoor applications and it can be floor mounted. The unit also features mineral oil cooling, a 65°C temperature rise, and is rated IP24. The MT-PML-3P-13200D-500KVA-480Y.277-N3R is designed so that no excess oil heating occurs from unbalanced loads or phase loss on the primary side. Benefits: The MT-PML-3P-13200D-500KVA-480Y.277-N3R pad mount transformer offers many benefits to the consumer. Precision cut aluminum transformer winding material help to improve performance. The close tolerances used during manufacturing also eliminates burrs which hinder performance. Each core is specially coated to prevent the ingress of moisture and are electrically balanced to minimize axial forces during short circuit situations. This transformer provides owners with significant energy savings as well as offering environmental benefits. Higher efficiency not only extends the life of the transformer, but also turn into cost savings for owners in the form of lower energy bills and decreased cost of ownership. Integrated floor and wall mounting brackets make installation fast and easy and the offset outward facing floor installation holes allow for easy power tool access. Applications: General purposes. Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
