Descripción
Specifications / Additional Information
MT-PML-3P-13800D-30KVA-480Y.2277-N3R Pad Mount Transformer | Ratings |
Phase: Three Phase | Listed for United States and Canada |
Frequency: 60 Hz | ONAN Cooling |
kVA: 30 | IP24 Rated |
Primary Voltage: 13800 V Delta | Mineral Oil Filled |
Primary Connection: Delta | |
High Voltage Bushings: - | |
Secondary Voltage: 480Y/277 Wye | |
Secondary Connection: Wye | |
Low Voltage Bushings: - | |
Winding Material: Aluminum | |
Efficiency: - | |
Cooling Class: ONAN | |
Insulating Fluid: Mineral Oil | |
Fluid Volume: 110 Gallons | |
Fluid Weight: - | |
Temperature Rise: 65°C | |
Finish: Munsell Green (Munsell 7GY 3.29/1.5) Topcoat | |
Dimensions: 50.00"H x 68.00"W x 39.00"D | |
Weight: 2100 lb | |
Mounting: Pad Mount | |

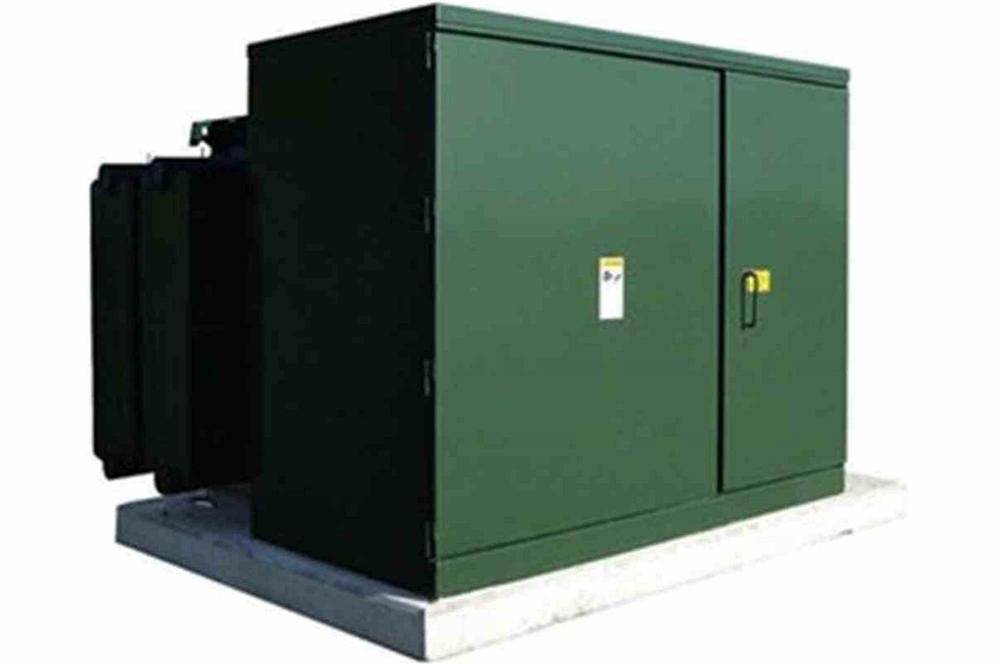

The MT-PML-3P-13800D-30KVA-480Y.2277-N3R 13800 V Delta 3 Phase Energy Efficient Pad Mount Transformer from Larson Electronics is powerful, reliable and designed with the environment in mind. Suitable for both indoor and outdoor applications, the MT-PML-3P-13800D-30KVA-480Y.2277-N3R provides increased reliability and protection against critical equipment failures. The lower operating costs, lower heat emissions and lower cost of ownership make this transformer ideal for a wide range of applications and businesses. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* Transformer Features: With a transformer rating of 30 kVA, the MT-PML-3P-13800D-30KVA-480Y.2277-N3R transformer is a three phase unit with a primary voltage of 13800 V Delta. It also provides a secondary voltage of 480Y/277 V Wye. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology. This unit boasts a low cost of ownership and is highly energy efficient. Lower heat emissions mean less cooling is needed as well. The Standard NEMA Type 3R enclosure makes the unit suitable for both indoor and outdoor applications and it can be pad mounted. The unit also features mineral oil cooling, a 65°C temperature rise, and is rated IP24. The MT-PML-3P-13800D-30KVA-480Y.2277-N3R is designed so that no excess oil heating occurs from unbalanced loads or phase loss on the primary side. Benefits: The MT-PML-3P-13800D-30KVA-480Y.2277-N3R pad mount transformer offers many benefits to the consumer. Precision cut aluminum transformer winding material help to improve performance. The close tolerances used during manufacturing also eliminates burrs which hinder performance. Each core is specially coated to prevent the ingress of moisture and are electrically balanced to minimize axial forces during short circuit situations. This transformer provides owners with significant energy savings as well as offering environmental benefits. Higher efficiency not only extends the life of the transformer, but also turn into cost savings for owners in the form of lower energy bills and decreased cost of ownership. Integrated floor and wall mounting brackets make installation fast and easy and the offset outward facing floor installation holes allow for easy power tool access. Applications: General purposes. Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements. |
