840W AC to DC Dual Power Supply - 110-240V AC to 0-60V DC - 20A Max - Digital

LARSON ELECTRONICSSKU: PL3-MT-PSU-ADC-400-R1
filler

Precio:
Precio de venta$9,054.00

Descripción

Specifications / Additional Information
MT-PSU-ADC-400-R1 AC to DC Dual Power Supply Ratings
Unit Type: AC/DC Power Supply (Digital) Bus Programmable
Dimensions: 14.843" L x 8.268" W x 5.118" H
Weight: 20.3 lbs
Input Voltage: 110-240V AC +/- 10% @ 50/60Hz
Output Voltage: 0-60V DC (Programmable)
Maximum Amps: 20A
Rated Power: 840W (420W per Output)
Ripple: 3mV rms, 15mV p-p
Voltage Regulation - Line: 0.05%
Voltage Regulation - Load: 0.01%
Current Regulation - Line: 0.01%
Display Type: Dual, Digital
Number of Characters: (2) 4, 4
Interfaces: Constant Current and Constant Voltage Indicators/PowerFlex Regulation
Digital Remote Control: USB, RS232, LAN & GPIB
Driver Software: Included
Operating Temp: +5ºC to +40ºC
Materials: -
Mount: Rack Mount or Standalone
Outputs: (2)
Color: White
' Product Overview '

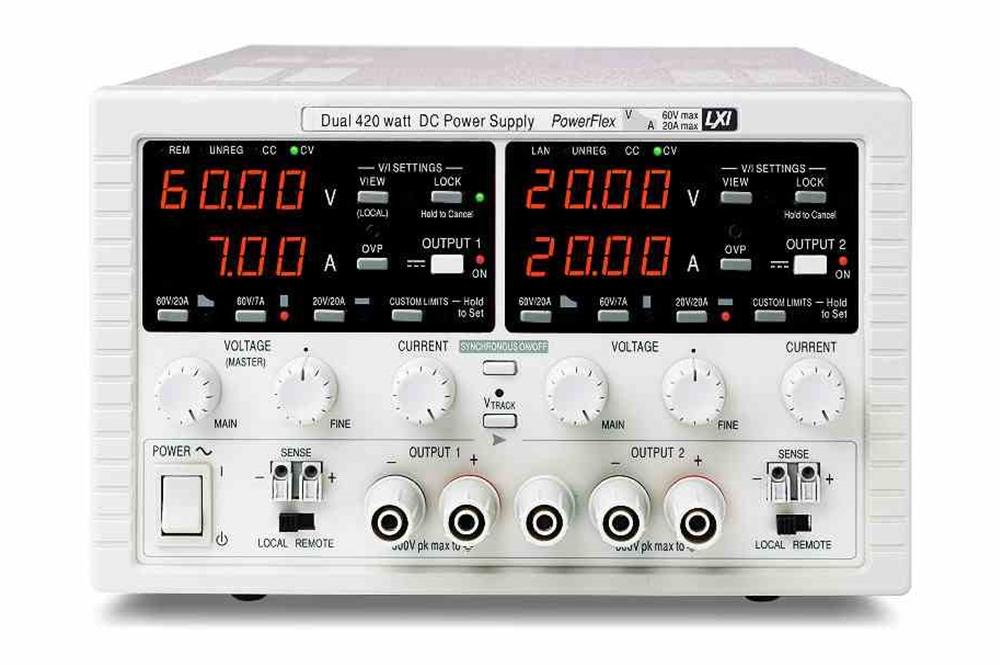

The MT-PSU-ADC-400-R1 from Larson Electronics is a Dual Output AC/DC Power Supply that provides accurate voltage control and power management features for industrial operations. This 20-amp unit is compatible with 110-240V AC @ 50-60 Hz input voltage and provides 0-60V DC output voltage. Equipped with protective functions, the device features dual digital displays for two sets of +/- DC outputs. This power supply is compatible with rack mounting installations or can be used as a standalone unit. The MT-PSU-ADC-400-R1 is a compact AC/DC power supply with a digital interface for industrial facilities. The dual output unit accepts an input voltage range of 110-240V AC +/-10% @ 50/60Hz and offers an output voltage range of 0-60V DC. This 20-amp device is rated at 840W and contains two displays for dedicated output controls. Monitoring interfaces include the following: constant current indicators, constant voltage indicators and powerFlex regulation. Digital remote control is facilitated by USB, RS-232, GPIB and LAN (LXI). Operators may access two sets of +/- DC outputs on the unit. Mounting: The MT-PSU-ADC-400-R1 is suitable for rack mounting applications or standalone use on flat surfaces. Applications: Industrial sites, factory control, automation, laser machines, manufacturing, voltage control, power management, digital broadcasting, RF applications, computerized systems and more.
