Larson 50kA Surge Protective Device - 120/240V 1PH, 50/60Hz - Wire Leads - Type 1 SPD - N4X

Larson ElectronicsSKU: PL3-MT-SRG-T1SP-1PH-50KA-120.240V-N4X
filler

Precio:
Precio de venta$1,034.00

Descripción

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please email us at info@purilite.ca to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

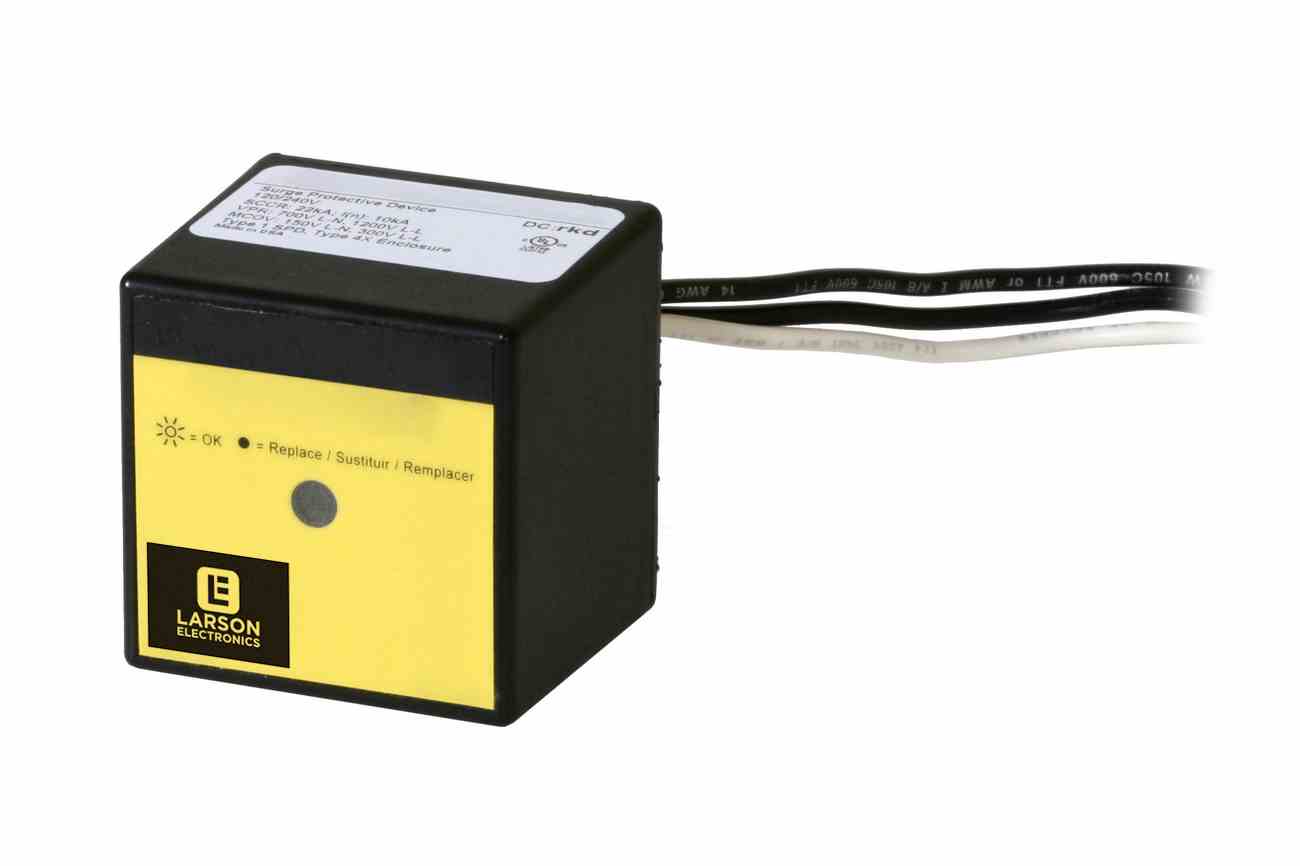

The Larson Electronics MT-SRG-T1SP-1PH-50KA-120.240V-N4X Surge Protective Device actively protects electrical systems and sensitive equipment in rugged work sites. This Type 1 SPD is compatible with single-phase 120/240V AC, 50/60Hz and is rated at 50kA maximum surge current per phase. Equipped with green diagnostic LEDs, the NEMA 4X rated device is constructed of steel.
The MT-SRG-T1SP-1PH-50KA-120.240V-N4X offers electrical protection for heavy-duty equipment in industrial buildings. This surge protective device operates with single-phase 120/240V AC, 50/60Hz. Equipped with a 3-wire + G configuration, the unit caters to 50kA maximum surge current per phase and up to -30dB EMI/RFI. Diagnostic LEDs located at the front of the device indicate normal and fault operating conditions for L1 and/or L2.
The industrial SPD is constructed of steel. A NEMA 4X rating provides protection against ingress of water, dust/debris, corrosion and external formation of ice. As a Type 1 surge protective device, the unit is designed for installation between the secondary side of the utility service transformer and the line side of the system's overcurrent protective device. Alternatively, operators may also install the SPD at the main service equipment (load side).
Wiring:
This surge protective device accommodates #12 AWG wire leads.
Mount:
The MT-SRG-T1SP-1PH-50KA-120.240V-N4X is compatible with surface mounting applications.
Larson Electronics is a manufacturer and we can build portable power distribution systems to your Specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
to discuss your specific requirements.

Specifications
Listing: -
Dimensions:
Weight:
Voltage:
Phase:
Frequency:
Max. Surge Current per Phase:
Configuration:
EMI/RFI:
Diagnostics Indicators:
Max. Operating Temperature:
Materials:
Mount:
Terminal Accommodation:
Voltage Protection Rating (L-N):
Voltage Protection Rating (L-G):
Voltage Protection Rating (L-L):
SCCR
: -
MCOV:
In:
