840W Delta to DC Transformer - 480V Delta to 12V DC - 70 Amps, Fan Cooled - N3R

LARSON ELECTRONICSSKU: PL3-MT-TX-480D-0.84KVA-12V.DC-70A-N3R
filler

Precio:
Precio de venta$9,388.00

Descripción

Specifications / Additional Information
MT-TX-480D-0.84KVA-12V.DC-70A-N3R - Delta to DC Transformer Ratings
Unit Type: Industrial Delta to DC Transformer NRTL Certified to United States and Canada
Dimensions: 12" W x 6" D x 18"H NRTL Certified to UL 508A
Weight: - NRTL Certified to CSA C22.2 No. 14
Input Voltage: 480 V Delta Class A/B EMC Filter
Output Voltage: 12 V DC NEMA 3R Weatherproof
Output Amps: 70 A
Max Capacity: 840W (0.84 K=kVA)
Cooling: Fan Special Orders - Requirements
Operating Temp: -40°C to +65°C
Materials: Steel
Finish: Powder Coated
Mount: Wall
Input/Output Connections: Terminal Blocks
' Product Overview '

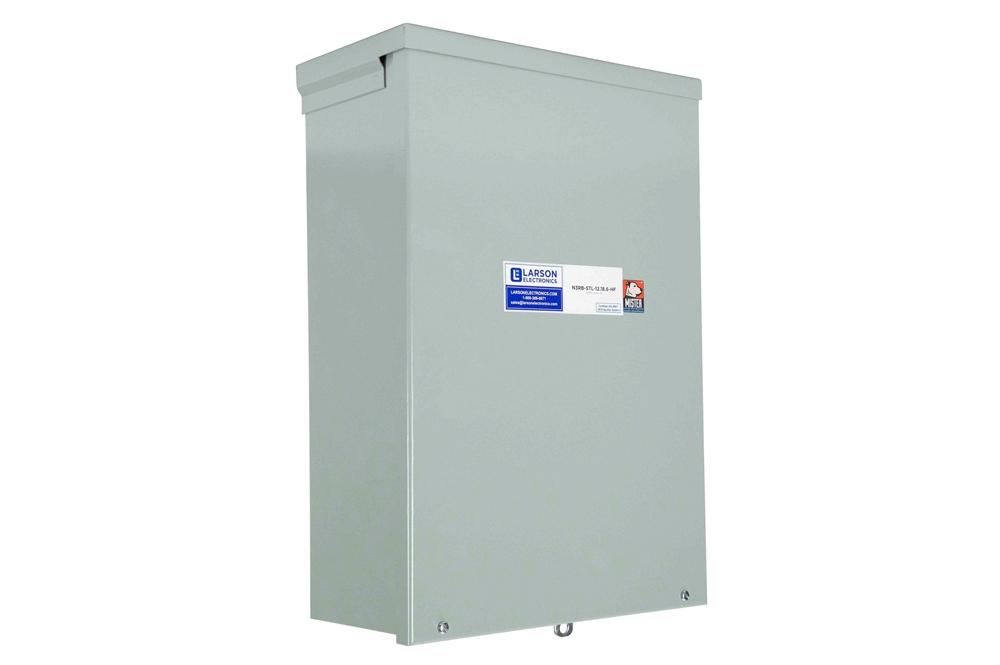

The Larson Electronics MT-TX-480D-0.84KVA-12V.DC-70A-N3R Weatherproof Delta to DC Transformer converts three phase 480 V Delta electrical current to 12 V DC at 70 amps max. This converter includes terminal block connections for input/output terminations. The unit takes three phase 480 V Delta current and converts it to 12 volts DC, allowing users to use 36V DC power to operate equipment like our LED light bars and Golights. The MT-TX-480D-0.84KVA-12V.DC-70A-N3R power converter provides a safe and effective way for users to tap into and utilize three phase 480 V Delta power sources and convert this current to 12 V DC. This unit can be operated with 480 V Delta input current and will output 12 V DC current to power lights and equipment up to 840 watts. The small size of this unit makes it ideal for indoor-outdoor operation of Larson Electronics LED light bars, Golights and other equipment that requires 12 V DC current in locations where three phase 480 V Delta power is readily available. Features: The MT-TX-480D-0.84KVA-12V.DC-70A-N3R converter can be operated with three phase 480 V Delta voltage. The unit converts this power input to 840 watts, 12 V DC at 70 amps. This power device is equipped with a Class A/B EMC filter and utilizes fan cooling. The transformer is enclosed in a powder coated steel housing for durability. The power converter has a -40°C to +65°C operating temperature range. This converter is equipped with terminal block connections for input/output terminations. Operators can mount the unit on walls. NOTE: In order to obtain the best performance and the longest operational life from these units, it is recommended that you do not exceed 75% of the unit’s output amperage. To determine if this converter suits your desired application, add together the total wattage of the equipment you intend to use with this unit and divide this total by 12 volts to find the total amperage draw that will be placed upon the converter. Running these units at 100% of their capacity can create excess heat and lead to shortened converter life.
