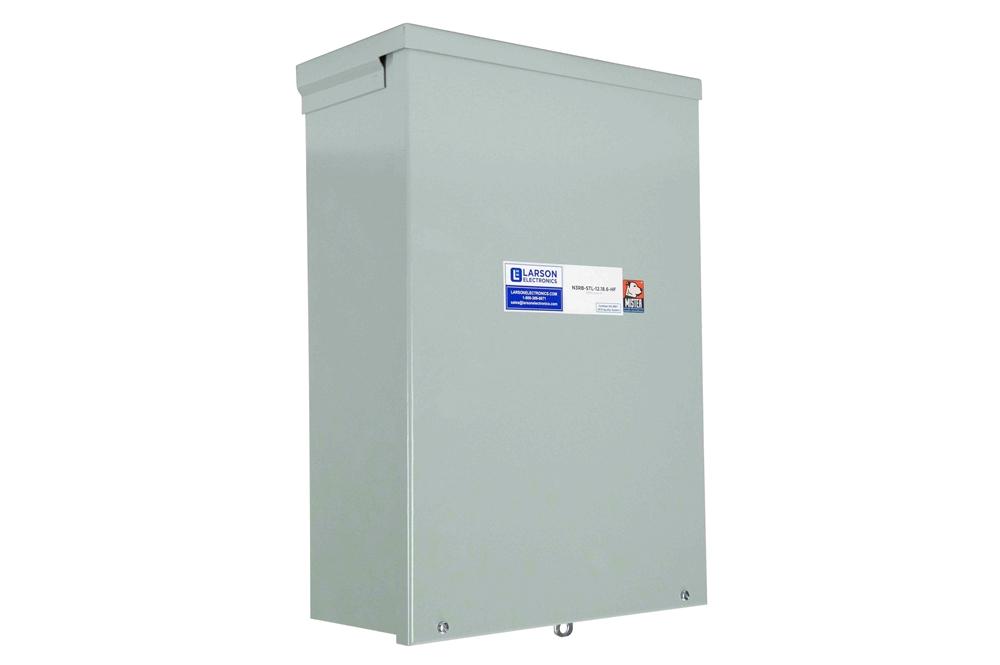

2400W DC to DC Transformer - 24V DC to 120V DC - 20 Amps, Fan Cooled - N3R

LARSON ELECTRONICSSKU: PL3-MT-TX-DC-24V-2.4KVA-120V-20A-N3R
filler

Precio:
Precio de venta$13,924.00

Descripción

Specifications / Additional Information
MT-TX-DC-24V-2.4KVA-120V-20A-N3R - DC to DC Step-up Transformer Ratings
Unit Type: Industrial DC to DC Transformer Certified to United States and Canada
Dimensions: 14" W x 12" D x 24"H NRTL Certified to UL 508A
Weight: - NRTL Certified to CSA C22.2 No. 14
Input Voltage: 24V DC Class A/B EMC Filter
Output Voltage: 120V DC NEMA 3R Weatherproof
Output Amps: 20A
Max Capacity: 2400W (2.4 KVA)
Cooling: Fan
Operating Temp: -40°C to +65°C
Materials: Steel
Finish: Powder Coated
Mount: Wall
Input/Output Connections: Terminal Blocks
' Product Overview '
The Larson Electronics MT-TX-DC-24V-2.4KVA-120V-20A-N3R Weatherproof DC to DC Step-up Transformer converts 24V DC electrical current to 120V DC at 20 amps max. This converter includes terminal block connections for input/output terminations. The unit takes 24 volts DC and converts it to 120 volts DC, allowing users to use 120V DC power to operate equipment like our LED light bars and Golights. The MT-TX-DC-24V-2.4KVA-120V-20A-N3R power converter provides a safe and effective way for users to tap into and utilize 24V DC power sources and step up this current to 120V DC. This unit can be operated with 24V DC input current and will output 120V DC current to power lights and equipment up to 2400 watts. The small size of this unit makes it ideal for indoor-outdoor operation of Larson Electronics LED light bars, Golights and other equipment that requires 120V DC current in locations where 24V DC power is readily available. Features: The MT-TX-DC-24V-2.4KVA-120V-20A-N3R converter can be operated with 24V DC. The unit converts this DC power input to 2400 watts, 120V DC at 20 amps. This power device is equipped with a Class A/B EMC filter and utilizes fan cooling. The transformer is enclosed in a powder coated steel housing for durability. The power converter has a -40°C to +65°C operating temperature range. This converter is equipped with terminal block connections for input/output terminations. Operators can mount the unit on walls. NOTE: In order to obtain the best performance and the longest operational life from these units, it is recommended that you do not exceed 75% of the unit’s output amperage. To determine if this converter suits your desired application, add together the total wattage of the equipment you intend to use with this unit and divide this total by 120 volts to find the total amperage draw that will be placed upon the converter. Running these units at 100% of their capacity can create excess heat and lead to shortened converter life.
