0.125KVA DC to DC Transformer - 72V DC to 12V DC - 10 Amps, Fan Cooled - N3R

LARSON ELECTRONICSSKU: PL3-MT-TX-DC-72V-0.12KVA-12V-10A-N3R
filler

Precio:
Precio de venta$3,998.00
 Más opciones de pago

Descripción

Specifications / Additional Information
MT-TX-DC-72V-0.12KVA-12V-10A-N3R - DC to DC Step-down Transformer Ratings
Unit Type: Industrial DC to DC Transformer Certified to United States and Canada
Dimensions: 12" W x 6" D x 18"H NRTL Certified to UL 508A
Weight: - NRTL Certified to CSA C22.2 No. 14
Input Voltage: 72V DC Class A/B EMC Filter
Output Voltage: 12V DC NEMA 3R Weatherproof
Output Amps: 10A
Max Capacity: 0.125 KVA
Cooling: Fan
Operating Temp: -40°C to +65°C
Materials: Steel
Finish: Powder Coated
Mount: Wall
Input/Output Connections: Terminal Blocks
' Product Overview '

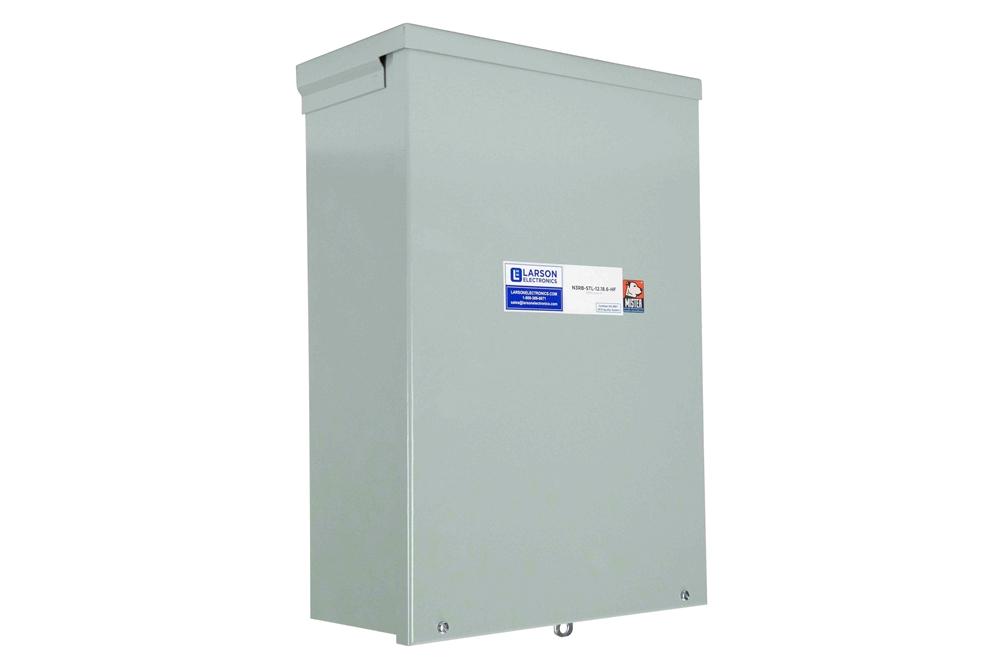

The Larson Electronics MT-TX-DC-72V-0.12KVA-12V-10A-N3R Weatherproof DC to DC Step-down Transformer converts 72V DC electrical current to 12V DC at 10 amps max. This converter includes terminal block connections for input/output terminations. The unit takes 72 volts DC and converts it to 12 volts DC, allowing users to use 72V DC power to operate equipment like our LED light bars and Golights. The MT-TX-DC-72V-0.12KVA-12V-10A-N3R  power converter provides a safe and effective way for users to tap into and utilize 72V DC power sources and step down this current to 12V DC. This unit can be operated with 72V DC input current and will output 12V DC current to power lights and equipment. The small size of this unit makes it ideal for indoor-outdoor operation of Larson Electronics LED light bars, Golights and other equipment that requires 12V DC current in locations where 72V DC power is readily available. Features: The MT-TX-DC-72V-0.12KVA-12V-10A-N3R converter can be operated with 72V DC. The unit converts this DC power input to 0.125 KVA, 12V DC at 10 amps. This power device is equipped with a Class A/B EMC filter and utilizes fan cooling. The transformer is enclosed in a powder coated steel housing for durability. The power converter has a -40°C to +65°C operating temperature range. This converter is equipped with terminal block connections for input/output terminations. Operators can mount the unit on walls. NOTE: In order to obtain the best performance and the longest operational life from these units, it is recommended that you do not exceed 75% of the unit™s output amperage. To determine if this converter suits your desired application, add together the total wattage of the equipment you intend to use with this unit and divide this total by 36 volts to find the total amperage draw that will be placed upon the converter. Running these units at 100% of their capacity can create excess heat and lead to shortened converter life.
