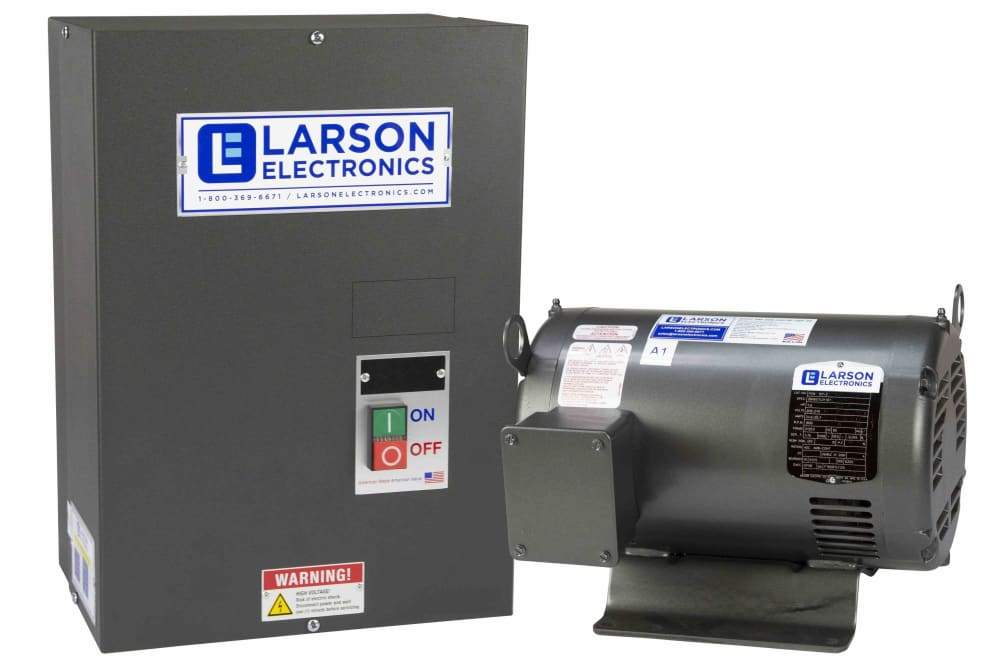

Rotary Phase Converter for 30HP Hard Loads, 440V 1PH to 3PH, 21.45 Amps Output, 60HP Idler, NEMA 1

LARSON ELECTRONICSSKU: PL3-MTPC-HD-RB-440V-60HP-30HP-N1
filler

Precio:
Precio de venta$14,464.00

Descripción

Specifications / Additional Information
MTPC-HD-RB-440V-60HP-30HP-N1 Rotary Phase Converter Ratings/Approvals
Unit Type: Rotary Phase Converter Indoor Use (NEMA 1)
Phase Conversion: Single Phase to Three Phase Built-in Motor Starter
Kilowatt Rating: 44.7 KW Start/Stop Push Button Switch
Kilo Volt-Amp Rating: 60 KVA Accurate Voltage Balancing
Idle Motor Horse Power: 60 HP Power Indicator Light
Single Phase Voltage Input: 440V Made in the USA
Minimum Fuse/Circuit Breaker Size: 50
Maximum Fuse/Circuit Breaker Size: 150
Minimum Wire (Input) to Converter: 1/0 AWT
Minimum Electrical Service Required: 75 KVA
Idle Amps: -
Service Load Type: Hard motor loads
Three Phase Voltage Output: 440
Maximum Single Motor Load HP: 30 HP
Recommended Combined HP: 30 HP
Optimal Output Amps: 21.45A
Maximum Output Amps: 75.5A
Maximum Resistive Amps: 42A
Voltage Balance: 2-5%
Minimum Wire to Device Load: 3 AWG
Form Factor: Rectangular Enclosure, Cylindrical Idler w/ Four Legs
Color: Natural Gray
Weight: - lbs
Dimensions: -
Shipping Weight: - lbs
Shipping Dimensions: -
' Product Overview '
Made in the USA The Larson Electronics MTPC-HD-RB-440V-60HP-30HP-N1 60 horsepower rotary phase converter is designed to convert single phase power to three phase power for Hard motor loads. This phase converter accepts a single-phase 440V input and provides a three-phase 440V output. Operators may use this rotary phase converter to power equipment and machines with Hard motor loads up to 30 horsepower and 21.45 amps that require three phase power in locations where only single phase power is available. Applications: The MTPC-HD-RB-440V-60HP-30HP-N1 is ideal for applications that utilize Hard motor loads. This includes CNC laser table, CNC lathe, CNC mill, CNC plasma table, CNC router, CNC turning machine, CNC waterjet, cooling fan, exhaust fan, gearhead lathe, industrial fan, laser cutter, laser table, plasma cutter, plasma table, plastic grinder, printing press and any other application that induces a Hard motor load up to a recommended 30 horsepower. The MTPC-HD-RB-440V-60HP-30HP-N1 rotary phase converter is suitable for converting single phase 440V on-site power to three phase 440V power for equipment. This 60 HP idler motor phase converter connects to existing 440V single phase. After conversion, the phase converter provides three-phase 440V on the output side at 21.45 continual amps with a maximum of 75.5 inrush amps. All MTPC series phase converters provide +/- 2-5% voltage balance on the output side, depending on the single phase input power, for maximum efficiency and reduced stress on the motor. This rotary phase converter features a built-in motor starter with a start/stop push button switch for seamless activation. The power distribution blocks are oversized for easy installation in the preferred location. The MTPC-HD-RB-440V-60HP-30HP-N1 control panel is housed in a NEMA 1 enclosure, making it suitable for indoor environments. This level of protection allows the rotary phase converter to withstand the ingress of solid objects, such as falling dirt. All of Larson Electronics LLC's phase converter control panels are NRTL certified to UL 508A. The MTPC series of rotary phase converters are designed to operate based on overall load size. This includes operating multiple devices from one rotary phase converter, providing the combined horsepower of all devices being operated simutaniously does not exceed the horsepower rating for the load type. This includes fractional motors up to 30 HP motors, and any combination of motor sizes in between. Instant reversal motors are no problem for the MTPC series phase converters. Each phase converter comes ready to install. Rotary Sizing: The MTPC-HD-RB-440V-60HP-30HP-N1 is sized for heavy/hard motor loads up to 30 horsepower. When correctly sized, Larson Electronics phase converters will provide years of trouble free service for your equipment. Larson Electronics offers single phase to three phase static and rotary phase converters for easy, medium, hard, and very hard motor loads. The motor load is dependant on the devices intended to operate on the phase converter. For additional load types or for additional sizes, please see the below links or call us today.
