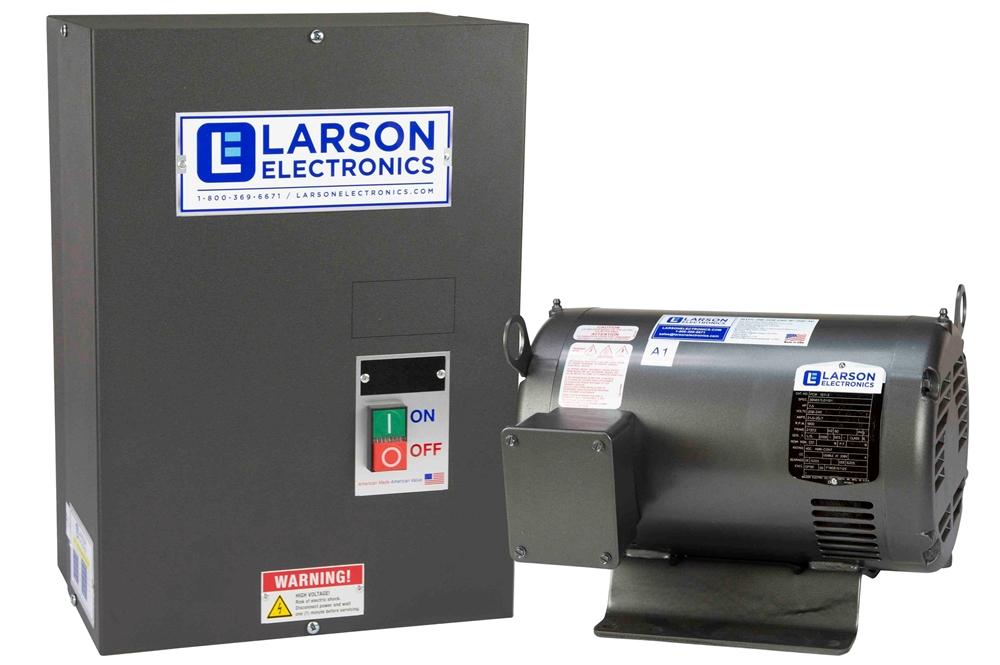

Rotary Phase Converter for 15HP Hard Loads, 480V 1PH to 3PH, 19.65 Amps Output, 30HP Idler, NEMA 1
Rotary Phase Converter for 15HP Hard Loads, 480V 1PH to 3PH, 19.65 Amps Output, 30HP Idler, NEMA 1
| MTPC-HD-RB-480V-30HP-15HP-N1 Rotary Phase Converter | Ratings/Approvals |
| Unit Type: Rotary Phase Converter | Indoor Use (NEMA 1) |
| Phase Conversion: Single Phase to Three Phase | Built-in Motor Starter |
| Horse Power: 30 HP (21.4 kW 60 Hz) | Start/Stop Push Button Switch |
| Single Phase Voltage Input: 480V | Phase Power Failure Protection |
| Input Amp Range: 35-75 | Accurate Voltage Balancing |
| Fuse/Circuit Breaker Size: 35 (Minimum)/75 (Maximum) | Power Indicator Light |
| Minimum Wire Input: 2/0 AWG | Made in the USA |
| Idle Amps: 3.71 | |
| Three Phase Voltage Output: 480V | |
| Output Amps: 40 | |
| Voltage Balance: 2-5% | |
| Minimum Wire to Generator/Load: 3 AWG | |
| Noise Level: 58bd @ 5ft | Â |
| Ambient Temp Range:-20°C to +65°C |  |
| Temp Rise: 16.5°C (30°F) |  |
| Motor Thermal Output: 45,000 BTU | Â |
| Form Factor: Rectangular Enclosure, Cylindrical Idler w/ Four Legs | |
| Dimensions: 18" X 18" X 8" (Enclosure), 19" X 11.5" (Idler) | |
| Weight: 317 lb | |
| Color: Natural Gray |
| Made in the USA The MTPC-HD-RB-480V-30HP-15HP-N1 from Larson Electronics is a Rotary Phase Converter that is designed to convert single phase power to three phase power for hard motor loads. This phase converter accepts a single-phase 480V input and provides a three-phase 480V output. Operators may use this rotary phase converter to power equipment and machines with hard motor loads up to 15 horsepower and 19.65 amps that require three phase power in locations where only single phase power is available. Applications: The MTPC-HD-RB-480V-30HP-15HP-N1 is ideal for applications that utilize hard motor loads. This includes CNC lathe, CNC mill, CNC router, CNC turning machine, CNC waterjet, cooling fan, exhaust fan, gearhead lathe, industrial fan, intake fan, ventilation fan, and any other application that induces a hard motor load up to a recommended 15 horsepower. The MTPC-HD-RB-480V-30HP-15HP-N1 rotary phase converter is suitable for converting single phase 480V on-site power to three phase 480V power for equipment. This 15 HP idler motor phase converter connects to existing 480V single phase. After conversion, the phase converter provides three-phase 480V on the output side at 19.65 continual amps with a maximum of 35.15 inrush amps. All MTPC series phase converters provide +/- 2-5% voltage balance on the output side, depending on the single phase input power. This rotary phase converter features a built-in motor starter with a start/stop push button switch for seamless activation. The power distribution blocks are oversized for easy installation in the preferred location. The MTPC-HD-RB-480V-30HP-15HP-N1 control panel is housed in a NEMA 1 enclosure, making it suitable for indoor environments. This level of protection allows the rotary phase converter to withstand the ingress of solid objects, such as falling dirt. All of Larson Electronics LLC's phase converter control panels are NRTL certified to UL 508A. Rotary Sizing: The MTPC-HD-RB-480V-30HP-15HP-N1 is sized for heavy/hard motor loads. |
