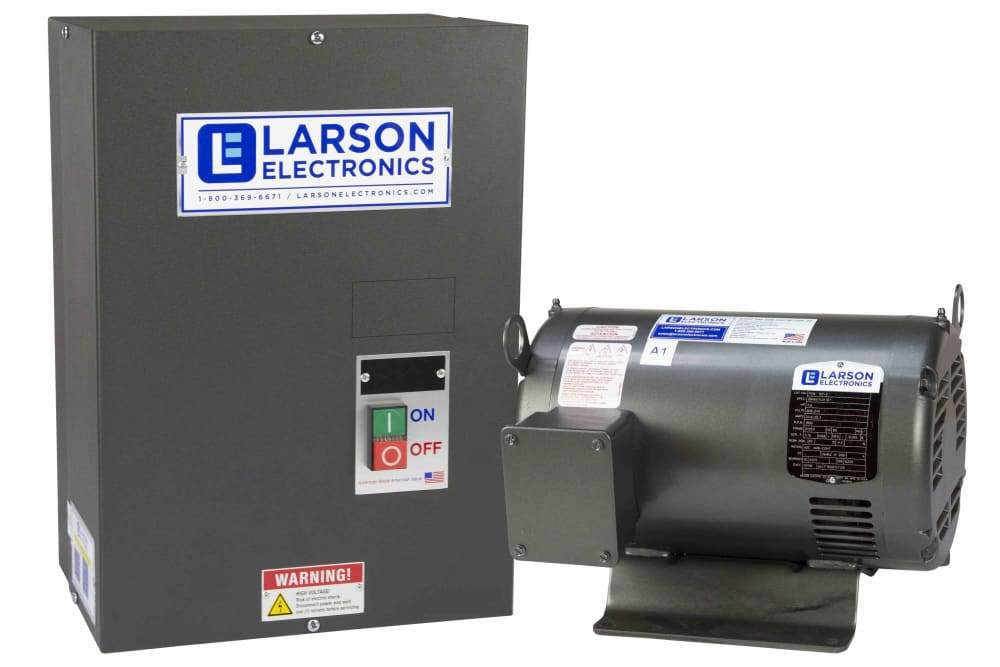

Rotary Phase Converter for 75HP Medium Loads, 575V 1PH to 3PH, 40.93 Amps Output, 125HP Idler, NEMA 1

LARSON ELECTRONICSSKU: PL3-MTPC-MD-RB-575V-125HP-75HP-N1
filler

Precio:
Precio de venta$35,976.00
 Más opciones de pago

Descripción

Specifications / Additional Information
MTPC-MD-RB-575V-125HP-75HP-N1 Rotary Phase Converter Ratings/Approvals
Unit Type: Rotary Phase Converter Indoor Use (NEMA 1)
Phase Conversion: Single Phase to Three Phase Built-in Motor Starter
Kilowatt Rating: 94 KW Start/Stop Push Button Switch
Kilo Volt-Amp Rating: 125 KVA Accurate Voltage Balancing
Idle Motor Horse Power: 125 HP Power Indicator Light
Single Phase Voltage Input: 575V Made in the USA
Minimum Fuse/Circuit Breaker Size: 100
Maximum Fuse/Circuit Breaker Size: 250
Minimum Wire (Input) to Converter: 4/0AWT
Minimum Electrical Service Required: 167 KVA
Idle Amps: -
Service Load Type: Medium motor loads
Three Phase Voltage Output: 575
Maximum Single Motor Load HP: 75 HP
Recommended Combined HP: 75 HP
Optimal Output Amps: 40.93A
Maximum Output Amps: 113.63A
Maximum Resistive Amps: 66.9A
Voltage Balance: 2-5%
Minimum Wire to Device Load: 1/0 AWT
Form Factor: Rectangular Enclosure, Cylindrical Idler w/ Four Legs
Color: Natural Gray
Weight: - lbs
Dimensions: -
Shipping Weight: - lbs
Shipping Dimensions: -
' Product Overview '
Made in the USA The Larson Electronics MTPC-MD-RB-575V-125HP-75HP-N1 125 horsepower rotary phase converter is designed to convert single phase power to three phase power for Medium motor loads. This phase converter accepts a single-phase 575V input and provides a three-phase 575V output. Operators may use this rotary phase converter to power equipment and machines with Medium motor loads up to 75 horsepower and 40.93 amps that require three phase power in locations where only single phase power is available. Applications: The MTPC-MD-RB-575V-125HP-75HP-N1 is ideal for applications that utilize Medium motor loads. This includes band saw, battery charger, bench grinder, broom maker, car wash water pump, coffee roaster, commercial blender, commercial mixer and mixing machines, conveyer belt, crane, dough mixer, dry cleaning equipment, electrical discharge machine (EDM), elevator, feed mixer, fuel pump, gasoline pump, grain bucket elevator, grain conveyer, grain dryer, grain mixer, hoist, hydraulic metal press, hydraulic metal sheer, Industrial grinder, injection molding, ironworker, irrigation center pivot systems, irrigation pump, jet fuel pump, lawn pump, machining center, manual lathe, meat grinder, meat saw, paint booth, paper cutter, paper shredder, pipe machine, pizza mixer, pizza oven, plasma cutter, plastic pump, printer, radio transmitter, refrigerator, ribbon blender, rock crusher, rotisserie, sewage pump, sewing machine, shaper, spring coiler, submersible pump, swimming pool pump, turning machine, vacuum pump, wastewater pump, water pump, welder, wheel balancer, wide belt sander, x-ray machine and any other application that induces a Medium motor load up to a recommended 75 horsepower. The MTPC-MD-RB-575V-125HP-75HP-N1 rotary phase converter is suitable for converting single phase 575V on-site power to three phase 575V power for equipment. This 125 HP idler motor phase converter connects to existing 575V single phase. After conversion, the phase converter provides three-phase 575V on the output side at 40.93 continual amps with a maximum of 113.63 inrush amps. All MTPC series phase converters provide +/- 2-5% voltage balance on the output side, depending on the single phase input power, for maximum efficiency and reduced stress on the motor. This rotary phase converter features a built-in motor starter with a start/stop push button switch for seamless activation. The power distribution blocks are oversized for easy installation in the preferred location. The MTPC-MD-RB-575V-125HP-75HP-N1 control panel is housed in a NEMA 1 enclosure, making it suitable for indoor environments. This level of protection allows the rotary phase converter to withstand the ingress of solid objects, such as falling dirt. All of Larson Electronics LLC's phase converter control panels are NRTL certified to UL 508A. The MTPC series of rotary phase converters are designed to operate based on overall load size. This includes operating multiple devices from one rotary phase converter, providing the combined horsepower of all devices being operated simutaniously does not exceed the horsepower rating for the load type. This includes fractional motors up to 75 HP motors, and any combination of motor sizes in between. Instant reversal motors are no problem for the MTPC series phase converters. Each phase converter comes ready to install. Rotary Sizing: The MTPC-MD-RB-575V-125HP-75HP-N1 is sized for heavy/hard motor loads up to 75 horsepower. When correctly sized, Larson Electronics phase converters will provide years of trouble free service for your equipment. Larson Electronics offers single phase to three phase static and rotary phase converters for easy, medium, hard, and very hard motor loads. The motor load is dependant on the devices intended to operate on the phase converter. For additional load types or for additional sizes, please see the below links or call us today.
