Network Video Recorder - (4) 4TB - 64 Channels - 100/240V AC

LARSON ELECTRONICSSKU: PL3-NVR-POE-V3.5-64CH-16TB
filler

Precio:
Precio de venta$12,030.00

Descripción

Specifications / Additional Information
NVR-POE-V3.5-64CH-16TB Network Video Recorder - 16 TB - 64 Channels - 100/240VAC Ratings/Approvals
Device Type: Network Video Recorder CE Approved
Storage Capacity: (4) 4 TB SATA Hard Drive FCC Approved
Channels: 64 RoHS Approved
Supported Compression Format: H.265, H.264, H.264 OVC, MPEG4 UL Listed
Recording Perfomance: 320 Mbps max, 200 Mbps max when RAID is enabled Embedded Linux Operating System
Remote Viewing Output Capacity: 256 Mbps max, 200 Mbps max when RAID is enabled
Recording Type: Continuous, Schedule, Alarm, Motion Detection, POS, Event
Supported IP Camera Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Supported Playback Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 16-ch @ 1080p, 4-ch @ 4K
Video Output: VGA, HDMI
HDMI Video Output Formats: HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzHDMI2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Video Output Formats: VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz VGA2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz"
Two Way Audio Input: 1-ch, RCA (Linear, 1kO)
Audio Output: 2-ch, RCA (Linear, 1kO)
Export Formats: .MP4
Ethernet: 2x Gigabit RJ-45 self-adaptive Ethernet interface
USB: 2x USB 2.0 (front panel), 1x USB 3.0 (rear panel)
Hard Drive Capacity: 16x HDDs max., up to 6TB capacity per HDD
Alarm Input/Alarm Output: 16/ 8
Operating System: Embedded Linux
Security: Password Protection
Protocols: IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, ONVIF, HTTP multipart
Power Requirements: 100 ~ 240 Vac, 6.3 A, 50 ~ 60 Hz
Max. Power: 300W
Color: Black
Material: Aluminum
Hard Drive Interface: SATA Special Orders - Requirements
Operating Temp: 14°F ~ 131°F
Dimensions: 19.5"-W x 17.5"-D x 5.7"-H Toll Free:1-800-369-6671
Weight: 27.6 lb (without HDDs) Intl:1-903-270-1187
Color: Black E-mail:
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

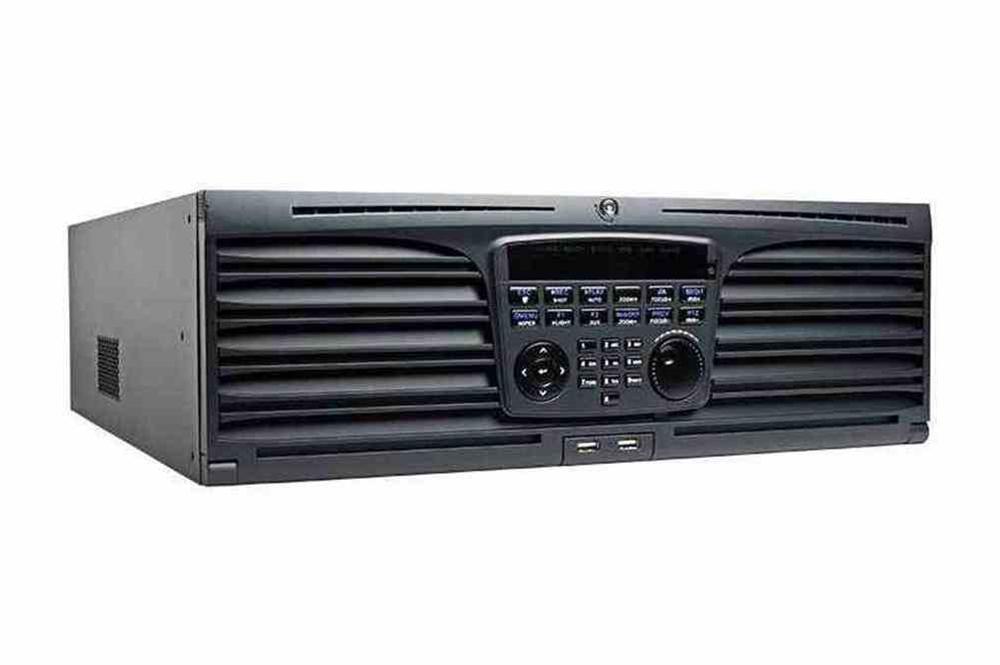

The NVR-POE-V3.5-64CH-16TB from Larson Electronics is a Network Video Recorder that can be used to support remote surveilance operations and video recording activities. The unit comes with 64 channels and 4 hard drives, each with 4 TB of storage for a total of 16 TB. This unit supports up to 12.0mp recording resolution and H.264 and H.265 video streaming, with HDMI and VGA local video outputs. This 64 channel NVR features 16 alarm inputs, 8 alarm outputs, and multiple recording modes and features. This device supports up to 64 IP camera with up to 320 Mbps recording capabilities, ideal for remote surveillance, military and law enforcement operations, and industrial surveying. The NVR-POE-V3.5-64CH-16TB is a 64-channel NVR that can be used with up to 64 compatible IP network cameras. With multiple recording modes (Schedule, Continuous, Motion Detection, POS, Alarm and Event) and 16 TB of storage, users could capture hours of footage with ease. Recording features include: event search, evetnt log and email notification. The remote configurable network recorder features a recording performance of 320 Mbps and 256 Mbps remote viewing output capacity. To maximize storage, the unit supports H.265, H.264, and H.264 OVC and MPEG4 video compression.
DVR Access App Access Web Access
The network recorder is compatible with two-way audio streaming and includes 2 ethernet ports (RJ-45 interface), 2 USB 2.0 portals on the front panel, and one USB 3.0 portal on the rear panel. During recording, the unit handles the following data: activity log, email notification, event log, event notification, video analytics and event search. This device offloads videos in MP4 format. Cameras hooked up to the NVR-POE-V3.5-64CH-16TB may use power directly via PoE (802.3af / 802.3at) during operation. The NVR runs on 100 - 240VAC of power and is suitable for use in temperatures between 14°F - 131°F. This video recorder accepts a USB mouse input. The unit is fully capable of being controlled via mouse input only. USB mouse ships standard with the video recorder. USB keyboard sold separately. Inputs: (1) RCA, 4 Sensor Inputs Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (front), (1) USB 3.0 (rear) Applications: Remote surveilance, outdoor/indoor recording activities, video capturing, law enforcement operations, military recording, industrial surveying, security during outdoor events, commercial security systems, residential camera support and construction sites.
