Power Distribution Panel - 480V 3PH - 1200A MCB - (12) 200A 3P Adjustable Trip Breakers - NEMA 3R
Power Distribution Panel - 480V 3PH - 1200A MCB - (12) 200A 3P Adjustable Trip Breakers - NEMA 3R
| PDU-PNL-3P-MCB-1200A-480V-12X200A.3P Power Distribution Panel | Ratings |
| Line In: Customer Provided | NRTL Certified to UL 1640 Power-Distribution Equipment |
| Max Primary OCP: 1200A @ 480V | NEMA 3R Indoor or Outdoor Use |
| Panel: 1200A 480V 3PH MCB N3R | Made in the USA |
| Circuits: - |  |
| Breakers: (12) 200A 3P [480V] - Adjustable Trip |  |
| Breaker Type: Bolt-on | |
| Feed Type: Top or Bottom | |
| Interrupting Rating: 14 | |
| Operating Temperature: 40°C | |
| Materials: Steel, Copper |  |
| Bus Material: Copper |  |
| Ground Bar Material: Aluminum (Bolted) | |
| Form Factor: Rectangular, Slim-profile Enclosure w/ Lockable Opening | |
| Input Wire Size: 4-350 | |
| Dimensions: 85"-L x 7"-H x 18"-W | |
| Weight: 100 lbs | |
| Shipping Weight: 200 lbs | |

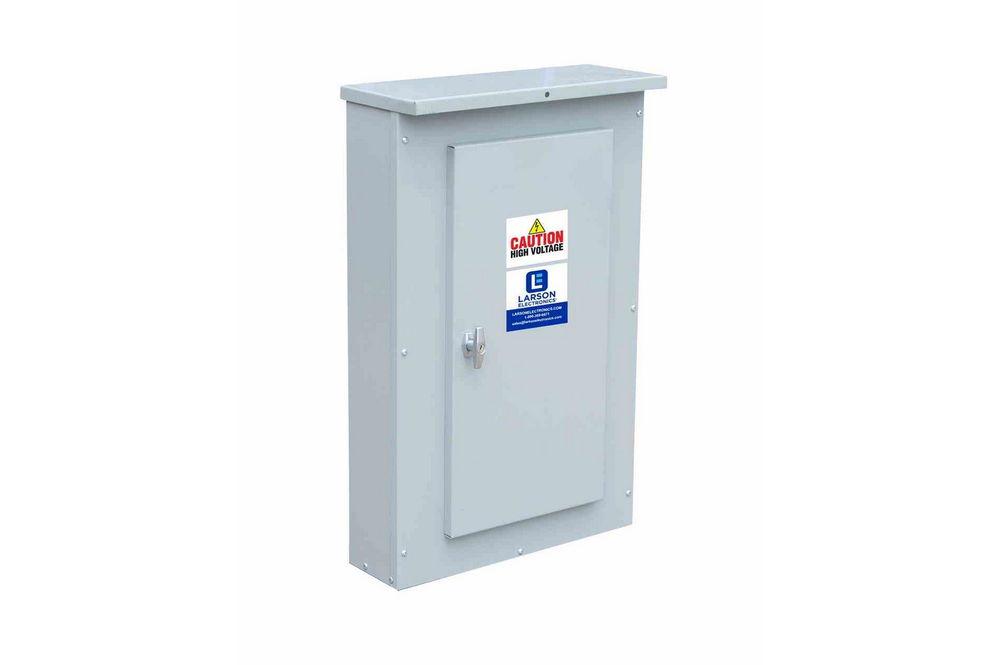

| Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| The Larson Electronics PDU-PNL-3P-MCB-1200A-480V-12X200A.3P Power Distribution Panel is designed for reliable, safe and convenient power distribution at industrial work sites. This 1,200-amp unit provides 480V three phase via a main circuit breaker panel. The power distribution panel provides operators the ability to safely tap into and distribute 480V AC power from a variety of sources including generators and direct grid power. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* The PDU-PNL-3P-MCB-1200A-480V-12X200A.3P power distribution panel provides a safe and reliable way for operators in industrial settings to tap into and utilize power sources independently of the work area. The PNL series of power distribution panels require operators to provide their own line-in cables for use. Knockouts are provided for convenient installation of operator provided cables. The panel is designed to operate with 480V three phase voltage. Power distribution for this panel runs 480V through a 1,200-amp main circuit breaker panel. The main circuit breaker panel contains twelve 200-amp 3-pole 480V adjustable-trip breakers. Enclosure Design: This power distribution panel is housed in a space-saving NEMA 3R enclosure for protection against dust, dirt and moisture in indoor and outdoor locations. Constructed of steel, the unit`s slim, rectangular profile is compatible with plug-in mounting configurations. A lockable opening deters the possibility of tampering. We also offer similar power distribution panels on dolly carts with wheels, powder coated cube frames with lifting eyelets/skid pockets or stand-alone with handles for faster turnarounds and completion of temporary tasks. Certification: Larson Electronics is an NRTL Certified to UL 1640 panel shop and certified to build power distribution systems. All units are built in accordance to NFPA 70 (National Electric Code) and NRTL certified to UL 1640. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request. Grounding: Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground. ~Please check all motor loads for dual rated motors that will work 208 or 240.~ Applications: This power distribution system is NEMA 3R rated and ideal for indoor/outdoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, hazardous location operations, shows, exhibits, and shipyard operations. |
|  |
