Remote Controlled Pan Tilt Base with Mounting Plate - Rotates and Tilts - Top Mounted Picatinny Rail

Remote Controlled Pan Tilt Base with Mounting Plate - Rotates and Tilts - Top Mounted Picatinny Rail

$3,630.00 CAD
$3,630.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
PTB-1-M3-PK13 Pan/Tilt Base w/ Picatinny Rail Features
Dimensions: 15.86"-L x 8.03"-W x 9.92"-H Pelco-D Protocol
Weight: 24 lb Top Mounted 13 Slot Picatinny Rail
Voltage: 12 V or 24 V DC
Rotation: 0° to 355°
Tilt: -60° to +30°
Pan Speed: 12°/Sec
Tilt Speed: 6°/Sec
Pan Electrical Power: 6 Watts
Tilt Electrical Power: 15 Watts
Maximum Load: 65 lb
Equipment Mount: 13 Slot Picatinny Rail
Maximum Torque: 468.68 ibf-in
Ambient Operating Temp Range: -25° C to +50°C
Ingress Protection: IP54
Housing Material: Die-Cast Aluminum Special Orders - Requirements
Finish: Powder Coated - Black
Mounting: 4-Corner Thru-Hole
Remote: Hard Wired & Wireless
Wiring: 25' Cable w/ Inline Remote - (2) 1' Pigtails
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

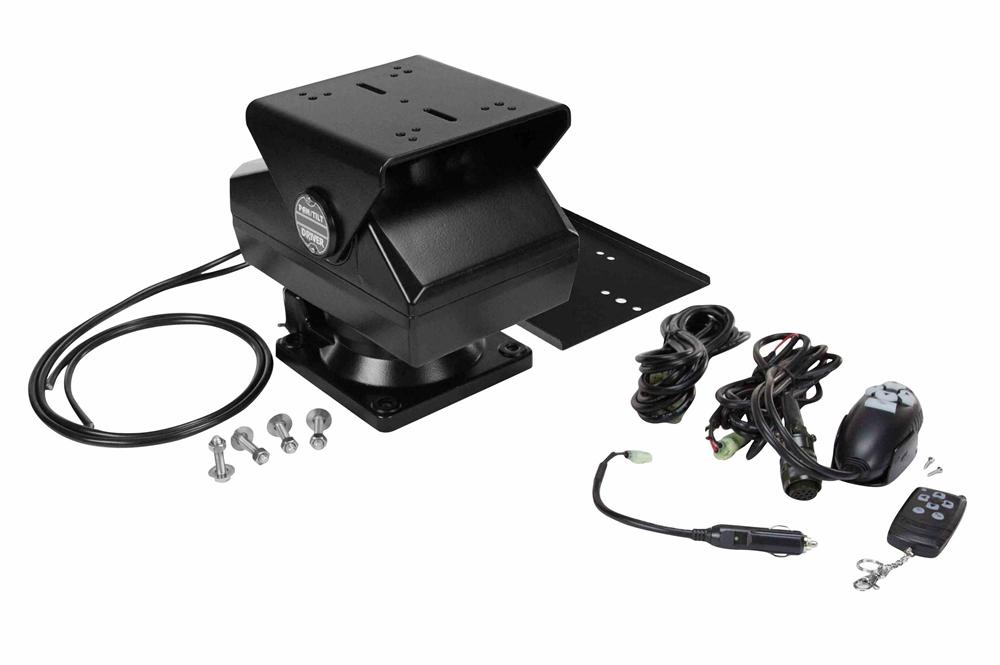

The PTB-1-M3-PK13 from Larson Electronics is an Industrial Grade Pan Tilt Base w/ Picatinny Rail that is designed to provide wireless and hard wired remote control of lights and equipment. This remote control unit allows operators to rotate through from 0° to 355°, tilt from -60° to +30°, and mount equipment weighing up to 65 lb. The PTB-1-M3-PK13 pan/tilt base provides operators with a remote way to control lights, cameras, and other equipment mounted to the base. A top mounted, 13 slot Picatinny rail allows operators to mount a variety of different equipment securely and easily. Wired and wireless remote controls are provided with this unit, providing flexibility in the field.
Click Photo to Enlarge
This unit is constructed of die-cast aluminum and powder coated for added corrosion resistance. The internal gears of the PTB-1-M3-PK13 provide no slip and no "slop" during operation, and the pan/tilt base holds its position after movement has stopped. Mounting is provided via four-corner thru-holes. This pan/tilt base will keep its position during storms and strong winds, and holds up to vibrations in vehicle and offshore applications. The PTB-1-M3-PK13 is configured for remote software control via Pelco-D protocol. This allows operators to control the pan and tilt this unit from a computer control station. Hard wired and wireless remote controls are both included with the PTB-1-M3-PK13. The wireless remote control is operated from the wireless key fob, is battery operated, and controls up, down, left, right, and on/off. The hard wired remote provides 25' of cable with an Am phenol 10-SL waterproof disconnect at the base of the fixture. The handheld wired remote is located 15' from the light, with a 10' from the light leading to the power source. Two individual +/- leads on the pan/tilt base allow operators to power user provided equipment from the same power source without running additional cabling. The PTB-1-M3-PK13 is offered in 12 V or 24 V DC.
