Larson T12HO Electronic Fluorescent Ballast - 120-277V AC, 50/60Hz - Rapid Start - High Power Factor

Larson ElectronicsSKU: PL3-RBALL-T12HO-EL-2L-96
filler

Precio:
Precio de venta$188.00

Descripción

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

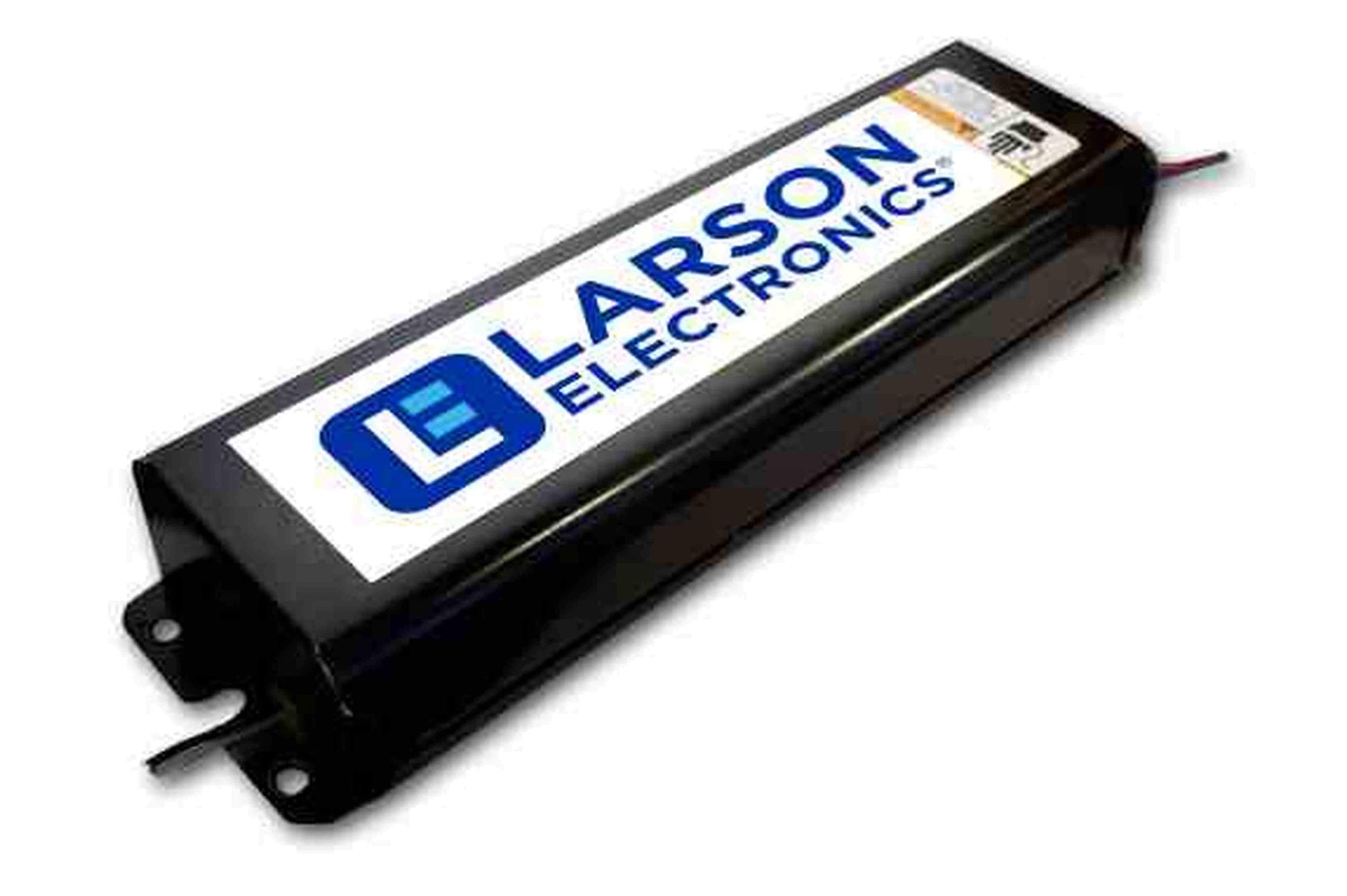

The RBALL-T12HO-EL-2L-96 from Larson Electronics is an Electronic Rapid Start Fluorescent Ballast for industrial lighting systems. Designed for two-lamp fixtures, this unit offers high power factor and universal compatibility with 120-277V AC, 50/60Hz. The surface-mount ballast features a Sound A rating and a metal casing.
The RBALL-T12HO-EL-2L-96 electronic ballast is ideal for two-lamp, F96T12/HO 110W, F72T12/HO 85W, F60T12/HO 75W or F48T12/HO 60W fluorescent light fixtures. This 50/60Hz rapid-start ballast operates on universal 120-277V AC, +/- 10%. Featuring high power factor, this unit is protected by a metal casing. For best results, case temperature should not exceed 75C. The fluorescent ballast is compatible with surface mounting applications. Wiring leads are 18AWG solid copper: 22" white, 22" black, 46" red, 46" blue and 72" yellow.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Type: T12HO Electronic Rapid Start Ballast
Dimensions: 11.77" x 2.15" x 1.61"
Weight: -
Line Voltage: Universal 120V-277V AC, +/- 10%
Input Frequency: 50/60Hz
Number of Lamps: (2) F96T12/HO 110W, (2) F72T12/HO 85W, (2) F60T12/HO 75W, or (2) F48T12/HO 60W
Input Watts: Depends on Lamps
Input Current: 0.38A-1.65A
Power Factor: ≥0.96 to ≥0.99
Crest Factor: <1.7
Ballast Factor: 0.85 to 0.90
Ballast Efficacy Factor: 0.43 to 0.87
Max THD: 10%
Sound Rating: A
Maximum Case Temperature: 75ºC
Minimum Starting Temperature: -30ºC for HO Lamps, 18ºC for HO/ES Lamps
Materials: Metal
Mounting: Surface
Wiring: 18 AWG 105ºC/600V, Solid Copper Leads
Wire Lengths: 22" White, 22" Black, 46" Red, 46" Blue and 72" Yellow
