*RENT* Mobile Communication Tower w/ Trailer - 13.5' to 50' - Antenna Mount Pole - Cell on Wheels

LARSON ELECTRONICSSKU: PL3-RNT-LM-50-5S-ATM-TLR
filler

Precio:
Precio de venta$55,614.00

Descripción

Specifications / Additional Information
' Product Overview '

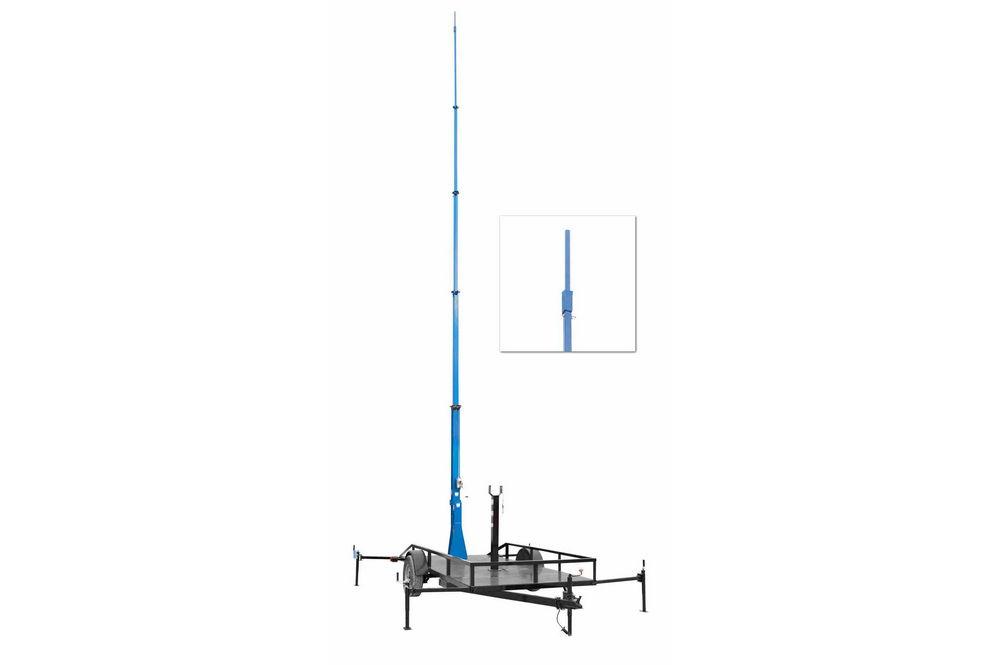

Made in the USA This unit is for rentals The Larson Electronics RNT-LM-50-5S-ATM-TLR portable communication tower is a cell on wheels that provides a quick way for operators to deploy equipment for mobile communication operations. This unit features a heavy-duty mast that can be elevated between 13.5` to 50` and an antenna mount pole (located at the top of the tower). The entire assembly is mounted onto an 18` single-axle trailer, allowing operators to transport this unit (folded over) from location to location. Storage space on the trailer is available for customer-provided equipment, enclosures and cabinets. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The RNT-LM-50-5S-ATM-TLR is designed to allow operators to quickly and safely deploy mobile communication systems in temporary locations and remote sites. The tower can be extended to 50 feet for maximum area coverage and collapsed to 13.5 feet for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 11` in length and 6" x 6" by 3/16" thick, lower section 11` in length and 5" x 5" by 3/16" thick, middle section 11` in length and 4" x 4" by 1/8" thick, an upper section 11` in length and 3" x 3" by 1/8" thick, and a top section 11` in length and 2" x 2" by 1/8" thick. Each section has a 15-18" overlap. The mast is elevated using an included 2,500 lbs hand winch with 3/16 inch cable and extended to its full height using a second 2,500 lbs winch. This cell on wheels comes with an antenna mount pole (OD 3") at the top of the tower. Operators may use the trailer to store communication devices and other supporting equipment, such as cables, electronics, amplifiers, monitoring systems, cameras, handheld tools, lights and more. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This portable communication tower is mounted to an 18` single-axle trailer via six 1/2" anchor bolts. The two-wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. The trailer can support and haul an additional 3,500 lbs of equipment. A standard 2" ball coupling, two standard safety chains, and 4-pin flat trailer plug allow for easy hookup and towing. The trailer also features extra storage space for customer-provided equipment, cabinets or enclosures. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised. This portable communication tower assembly weighs approximately 1,200 lbs and can easily support/lift 150 lbs fixtures and other types of equipment. The entire tower assembly is shipped via common freight carrier or flatbed. Larson Electronics can customize these units according to customer requirements with longer sections and larger mounting plates. For example, the LM-40-4S is another model that reaches to a length of 40`, with a base section of 11.25` in length, lower section of 11.25` in length, an upper section of 11.25` in length, and a top section of 11.75` in length. Larson Electronics can custom build these towers to meet your overall and collapsed height requirements. We also offer a choice of either manual or electric winches, finishing, and equipped light heads. Winch options include 1,000 lbs hand winches (included standard) or optional electric winches for standard light towers, and heavy duty winches and hoists for high payload units. Powder coating color can be customized (the standard mast is gloss blue). Tower location on the trailer bed can be tongue mounted, front of the trailer bed, or center of the trailer bed. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment. Suggested Applications: Mobile communication services, extending site capacity, site repair, disaster recovery, emergency communications, surveillance, military, outdoor operations, remote deployment, temporary deployment, outdoor events, emergency camps, security deployment and more.
Specifications / Additional Information
RNT-LM-50-5S-ATM-TLR Portable Communication Tower Quick Summary
Tower Specs 13.5` to 50` Tower
Tower Length: 13.5` to 50` Steel Construction
Antenna Pole Length: - Powder Coated Finish
Antenna Pole OD:3" (4) 1,000lb Retractable Outriggers
Capacity: 150 lbs 125 mph Wind Resistance
Materials: Steel Manual or Optional Electric Operation
Finish: Powder Coated - Gloss Blue Cell on Wheels
Operation: (2) 2,500lbs Hand Winches, Electric Optional Storage Space for Equipment on Trailer
Cable: 3/16" Aircraft Cable
Trailer Specs
Materials: Steel
Trailer Dimensions: 18` Trailer Bed
Hitch: 2" Ball Coupler
Wiring: 4-Pin Flat
Axle: 3,500 lb
Suspension: 5,400 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks - Retractable
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-1200 lbs
Shipping: Common Freight
Shipping Dimensions:~16.5`-L x 4`-W x 5`-H
Shipping Weight: +-1700 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
Scroll Down to Rent-
