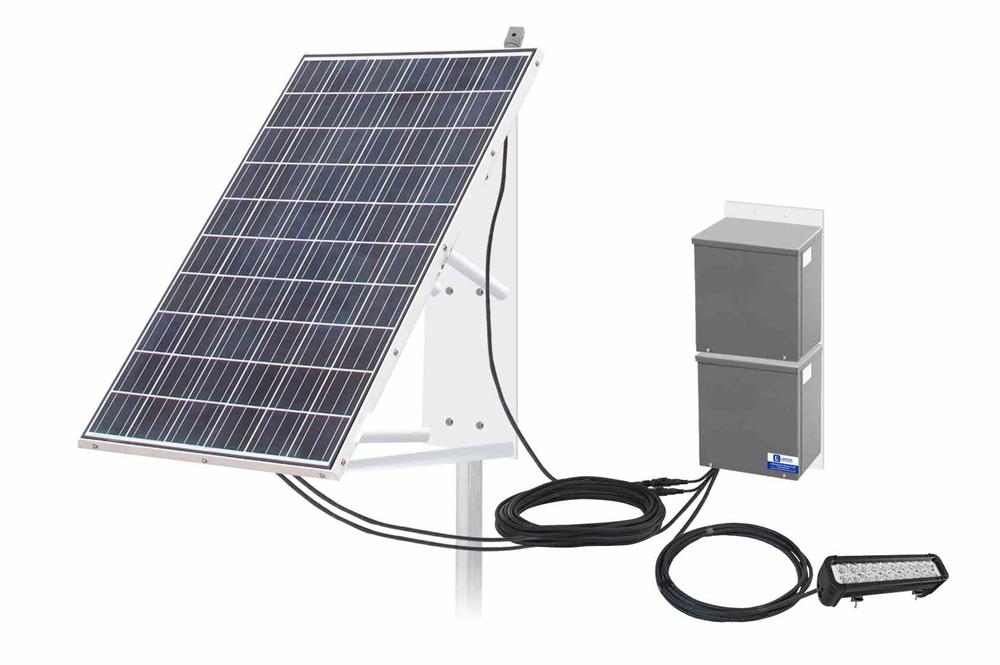

60W Solar Powered LED Light w/ 265W Panel - 12 Hour Run Time - Day/Night Photocell or Motion Sensor

LARSON ELECTRONICSSKU: PL3-SPLEDXL-1X20ET
filler

Precio:
Precio de venta$8,895.99

Descripción

Specifications / Additional Information
SPLEDXL-1X20ET Solar Powered LED Light Summary
LED Technology: 20 Edixeon® 3 Watt LED Emitters High Output LED Light Source
Operation: 24/7, On/Off, Day/Night, Motion, or Flying Leads 100% Solar - Requires no External Power
Panel Dimensions: 65.43"L x 38.98"W x 1.81"H IP68 Waterproof LED Light Assembly
Lamp Dimensions: 12"-L  3"-H   3.57"-D 50,000+ Hour LED Lamp Life
Panel Wattage: 265W Multiple Configurations Available
Light Wattage: 60W External Mount Light
Lumens: 3,600 lms Surface or Post Mount Panel
Luminous Efficacy: - 70% Lumen Retention @ 65,000 hours
Lamp Life: 50,000+ Hours LED Chip Op Temp -40C to +125C
Color Temperature: 6000K
Color Rendering Index: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: -
Lighting Configuration: 10° Spot or 35° Flood
Spot Beam: 800`L x 80`W
Lux-Spot: @ Lens: 188,400; @ 1 Meter 24,800
Flood Beam: 250`L x 250`W
Lux-Flood: @ Lens: 199,800; @ 1 Meter 4,450
Optics Efficiency: 90%
Amps: 5A @ 12V, 2.5A @ 24V
Materials: -
Panel Mounting: Surface or Pole
Lamp Mounting: Stud Bracket
Battery: (10) 18aH Sealed Lead Acid Batteries
Charging Time: 5 Hours
Runtime: 12 Hours
Wiring: 15` 16/2 SOOW Cable w/ Deutsch 2-pin Disconnect
' Product Overview '
The Larson Electronics SPLEDXL-1X20ET Solar Powered LED Light is an ideal lighting solution for remote areas and standalone applications where connection to external power is either impractical or unavailable. This rechargeable solar powered LED light is offered in a spotlight or floodlight beam pattern and several different operating configurations, making it ideal for remote applications. The SPLEDXL-1X20ET is offered in several different configurations and powered by ten, 18aH sealed lead acid batteries that are recharged by a 265-watt solar panel. Light output comes from a 60-watt LED lamp that produces 3,600 lumens with a 6000K color temperature rating. This solar panel is configured to operate non-stop 24/7, day/night with photocell, motion sensor for security purposes, on/off switch for manual operation, or flying leads for operators to connect to user provided external switches. The day/night and motion sensor is programmed to active the solar panel in the evening and to shut it off during the day, activating the LED light when ambient lighting falls below 1 lux. The motion sensor will activate the panel upon detecting movement within range of the panel. The light runs for 12 hours when the battery is fully charged and will operate for two full days without sunlight on a single charge. The sealed lead acid battery pack is contained within the solar panel, not the light. Charging time for the battery is 5 hours when exposed to direct sunlight. As with all solar powered equipment, charging time is affected by the amount of available ambient light. When ambient light levels drop below a certain level, such as on cloudy days, the unit will not recharge.
Flood Beam Spot Beam
Light Features: The included LEDLB-E series light bar produces a 750` long by 110` wide light beam with 3,600 lumens of bright light. In a flood configuration, this becomes an LED spreader light and covers 300` in length by 230` in width, making the unit ideal for use as work and area lights. Twenty Edison Edixeon® Emitters containing CREE EZBright® three watt LEDs producing 180 lumens each are arranged in rows and paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. These LED light bars are IP68 rated and waterproof to 3 feet, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. Durability: The LEDLB-E series of LED light bars from Larson Electronics offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. The LED lights with the ‘E’ part number designation are designed for extreme durability and are larger and nearly twice as heavy as their standard counterparts. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three feet and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are unbreakable polycarbonate. The Edixeon® LEDs offer inherent LED resistance to shocks and vibrations contributing to these units 15.6Grms rating of vibration tolerance. We recommend these LED lights for high stress - high vibratory conditions, high humidity climates, very cold areas and rough saltwater conditions. They are also well suited to environments where equipment is used in one temperature extreme and stored in another temperature extreme. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or "duty cycle" accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED`s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours. Wiring: The included 15` 16/2 SOOW cord with Deutsch 2-pin disconnect that runs between the solar panel and the light offers operators convenience and flexibility during the mounting process. Mounting: Larson Electronics LEDLB series light bars are equipped standard with aluminum mounting blocks which slide within the aluminum housing to allow users to adjust their positioning to match existing or user drilled mounting holes. Each aluminum mounting block has an integrated rubber bushing to absorb vibrations and shocks. To secure the lights in place users simply slide the mounting bolts through the aluminum mounting block and rubber isolator, through the mounting surface, then secure the bolt with a locking nut on the opposite side of the mounting surface. This mounting system enables mounting to flat or round surfaces and allows for minimal 7 degrees of flexibility of angle placement of the light. Larson Electronics has further upgraded the options available with this light. A six foot extension cord connects the solar panel to the LED light, allowing the light to be mounted separately from the panel. This means the solar panel can be mounted in direct sunlight while the light is mounted in a workspace. The cord between the light and panel ends in Deutsch connectors, allowing an optional longer extension cord to be attached, increasing the distance the light can be installed from the panel. Optional longer extension cords are available at additional cost. Alternatively, the light can be mounted directly to the panel. Larson Electronics can also configure this light for special requirements including different lights and larger batteries. Applications: Suggested uses for this light include both commercial and industrial applications as well as consumer based installations. This light is ideal for boat docks, remote locations that rely on batteries for power, exterior outbuilding lighting, hunting cabins, parking areas, sign or entryway illumination, driveway lighting and anywhere a standalone lighting solution is needed.
