30' Solar Light Tower - 7.5' Trailer - (2) LED Lamps w/ Sensor, (1) PTZ Camera - Backup Gas Generator - Access Point
30' Solar Light Tower - 7.5' Trailer - (2) LED Lamps w/ Sensor, (1) PTZ Camera - Backup Gas Generator - Access Point
Precio habitual
$74,154.00 CAD
Precio habitual
Precio de oferta
$74,154.00 CAD
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
| SPLT-0.6K-LM30-2XWP60E-1XPTZ-WPP-ISGG-TLR7-M2 Trailer Mounted Light Tower | Quick Summary |
| Light Mast Specs | 13.5` to 30` Light Mast |
| Tower Length: 13.5` to 30` | Steel Construction |
| Mast Head Length: 44" | Powder Coated Finish |
| Materials: Steel | Removable Mast Head |
| Finish: Powder Coated - Gloss Blue | (4) 1,000lb Outriggers |
| Operation: (1) 1,000lbs Hand Winch | 125 mph Wind Resistance |
| Cable: 3/16" Galvanized Aircraft Cable | Manual or Optional Electric Operation |
|  | A-Frame for mounted (2) 300 Watt Solar Panels |
| Solar Specs | Fully Solar, No Fuel Needed |
| Panes: (2) 300W panels | 50,000+ Hour LED Life |
| Method of Deployment: Fixed Mount, 45° angle | IP68 Waterproof Lamps |
| System Voltage: 12 Volts Stepped Up to 120V | Automatic Solar/Generator Power Switching |
| Battery Bank: (2) 12V 250aH 8D batteries | Dusk/Dawn Light Sensor |
| Battery Capacity: 500aH Total / 250aH Usable | PTZ Security Camera |
| Battery Charger: 120V AC | CDMA/GSM |
| Mesh Wi-Fi Access Point | |
| LED Lamp Specs | |
| Lamp Type: CREE LED | |
| Lamp Qty: (2) | |
| Single-lamp Dimensions: W-9"  D-3.25"  H-6.5" | |
| Total Watts: 120W | |
| Single-lamp Watts: 60W | |
| Total Lumens: 10,800 lms | |
| Single-lamp Lumens: 5,400 lms | |
| Luminous Efficacy: 90 lm/w | |
| LED Life Expectancy: 50,000+ hours | |
| Color Temp: 5600K, 4000K, or 3000K | |
| Color Rendering Index: 80 | |
| Beam Angle: 60° Vertical, 75° Horizontal | |
| Lighting Configuration: Flood Beam | |
| Sensor Type: Dusk/Dawn | |
| Ambient Temp Range: -50°C to +70° | |
| Lamp Housing Material: Cast Aluminum | |
| Lamp Lens Material: Polycarbonate | |
|  |  |
| Outdoor Camera Specs | |
| Unit Type: Security Camera | |
| Dimensions: 14.38" H x 7.12" D | |
| Total Watts: 25.5 (Max) | |
| Voltage: 24V AC (PoE - 802.3at) | |
| Image Sensor: CMOS | |
| Connectors: 1.0Vp-p, 75 Ohm, BNC | |
| Effective Pixels: 2.1 MP, 1920 x 1080 Resolution | |
| Min. Illumination: 0.02 Lux @ F1.6 AGC On, 0 Lux w/ IR | |
| Electronic Shutter: 1 ~ 1/10,000s | |
| Lens: 4.7-94mm Varifocal Lens | |
| Angle of View: 58.3° (Wide) ~ 3.2° (Tele) | |
| Optical Zoom: 20x | |
| Day/Night: ICR | |
| IR Distance: 492` (850 nm) | |
| Video Framerate: 1080p @ 30fps | |
| Video Offload: MP4 | |
| Video Output: (1) BNC | |
| Language: English | |
|  | |
| Connectivity Specs | |
| Network Connectivity: CDMA/GSM | |
| Local Network: Mesh Wi-Fi Access Point | |
| Access Point Types: Outdoor, Indoor, Dual Radio, 5GHz and 2.4GHz 802.11ax 4x4 MIMO | |
| Devices: I2-Port Network Switch (Inside NEMA Control Box), 8-Port Network Switch (Top of Mast) | |
|  | |
| Generator Specs | |
| Dimensions: 26" x 22.4" x 28.4" | |
| Weight: 224 lbs | |
| Engine: 420CC 15 HP OHV | |
| Rated Power: 7,000W output, 9,000W peak | |
| Fuel Capacity: 6.5 gallons | |
| Starting System: Recoil & Electric | |
| Receptacles: (3) 5-20R [115V], (1) L6-20R [12V DC] | |
| Starting System: Recoil & Electric | |
|  |  |
| Trailer Specs | |
| Materials: Steel | |
| Trailer Dimensions: 7.5`L` x 7`W trailer bed- 10.75` total length | |
| Hitch: 2" Ball Coupler | |
| Wiring: 7-Pin Flat | |
| Axle: 3,500lb | |
| Suspension: 3,500 Lb 4-Leaf Double Eye Springs | |
| Outriggers: (4) 1,000 Manual Crack Leveling Jacks | |
| Wheels: (2) 15" 5x4.5 Steel Rims | |
| Tires: ST205/75/D15 H188 | |
|  | |
| Shipping Specs | |
| Weight: +-1000 lbs | |
| Shipping: Common Freight | Toll Free: 1-800-369-6671 |
| Shipping Dimensions: 8`-L x 8`-W x 12`-H | Intl: 1-214-616-6180 |
| Shipping Weight: +-1000 lbs | Fax: 1-903-498-3364 |
| Options: Length- Mounting-Fixtures/ Call Us for Special Requirements | E-mail: |

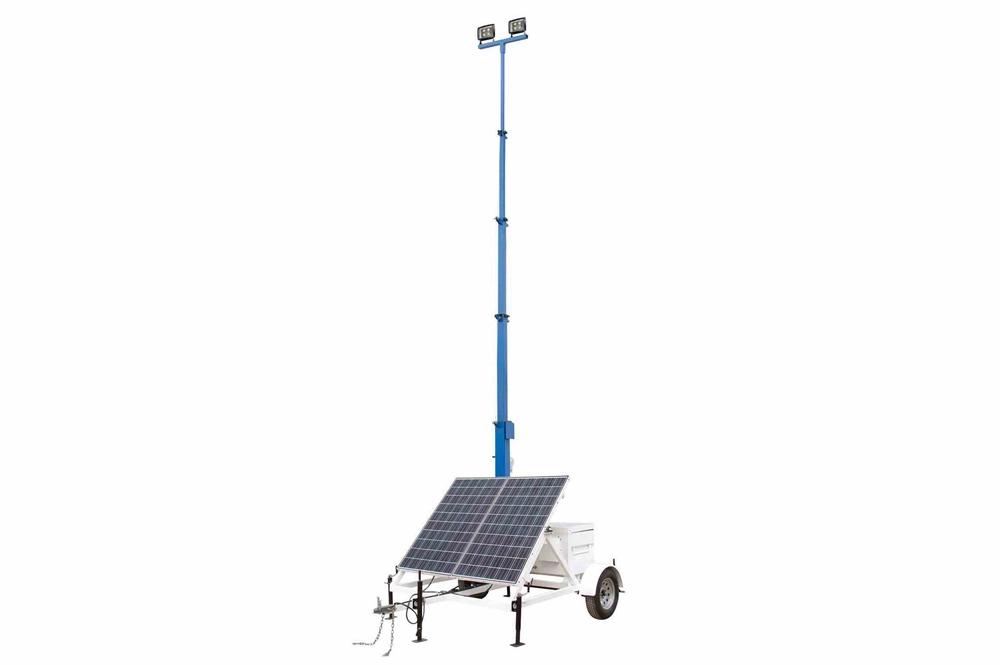

| The Larson Electronics SPLT-0.6K-LM30-2XWP60E-1XPTZ-WPP-ISGG-TLR7-M2 solar powered LED light tower provides a safe and effective way for operators to quickly deploy 120 watts of intense LED illumination and a PTZ camera to elevations up to thirty feet. This solar light plant features a telescoping light tower that folds over for easy transportation, a rotating boom that allows for 360° of rotation, a backup generator with receptacles to help charge the batteries when sunlight is unavailable and a removable mast head for storing the two LED light fixtures when not in use. This unit contains two, 300-watt solar panels and a 500-amp capacity battery bank. The entire assembly is mounted onto a 7` single axle trailer, allowing operators to transport this solar light tower from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Solar Powered Light Tower: This solar light tower includes two 300-watt solar panels, solar charging system, battery bank, battery charger, a backup generator with receptacles, two LED lights with dusk/dawn sensor, outdoor security camera, network connectivity, 12-port/8-port switch boxes and manual crank up mast mounted on trailer with outriggers. This 0.6KW solar generator system replenishes 350 amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system delivers 120 volts for lighting mounted atop the 30` telescoping light mast. Light Mast: This telescoping five stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy the two LED light heads and a PTZ camera in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 13.5` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap. The mast is extended to its full height using an included 1,000lb rated hand winch with 3/16" galvanized steel cable. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped LED light fixtures. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised. | |||
|
|||
|
LED Light Fixtures: This solar light plant is equipped with two Larson Electronics LEDWP-600E high output LED light fixtures. The LEDWP-600E consists of six LEDs paired with high purity specular optics to produce a wide light distribution overpowering that of a 500 watt quartz flood lights. This light is constructed of three angled boards that helps provide a wider spread. Instead of the light only shining forward, the center board is concentrated to go straight out while the boards on the side are 45° offset. This LED unit is designed to withstand demanding conditions and is waterproof, vapor proof, and built to resist the damaging effects of an outdoor environment.
The LED lights are housed within a waterproof aluminum housing that is powder coated for added durability and resistance to corrosion. The housing incorporates integral cooling fins for efficient heat dissipation and increased LED longevity. The LED lamp assembly is protected by a shatterproof polycarbonate lens which is secured to the housing with a waterproof seal. A 1/2" waterproof connector provides a secure and sealed power connection point and rounds out this unit's weather resistant construction.
LED Technology: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Lamp Control: Each lamp is grouped into banks of two, allowing operators to power one bank or both lamps at a single time to fit the required illumination requirements. An equipped dusk-to-dawn day/night sensor allows for anomalous operation of the light configuration set within the the control center.
Outdoor Camera: A single PTZ security camera provides operators with crisp 1080p full-HD high resolution images. The 4.7-94mm varifocal lens automatically adjusts focus, providing operators with precise 20x optical zoom levels. Integrated long-range IR LEDs, with a wavelength measurement of 850 nm, enable the day/night camera to see distances up to 492` under nighttime conditions. This unit offloads videos in MP4 format and features H.264 and MJPEG video compression. The IP security camera is designed to perform in outdoor locations and rainy conditions. This IP66-rated unit resists the negative effects of non-corrosive liquids. De-fogging features enable the unit to operate in rainy and foggy conditions. This device is capable of operating in temperatures between -22°F and 149°F.
Connectivity: The SPLT-0.6K-LM30-2XWP60E-1XPTZ-WPP-ISGG-TLR7-M2 is equipped with several connectivity features. Operators may connect to a customer-provided CDMA/GSM network and to a Wi-Fi access point. The access point supports outdoor, indoor, dual radio, 5GHz and 2.4GHz 802.11ax 4x4 MIMO. Designed for high density mobile deployment, this access point offers 3.55 Gbps of maximum throughput. A 12-port network switch inside the NEMA control box and an 8-port network switch at the top of the mast are also available for device connectivity (such as additional cameras and security devices).
|
