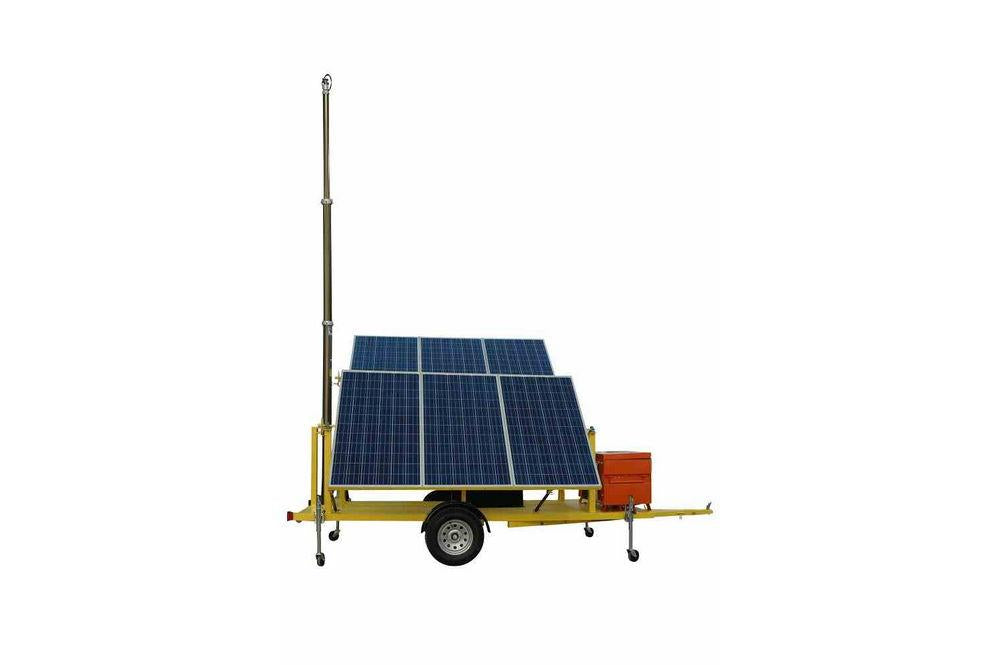

Towable Trailer for Solar Power Generator Setup with Pneumatic Light Tower Mast

Towable Trailer for Solar Power Generator Setup with Pneumatic Light Tower Mast

$65,492.00 CAD
$65,492.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
SPLT-30-TLR Mobile Solar Power Light Plant Features
Panes: Customer Provided Fully Solar, No Fuel Needed
Method of Deployment: Rotating axis, hand winch 18 Foot Pneumatic Tower
Average charge capacity: - Multiple Light Options
Panel protection: Fused combiner box
System Protection: Battery over/under and ground fault
System Voltage: 24 Volts
Battery Bank: Customer Provided - Up to (8)
Battery capacity: -
Trailer Coating: powder coated or 2-part epoxy steel
Trailer axle: 3500 pound rating
Mast: Pneumatic
Inverter: None Toll Free:  1-800-369-6671
Dimensions:  Intl:  1-214-616-6180
Weight:  Fax: 1-903-498-3364
Lights:
***Please note*** No solar panels or batteries are included with this unit. Any pictures display solar panels or batteries are for demonstration purposes only
' Product Overview '
Made in Texas *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO MASTS OR TRAILERS* Solar Light Tower: This solar light tower includes mounting assembly for up to six customer provided solar panels and battery bank, and is fully equipped with a solar charging system and pneumatic mast mounted on trailer with outriggers and removable tongue. This solar generator system can replenish up to 200 amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system if capable of delivering off grid energy for lighting, cameras, sensors or other electronics equipment mounted atop a 30-foot collapsible, pneumatic mast. Solar Panel Assembly: This unit can be equipped with a maximum of six customer provided 300-watt solar panels, generating a total maximum output of 1.8 KW. The panels are to be mounted to a rotating axis assembly mounted to the trailer. There are two assemblies, one on each side of the solar trailer. The panels can be rotated until they face inwards, which protects the panels during transport.  When deployed, the panels are rotated until they face upwards. On most models, we offer a locking pin system, preset with a winter and summer angle position for the panels. In order to optimize the sun capture, the panels are set to +/- 15 degrees of the latitude of the trailers location on the earth. Houston, Texas, for example, is at latitude of 30 degrees, so the winter setting is 45 degrees and the summer setting would be 15 degrees. While this doesn’t make a huge difference, every little bit helps. Once the panels are set the correct solstice position, one section of panel is elevated into position via a manual crank winch system. This sets one set of 3 panels above the other section of three panels so they make a consistent plane angle to the sun. The entire panel deployment can be done easily by one person, since the axis system and manual winch support the weight of the panels during positioning. The entire process takes just a few minutes. As part of the deployment, operators will set the 4 outriggers into position by pulling them out and pinning them into position. This will offset the effects of wind on the panels and the light mast.
Click Photos to Enlarge
Solar Charging System: When configured in a 24 volt system, each panel is terminated with a fused combiner box with a single lever action cut-off switch. With the switch set to the ‘on’ position, the combiner box passes power to the 80-amp capacity Outback Extreme charge controller. This solar light tower uses the Outback Extreme series since it standard temperature threshold is more than 160 degrees Fahrenheit, due to its integrated heat sink and fan assembly. Oddly enough, most charge controllers aren’t rated past 104 degrees Fahrenheit despite the fact the will always be close to direct sunlight. In the summer time in Texas, our fabrication shop is normally warmer than that, so this solar light tower uses a charge controller that would support the southern heat. We improve on that capability by shading the charge controller and adding additional air flow from the exhaust of a 1400 CFM component cooling system. The charge controller charges the customer provided maximum 400-amp capacity battery bank. Of course, with most battery technology, the battery bank cannot be drained below 50% without destroying the batteries. With that in mind, this effectively reduces the total capacity of this system to 200 amps at 24 volts. The panels produce approximately 12.5 amps per hour to charge this system.  On a bright sunny day, the six panels would generate and deliver more than 400 amps back to the batteries in 5.5 hours. This conservative number of 5.5 hours is pretty standard conservative number for the solar industry. Many parts of the world have more and some have less. While this solar trailer can be optimized for the angle of the sun, the panel assemblies do not follow the path of the sun, so we use this conservative number to ensure successful operation. In areas with longer days, additional battery banks can be purchased to increase the capacity of the system. The solar trailer has capacity for 2 additional battery banks or 1 additional battery bank and supplemental generator for areas with shorter days or sporadic sunlight. Battery Bank System: The customer provided battery bank consists allows for up to eight 6-volt or 12-volt batteries to be mounted to a removable tray. The batteries are spaced apart, strapped to the battery tray and covered with a protective shield. The shield provides security and also shaded protection from the sun. The construction of the battery tray system enables the batteries to ventilate while shading and securing them.  Much like a forklift battery bank, the entire battery tray system can be replaced in one operation. The trailer includes room for an additional battery bank system or a supplemental generator, both of which can be purchased separately and installed in the field. Component Control Center: In order to ensure that the 50% threshold on the batteries is controlled, this solar trailer includes a system of min/max voltage sensors and relays that monitor the voltage produced by the batteries and will automatically shut off power distribution when the battery capacity falls below 50%. This protects the batteries from failure. We also include ground fault protection and an Outback Mate 3 monitoring system to track and log all activities related to the charger controller and battery health. In the event there is an issue with the solar trailer, the SD card can be removed from the Mate 3 and sent to Larson Electronics for analysis. All the electrical components, including the combiner panel, charge controller, over/under battery monitoring and ground fault isolation are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The component control center also includes a terminal block so that customers can mount additional electronic gear without interfering with the charging systems. The job box that contains the component control system includes locks for security purposes.
  Click Photos to Enlarge
Wire Management: The trailer itself houses a built in wire raceway that brings power from the component control center and batteries to the light mast. At the base of the light mast there is an access panel for making connections from the power source to the cabling within the pneumatic mast. Pneumatic Light Mast: The aluminum pneumatic mast reaches 30 foot in height via the use of a low voltage air compressor located in the job box. The compressor is equipped with a pressure switch that maintains the pressure within the mast. Once the mast is deployed from the component control center, its operation is automated. The air compressor will turn on briefly when the pressure in the mast falls below the fully inflated threshold. In normal operation, the air compressor may turn on once every few days for about 5 minutes to top off the mast. When it is time to take the mast down for transport, the operator simply release the pressure switch and the mast will slowly release pressure and lower to its full collapsed height of 8.25 feet. At the top of the mast, we include a mounting bracket that is 4 foot in length and can support 150 pounds of electronics, including lights, camera or sensors.  These mounting brackets can be built to customer specifications to include the holes necessary to mount their gear. Trailer: The trailer itself is built on a 3500-pound rated axle and is approximately 16 feet long and 6 feet wide. The trailer is equipped with a removable tongue for storage, transport and security purposes. For an additional charge, we offer removable wheels in addition to the removable tongue for extra security. The four built in outriggers can be slid out from the frame and pinned into place. A standard crank style support leg can be used to secure each outrigger to the ground. The outrigger feet are over-sized and equipped with through holes for additional ground anchoring mechanisms. Lighting: While lighting is sold separately for this solar light tower, we typically suggest the LED10SA-160 series for approximately 60,000 lumens of total light output. However, each customer’s needs vary, so contact Larson Electronics for your specific requirements. Customization: Larson Electronics is a manufacturer of light tower systems and can customize systems to meet custom requirements. Contact us at 1-800-369-6671 or to learn more.
