Portable Solar Infrared Light Tower w/ IP Camera - 30' Mast - 7.5' Trailer - 850NM IR - 1TB NVR

LARSON ELECTRONICSSKU: PL3-SPLT-.53K-LM30-1X6MP-2X8EIR-PW-TLR7
filler

Precio:
Precio de venta$48,576.00

Descripción

Specifications / Additional Information
SPLT-.53K-LM30-1X6MP-2X8EIR-PW-TLR7 Trailer Mounted Solar Security Mast Quick Summary
Light Mast Specs 13.5` to 30` Infrared Light Mast
Tower Length: 13.5` to 30` Steel Construction
Mast Head Length: 44" Powder Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue (4) 1,000lb Outriggers
Operation: (1) 1,000lbs Hand Winch 125 mph Wind Resistance
Mast Cable: 3/16" Galvanized Aircraft Cable Manual or Optional Electric Operation
Cable Sheath: Sealtight Coiled Tubing A-Frame for mounted (2) 265 Watt Solar Panels
Fully Solar, No Fuel Needed
Solar Specs IR LEDs Driven @ 80%
Panels: (2) 265 Watt panels 70% Lumen Retention @ 65,000 hours
Method of Deployment: Fixed Mount IP68 Rated Waterproof to 3 meters
System Voltage: 12 Volts RoHS Compliant
Battery Bank: (2) 12V 8D 250aH batteries CE Certified
Battery Capacity: 500aH Total / 250aH Usable 1 TB NVR

Infrared Lamp Specs
LEDs: (2) 8 Edixeon® 3 Watt LED Emitters
Dimensions: 6.25"-L 3"-H x 3.56"-D
Voltage: 9-46V DC
Amps: 2 @ 12V, 1 @ 24V
Watts: 48W (24W per Lamp)
Lumens: 2,880 (1,440 lm per Lamp)
IR Wavelength: 850 nm
Lighting Configuration: Spot
LED Life Expectancy: 50,000+ Hours
Operating Temp Range: -40°C ~ +80°C
Materials: Aluminum Housing, Polycarbonate Lens

Camera Specs
Camera Type: Infrared IP Bullet Camera
Voltage: 12V DC
Watts: 12W (w/ Heater Off), 18W (w/ Heater On)
Imager Type: Progressive Scan CMOS
Resolution: 3072 x 2048
Megapixel: 6
Day/Night Function: True D/N w/Mechanical Cut Filter
Digital Noise Reduction (DNR): 3D DNR
Dynamic Range (dB): 120
IR Array Range: 165`
IR Wavelength: 850 nm
Lux (Color): 0.014
Wide Dynamic: Yes
Relative Aperture (F-stop): 1.4
FOV: 94.5° (Wide) - 30.5° (Tele)
Focus: Auto
Lens Type: Motorized, Smart Auto Focus
Focal Length (mm): 2.8 - 12
Audio Compression: G.711/G.722.1/G.726/MP2L2 (2-way Audio Streaming)
Ethernet Interface: RJ-45
Ethernet Ports: 1
Ethernet Speed: 10/100
Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP and more
Bit Rate: 32 kbps - 16 Mbps
Compression Type: H.264, H.264 OVC and MJPEG
Configurations: Email Notification, Event Log, Event Notification, Selectable Frame Rate, Privacy Video Block and Video Analytics
Frame Rate (fps): Up to 24fps
Video Offload: MP4
PoE: 802.3af / 802.3at
Materials: Aluminum
Connectors: 1.0Vp-p
Sensor/Digital Outputs: 1/1
Input/Output: (1) 3.5mm Audio In/(1) 3.5mm Audio Out

Network Video Recorder Specs
Storage Capacity: 1 TB SATA Hard Drive
Channels: 8
Camera Resolution Support: Up to 8 MP
Installation Type: Plug and Play
Incoming/Outgoing Bit Rate: : 40 Mbps/80 Mbps
Frame Rate (fps): 60 fps per Channel
Recording Modes: Continuous, Schedule, Event, Motion Detection and VCA
Export Format: MP4
Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear)
PoE: = 120W, Supported Standards- 802.3af and 802.3at
Alarm Input: 4x (Rear Panel), Camera Dependent
Alarm Output: 1x (Rear Panel), Camera Dependent
Protocols: IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, ONVIF, HTTP Multipart
Materials: Aluminum

Trailer Specs
Materials: Steel
Trailer Dimensions: 7.5`L x 8.91`W Trailer Bed - 11.65` Total Length w/ Tongue
Trailer Footprint (w/ Outriggers Extended): 11.65`L x 14.91`W
Wiring: 7-Pin Flat
Axle: 3,500lb
Suspension: 3,500 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Hitch: 2" Ball Coupler
Weight: +-600 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8`L x 8`W x 12`H Intl: 1-214-616-6180
Shipping Weight: +-600 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '

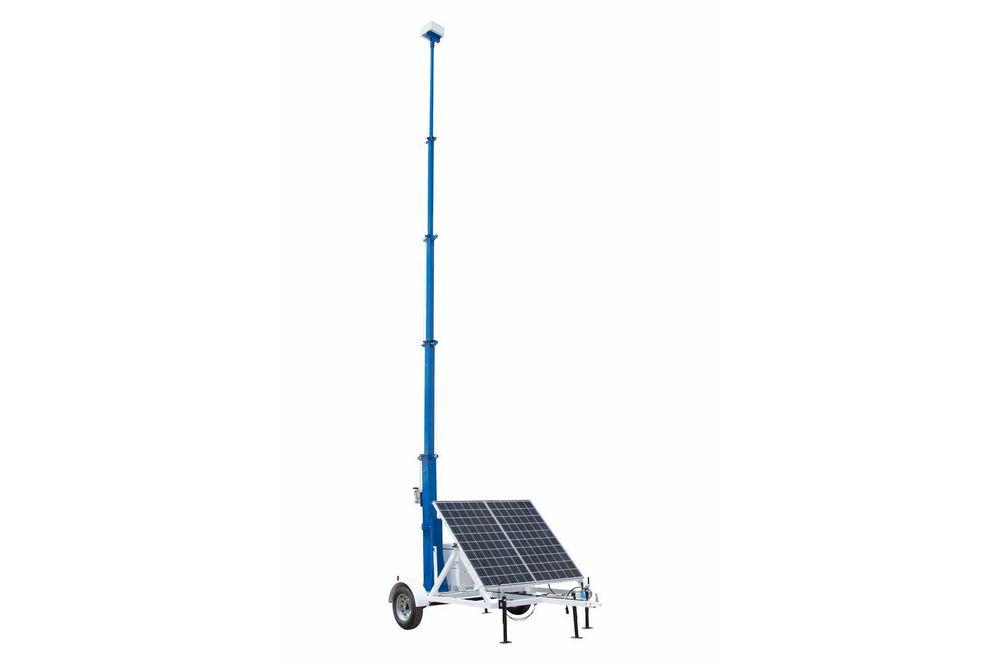

Made in the USA The Larson Electronics SPLT-.53K-LM30-1X6MP-2X8EIR-PW-TLR7 Portable Solar Infrared Light Tower w/ IP Camera provides a safe and effective way for operators to monitor locations from elevated positions between 13.5` to 30`. This solar security assembly features a telescoping tower that folds over for easy transportation, with a rotating boom that allows 360° rotation and a removable mast head for storage when not in use. A 6MP, infrared camera can be used to record images discreetly, which is supported by two infrared LED lamps that emit 850 nm of infrared light. Operators may store footage via a 1TB NVR. This unit features two 265 watt solar panels, a 400aH capacity battery bank with 200aH being usable and a 120V battery charger for powering the cells when sunlight is unavailable. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This trailer mounted infrared security light tower features a powerful IP camera that is capable of recording images at 6MP (24 fps). Using integrated infrared LEDs and two infrared lamps, the monitoring component can view objects up to 165 feet in the dark. The IP67-rated camera supports a built-in heater to ensure operation in cold weather. For advanced clarity, the unit provides auto focus functionality with a FOV of 94.5° (Wide) and 30.5° (Tele). The IP camera features H.264 OVC (Optimized Video Codec), which can reduce IP camera file sizes by 50 percent (or greater) and allows the camera to see more detail, while reducing bandwidth and storage requirements. This solar security assembly comes with a 1TB, 8-channel network video recorder. Installation only takes minutes via plug-and-play, which automatically detects, displays and configures system components. With multiple recording modes (Schedule, Continuous, Motion Detection and Event), users could capture hours of footage with ease. The remote configurable network recorder features a bit rate of 40Mbps incoming and 80Mbps outgoing at up to 60fps per channel. To maximize storage, the unit supports H.265, H.264, and H.264 OVC video compression. The network recorder is compatible with two-way audio streaming (camera dependent) and includes 9 ethernet ports (RJ-45 interface). During recording, the unit handles the following data: activity log, email notification, event log, event notification, video analytics and event search. This device offloads videos in MP4 format. Infrared Lamps: The SPLT-.53K-LM30-1X6MP-2X8EIR-PW-TLR7 features two infrared LED lamps that produces a 325` long by 70` wide light beam with a total of 2,880 lumens of infrared light. Eight, 3-watt Edison Edixeon® infrared emitters producing 180 lumens each (per lamp) are arranged in rows and paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. These infrared LED light bars are IP68 rated and waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. Both LED lamps emit an infrared wavelength of 850 nm.
Click Photo to Enlarge
Light Mast: This telescoping five stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy a reliable monitoring system in locations where it must be elevated to heights up to 30` for effective coverage. This security light mast can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 13.5` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap. The mast is extended to its full height using an included 1,000lb rated hand winch with 3/16" galvanized steel cable. Junction boxes are mounted at the top of the first stage and at the very top of the mast for equipment setup, connection, and deployment. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped infrared LED light fixtures. A half-moon shaped mounting plate on the top of the mast head provides a secure mounting platform for the NEMA 3R 12" x 12" x 6" junction box, where operatores can mount cameras, indicator lights, and route electrical cabling. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
Click Photo to Enlarge
Solar Panel Assembly: This unit is comprised of two 265-watt solar panels, generating a total maximum output of 0.53 KW. The panels are mounted to a stationary assembly. The panels are wired to the solar charger control box which manages the charging system. The two solar panels are mounted to a frame angled at 45° to capture the intensity of the sun for optimized light intake. A 120V battery charger can be used for powering the batteries when sunlight is unavailable. Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Trailer Assembly: The entire assembly is mounted to a 7.5` by 7`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. All trailer lighting complies with DOT/FMVSS regulations. Applications: Security, monitoring, live events, law enforcement, military, commercial, industrial facilities, outdoor surveillance, remote locations and more.
