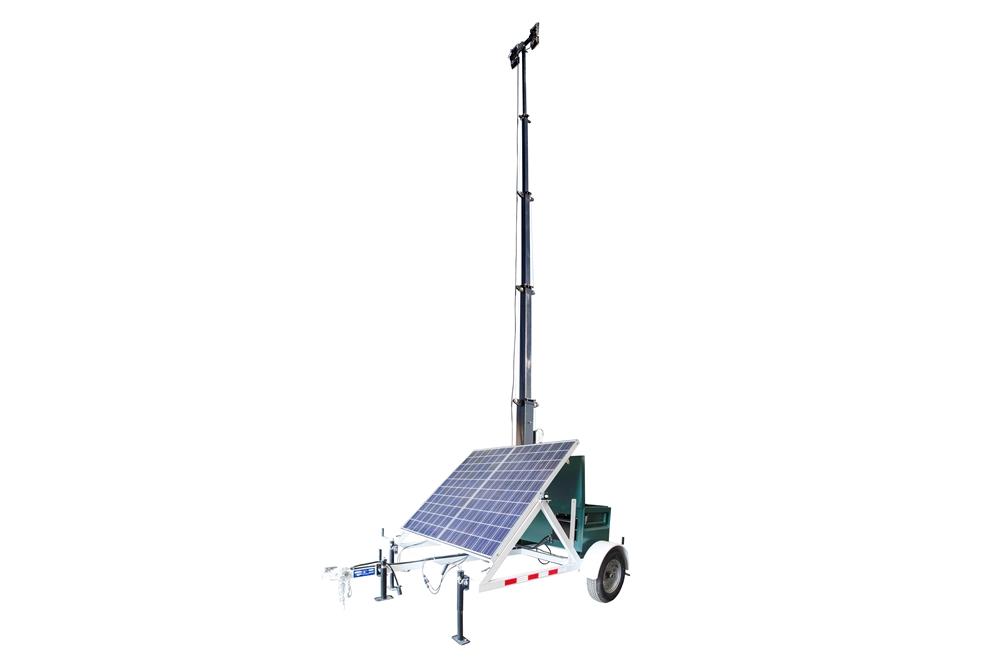

580W Solar Light Tower - 30' Light Tower - 7.5' Trailer - (4) 60W LED Lamps - 120V Battery Charger - Day/Night Sensor

LARSON ELECTRONICSSKU: PL3-SPLT-.53K-LM30-4XWP600E-BC-DNS-TLR7-120V
filler

Precio:
Precio de venta$42,428.00

Descripción

Specifications / Additional Information
SPLT-.53K-LM30-4XWP600E-BC-DNS-TLR7-120V Trailer Mounted 3-Stage Light Tower Quick Summary
Light Mast Specs 9` to 30` Light Mast
Tower Length: 9` to 30` Steel Construction
Mast Head Length: 44" Powder Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue (4) 1,000lb Outriggers
Operation: (1) 1,000lbs Hand Winch 125 mph Wind Resistance
Cable: 3/16" Galvanized Aircraft Cable Manual or Optional Electric Operation
  A-Frame for mounted (2) 265 Watt Solar Panels
Solar Specs Fully Solar, No Fuel Needed
Panes: (2) 265 Watt panels Waterproof/Vapor Proof Lamps
Method of Deployment: Fixed Mount 50,000+ Hour LED Life
System Voltage: 24 Volts Lamps ETL Approved for Wet Locations
Battery Bank: (4) 6V 200aH batteries IP68 Waterproof Lamps
Battery capacity: 200aH Total / 100aH Usable 120V Battery Charger

LED Lamp Specs
Lamp Type: CREE LED
Total Watts: 240 (60W per lamp)
Total Lumens: 21,600 (5400 per lamp)
Luminous Efficacy: 90 lm/w
LED Life Expectancy: 50,000+ hours
Color Temp: 5600K, 4000K, or 3000K
Color Rendering Index: 80
Beam Angle: 60° Vertical, 75° Horizontal
Sensor Type: Day/Night
Lighting Configuration: Flood Beam
Ambient Temp Range: -25°C to +60°
Lamp Housing Material: Cast Aluminum
Lamp Lens Material: Polycarbonate

Trailer Specs
Materials: Steel
Trailer Dimensions: 7.5`L` x 7`W trailer bed - 10.75` total length
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat
Axle: 3,500lb
Suspension: 3,500 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-600 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8`-L x 8`-W x 12`-H
Shipping Weight: +-600 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '
The Larson Electronics SPLT-.53K-LM30-4XWP600E-BC-DNS-TLR7-120V solar powered LED light tower provides a safe and effective way for operators to quickly deploy 240 watts of intense LED illumination to elevations up to thirty feet. This solar light plant features a telescoping light tower, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing the four LED light fixtures when not in use. This unit features two 265-watt solar panels and a 200 amp capacity battery bank. The entire assembly is mounted onto a 7.5` single axle trailer, allowing operators to transport this solar light tower from location to location. The SPLT-.53K-LM30-4XWP600E-BC-DNS-TLR7-120V includes a 120V battery charger that allows the unit to be charged when local power is available and a day/night sensor. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Solar Powered Light Tower: This solar light tower includes two solar panels, solar charging system, battery bank and manual crank up mast mounted on trailer with outriggers. This 0.53KW solar generator system replenishes amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system delivers 24 volts for lighting mounted atop the 30` telescoping light mast. Light Mast: This telescoping five stage steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy the four LED light heads in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 13.5` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap. The mast is extended to its full height using an included 1,000lb rated hand winch with 3/16" galvanized steel cable. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped LED light fixtures. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.

44" Mast Head for mounting lights and equipment
Click Image to Enlarge
LED Light Fixtures: This solar light plant is equipped with four of Larson Electronics` LEDWP-600E high output LED light fixtures. The LEDWP-600E consists of six 10 watt LEDs housed within a waterproof aluminum housing that is powder coated for added durability and resistance to corrosion. The housing incorporates integral cooling fins for efficient heat dissipation and increased LED longevity. The LED lamp assembly is protected by a shatterproof polycarbonate lens which is secured to the housing with a waterproof seal. Mounting hardware for the LEDWP-600E consists of a stainless steel coated bracket and stainless steel screws to provide secure mounting and resistance to rust and corrosion. The mounting assembly provides for 360/180 degrees of rotation and tilt to allow the user to position the unit as desired once mounted. LED Technology: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Lamp Control: Each lamp can be powered on individually, allowing operators to power one lamp or all four lamps at a single time to fit the required illumination requirements. The tower is equipped with a dust to dawn sensor to turn the lights on when ambient lux levels drop below a set level. An internal 3-way switch allows operators to power the lights on, off, or on via the day/night sensor. When set to power on via the day/night sensor, the lights will automatically turn on whenever ambient light drop belows a preset level, detected by the equipped photocell. With LED technology, there is no warm up period, providing instant high powered illumination. This means that the lights instantly power up and illuminate the secured area when activated.
Images Below Show Light Tower Lowered and Raised to 30ft.
Click Images to Enlarge
Lamps Off (Ambient Light) (4) 60 Watt LED Lamps Turned On Illuminating Wall 200ft. Away (20,000+sq.ft. area)
Area from Above
Solar Panel Assembly: This unit is comprised of two 265-watt solar panels, generating a total maximum output of 0.53 KW. The panels are mounted to a stationary assembly. The panels are wired to the solar charger control box which manages the charging system. The two solar panels are mounted to a frame angled at 45° to capture the intensity of the sun for optimized light intake. Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Battery Charger: The SPLT-.53K-LM30-4XWP600E-BC-DNS-TLR7-120V is equipped with a 120V battery charger that allows the light tower to be charged when local power is available. Trailer Assembly: The entire assembly is mounted to a 7.5` by 7`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. All trailer lighting complies with DOT/FMVSS regulations.
