45' Portable Solar Security Tower - 7.5' Trailer - 12V 200aH Battery Bank - (4) Cameras - 2TB NVR

45' Portable Solar Security Tower - 7.5' Trailer - 12V 200aH Battery Bank - (4) Cameras - 2TB NVR

$52,178.00 CAD
$52,178.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
SPLT-.53K-LM45-2XN3B-PW-TLR7-4X4MP-2TB Trailer Mounted Solar Generator Security Mast Quick Summary
Mast Specs 13.5` to 45` Mast
Tower Length: 13.5` to 45` Steel Construction
Mast Head Length: 44" Powder Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue (4) 1,000lb Outriggers
Operation: (1) 1,000lbs Hand Winch 125 mph Wind Resistance
Mast Cable: 3/16" Galvanized Aircraft Cable Manual or Optional Electric Operation
Cable Sheath: Sealtight Coiled Tubing A-Frame for mounted (2) 265 Watt Solar Panels
Fully Solar, No Fuel Needed
Solar Specs Low Noise Operation
Panels: (2) 265 Watt panels IP66 Weather-rated Cameras
Method of Deployment: Fixed Mount 65` IR LEDs Range
System Voltage: 12 Volts Sun Shield
Battery Bank: (2) 12V 8D 250aH batteries Alarm
Battery Capacity: 500aH Total / 250aH Usable CE, FCC, RoHS, UL Listed NVR
  Embedded Linux Operating System
Network Camera Specs CAT5E Networking Cable
Unit Type: (4) Security Camera
Camera Dimensions: 2.625” H x 6.0” D
Total Weight: 4.4 lbs
Total Watts: 42W (Maximum w/ IR On)
Voltage: 12V DC
PoE: 802.3af
Image Sensor:  CMOS
Connectors: Ethernet, Power
Effective Pixels: 2688(H) * 1520(V)
Min. Illumination: 0.01 Lux (F2.0, AGC On), 0 Lux w/ IR
Shutter Speed: 1/3 ~ 1/10,000
Lens: 4mm Fixed, Manual Focus Lens
Angle of View: 83° (Horizontal)
Day/Night: ICR
Video Framerate: 20 fps @ 2688 x 1520
Language: English
Ambient Temperature Range: -22°F ~ 140°F
Housing Materials: Aluminum w/ Plastic Sun Shield
Mounting: Tower

NVR Specs
Device Type: Network Video Recorder
Storage Capacity: 2 TB SATA Hard Drive
Channels: 8
Camera Resolution Support: Up to 8MP
Installation Type: Plug and Play
Incoming Bit Rate: 40Mbps
Outgoing Bit Rate: 80Mbps
FPS: 60fps Per Channel
Compression Format: H.265, H.264, H.264 OVC
Recording Modes: Continuous, Schedule, Event, Motion Detection, VCA
Export Format: MP4
Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear)
Two-way Audio Input: 1-ch, RCA
Power Over Ethernet: = 120W, Supported Standards- 802.3af and 802.3at
Alarm Input: 4x (Rear Panel), Camera Dependent
Alarm Output: 1x (Rear Panel), Camera Dependent
Protocols: IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, ONVIF, HTTP Multipart
Power Requirements: 100 ~ 240V AC
Housing Material: Aluminum
Operating Temp: 14°F ~ 131°F
Networking Cable: CAT5E

Trailer Specs
Materials: Steel
Trailer Dimensions: 7.5`L` x 7`W trailer bed- 10.75 total length
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat
Axle: 3,500lb
Suspension: 3,500 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-600 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8`-L x 8`-W x 12`-H
Shipping Weight: +-600 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '

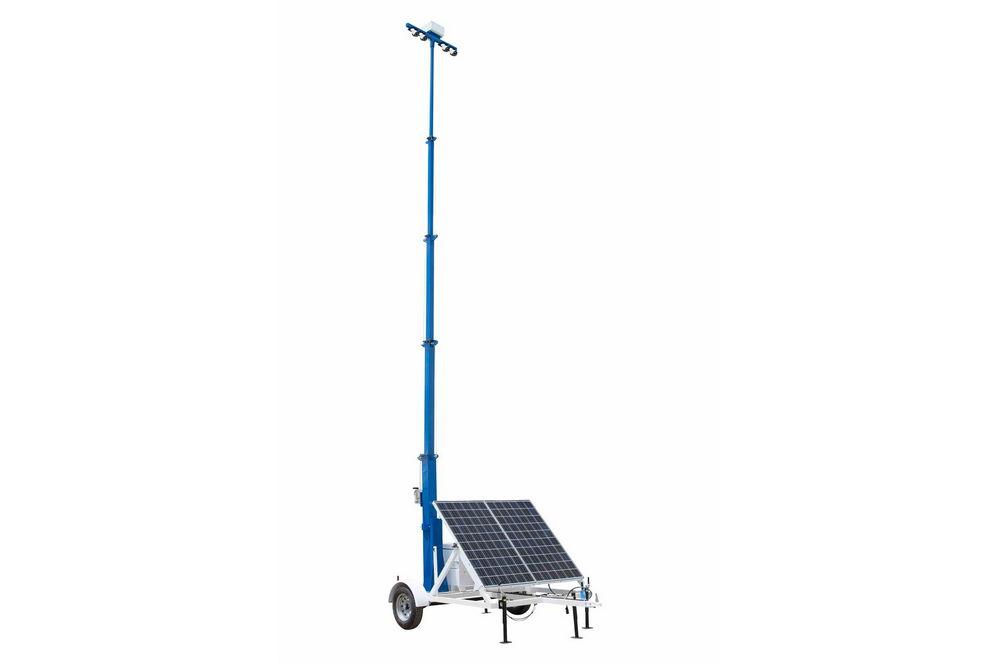

Made in the USA The Larson Electronics SPLT-.53K-LM45-2XN3B-PW-TLR7-4X4MP-2TB solar powered security tower provides a safe and effective way for operators to quickly deploy cameras, security devices, and other equipment to elevations up to 45 feet. This solar security plant features a telescoping tower that folds over for easy transportation, a rotating boom that allows for 360° of rotation and a removable mast head for storage when not in use. This low-noise unit features four, 4-MP network cameras, two, 265-watt solar panels and a 400aH capacity battery bank with 200aH being usable. A 2TB NVR can be found at the base of the mast. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This trailer mounted security mast with solar generator has a 12" x 12" x 6" junction box and four, 4-MP network cameras mounted at the top of the mast. The junction box supports the security cameras for a 360° field of view and can be used with other electrical devices for each operator`s specific needs, such as small sensors and monitoring devices. The junction box is mounted to the mast head via a half-moon shaped mounting plate. External sealtite coiled tubing runs around the mast to allow operators to run Ethernet cable to the junction box at the top of the mast. The tubing connects the junction box and base solar component box together. The entire assembly is mounted onto a 7.5` single axle trailer, allowing operators to transport this portable solar tower from location to location. Operators may access a 2TB NVR for network configurations. The system utilizes CAT5E cable for networking. Network Cameras: The security cameras provide operators with crisp, high resolution images in industrial work sites. The lightweight units operate on 12V DC, with optional PoE (802.3af). A 4mm fixed, manual-focus wide angle lens with 83° field of view offers comprehensive monitoring in large areas. Integrated long-range IR LEDs enable the camera to see distances up to 65` in dark locations. True WDR and 3D-DNR help boost image quality during low-light conditions. Operators can setup and integrate alarms to serve as notifications with the unit. The 4MP cameras each measure a compact 2.625” H x 6.0” D. The cutting-edge security devices are constructed of aluminum for reliable operation at the industrial facility. A plastic sun shield protects the units from persistent UV rays during daytime monitoring. The IP66-rated weatherproof units resist the negative effects of non-corrosive liquids. The IP camera are capable of operating in temperatures between -22°F - 140°F. NVR: The solar tower contains an 8-channel NVR that can be used with the network cameras. Setup only takes minutes via plug-and-play, which automatically detects, displays and configures system components. With multiple recording modes (Schedule, Continuous, Motion Detection and Event) and 2TB of storage, users could capture hours of footage with ease. The remote configurable network recorder features a bit rate of 40Mbps incoming and 80Mbps outgoing at up to 60fps per channel. To maximize storage, the unit supports H.265, H.264, and H.264 OVC video compression. The network recorder is compatible with two-way audio streaming (camera dependent) and includes 9 ethernet ports (RJ-45 interface). During recording, the unit handles the following data: activity log, email notification, event log, event notification, video analytics and event search. This device offloads videos in MP4 format. Cameras hooked up to the NVR-POE-8CH-2TB may use power directly via PoE (802.3af / 802.3at) during operation. The NVR runs on 100 - 240VAC of power and is suitable for use in temperatures between 14°F - 131°F. NVR Inputs: (1) RCA, 4 Sensor Inputs NVR Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (front), (1) USB 3.0 (rear)
Click Photo to Enlarge
Solar Powered Security Tower: This continuous-operation solar security tower includes two 265 watt solar panels, solar charging system, battery bank and manual crank up mast mounted on trailer with outriggers. This 0.53KW solar generator system replenishes amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system delivers 12 volts for equipment mounted atop the 45` telescoping mast. Mast: This telescoping five stage steel mast from Larson Electronics is designed to allow operators to quickly and safely deploy a variety of equipment in locations where it must be elevated to heights up to 45` for effective coverage. This mast can be extended to 45` above the trailer floor for maximum area coverage, and collapsed to 13.5` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap.  The mast is extended to its full height using an included 1,000lb rated hand winch with 3/16" galvanized steel cable. Junction boxes are mounted at the top of the first stage and at the very top of the mast for equipment setup, connection, and deployment. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped cameras. A half-moon shaped mounting plate on the top of the mast head provides a secure mounting platform for the NEMA 3R 12" x 12" x 6" junction box, where operators can mount cameras, indicator lights, and route electrical cabling. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
Click Photo to Enlarge
Solar Panel Assembly: This unit is comprised of two 265-watt solar panels, generating a total maximum output of 0.53 KW. The panels are mounted to a stationary assembly. The panels are wired to the solar charger control box which manages the charging system. The two solar panels are mounted to a frame angled at 45° to capture the intensity of the sun for optimized light intake. Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Trailer Assembly: The entire assembly is mounted to a 7.5` by 7`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. All trailer lighting complies with DOT/FMVSS regulations.
