1 kVA Outdoor Rated Transformer - 120/240VAC Input - 24 Volt Output - General Area Cord Cap
1 kVA Outdoor Rated Transformer - 120/240VAC Input - 24 Volt Output - General Area Cord Cap
| TX-1000-WM-2XLV Power Transformer |
| Line In:120/240V AC @ 50/60Hz | |
| Line Out: 12V DC or 24V DC | |
| KVA: 1 | |
| Rating: NEMA 3R Enclosure | |
| Dimensions: 18.125"H x 12"W x 9.373"D | |
| Mounting: Surface Mount Flange Brackets | |
| Line In Wiring: 10` 16/3 SOOW Cable w/ General Area Cord Cap | |
| Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail | |
| Line Out Wiring: 10` 10/3 SOOW Cable to Jbox - (2) 3` Whips from Jbox w/ Blunt Cut Ends | |
| Line Out Termination: Blunt Cut Ends |
Made in the USA

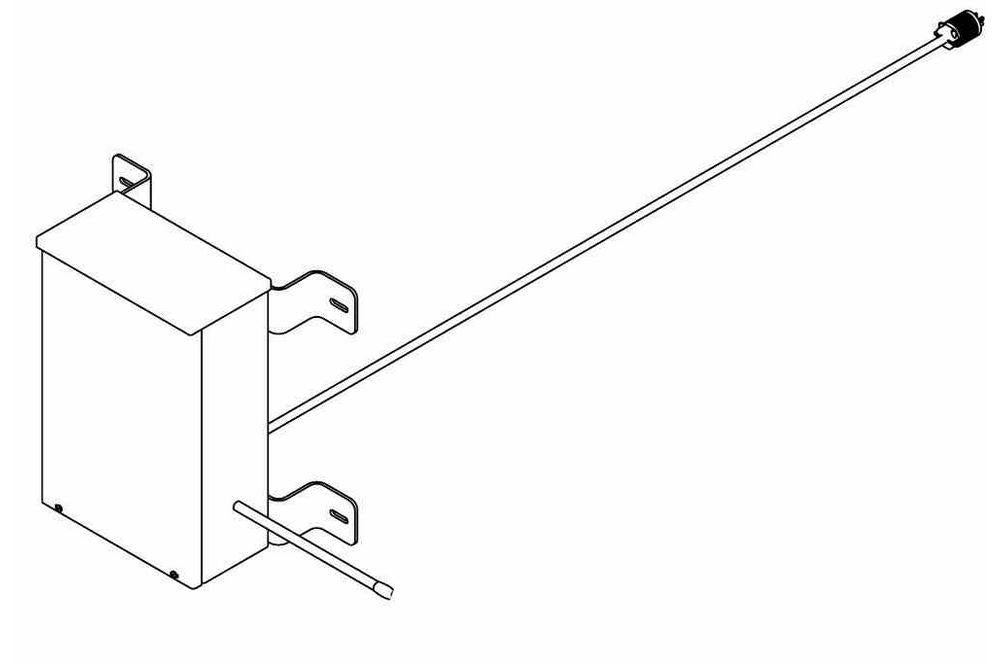

The Larson Electronics TX-1000-WM-2XLV Wall Mount 1kVA power transformer converts 110-120/220-240V AC at 50/60hz to 12 or 24V DC and is ideal for powering 12 or 24 volt based lights and equipment.
This 1kVA, coil based power transformer accepts 120-240V AC electrical current and provides 12 volts at 83 amps or 24 volts at 41 amps via a 10` SOOW cord depending upon the chosen configuration. The output cord is terminated with blunt cut ends to allow operators to wire their own connectors. No amphenol connectors are included with this transformer. The transformer in this unit is encased within a weatherproof NEMA 3R rated enclosure and produces minimal interference with the wireless radio receivers often found in remote controlled lighting equipment such as Golight wireless remote controlled spotlights.
The primary input on this unit accepts either 120 or 240V AC at 50/60 Hz depending upon configuration, and is connected through a 10` SOOW cord terminated in a choice of general area cord cap. Output is provided by 10` 10/3 SOOW cable to a waterproof junction box. The junction box has two 3` whips terminated in blunt cut ends, providing 41.5 amps at 12V DC or 20.5 amps at 24V DC. This unit is preconfigured for specific current input and output before shipping. Please select your desired current voltages from the drop down boxes below when ordering.
|
|||||||||||||||
|  | |||||||||||||||
