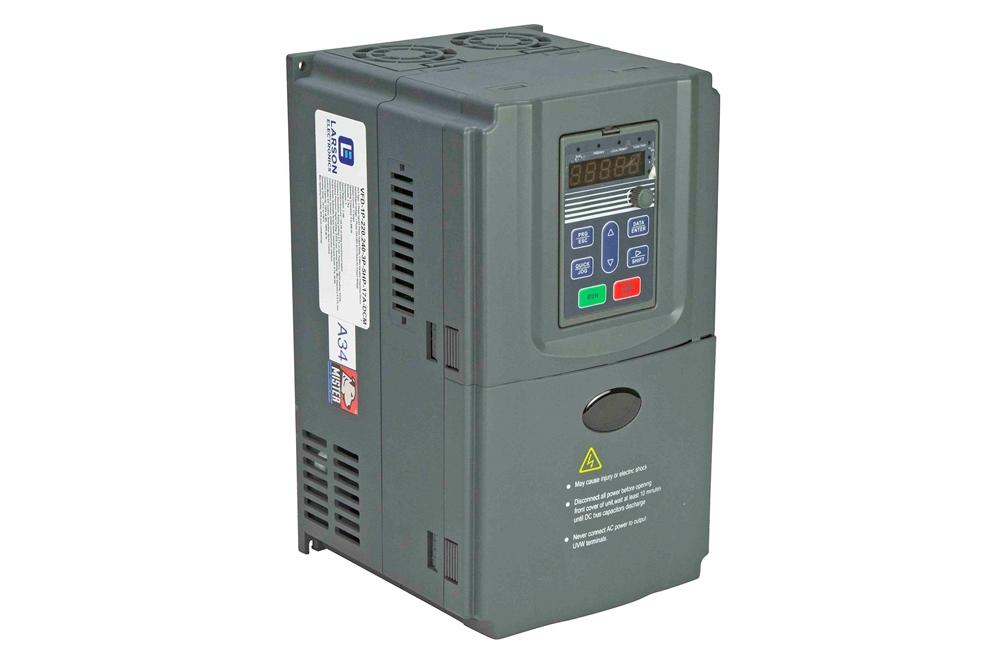

5HP Variable Frequency Device - 220-240V AC 1PH Input/Output - 23 Amps - NEMA 12

LARSON ELECTRONICSSKU: PL3-VFD-1P-220.240-5HP-23A-DCM
filler

Precio:
Precio de venta$2,486.00

Descripción

Specifications / Additional Information
VFD-1P-220.240-5HP-23A-DCM Variable Frequency Device Features/Ratings
Unit Type: Variable Frequency Device Automatic Voltage Regulation
Dimensions: 12.36" x 6.54" x 6.69" LED Display
Weight: 30 lbs
Input/Output Voltage: 220-240V AC 1PH
Output Current: 23 Amps
Operating Frequency: 0 to 3000 Hz
HP: 5
Inputs: 7 on-off programmable digital, 1 high-speed pulse, 2 programmable analog
Outputs: 1 programmable open collector, 1 analog (open collector or high-speed pulse), 2 relay, 2 analog
Analog Input/Output: 2 Input (0~10V or 0/4~20mA), 2 Output (0/4~20mA or 0~10V)
Operating Temp: –10°C to +40°C
Materials: -
Mounting: Surface
Color: Gray
' Product Overview '
Made in the USA The Larson Electronics VFD-1P-220.240-5HP-23A-DCM Variable Frequency Drive is suitable for improving AC motor performance in industrial operations. This fan-cooled unit features a single-phase 220-240V AC input/output voltage compatability. This device supports seven on-off programmable digital inputs, one high-speed pulse input and two programmable analog inputs, as well as one programmable open collector output, one analog output (open collector or high-speed pulse), two relay outputs and two analog outputs. The device also features a total of four operating modes: Keypad control, Terminal control, Serial communication control, and Operation Command Mode for digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. The VFD-1P-220.240-5HP-23A-DCM offers accurate AC motor control in industrial facilities. This unit is compatible with single-phase 220-240V AC input/output voltage. Designed for steady speed error, fast torque rise and protection from resonance vibrations, the device provides an output current of 23 amps and an operating frequency range of 0 to 3000 Hz. The VFD-1P-220.240-5HP-23A-DCM is designed for indoor applications and operating temperatures ranging between –10°C to +40°C. Operators may mount the variable frequency drive on compatible surfaces. This device measures 12.36" x 6.54" x 6.69" and weighs 30 lbs. Applications: Speed control of AC motors, industrial machines, large compressors, energy savings and more.
